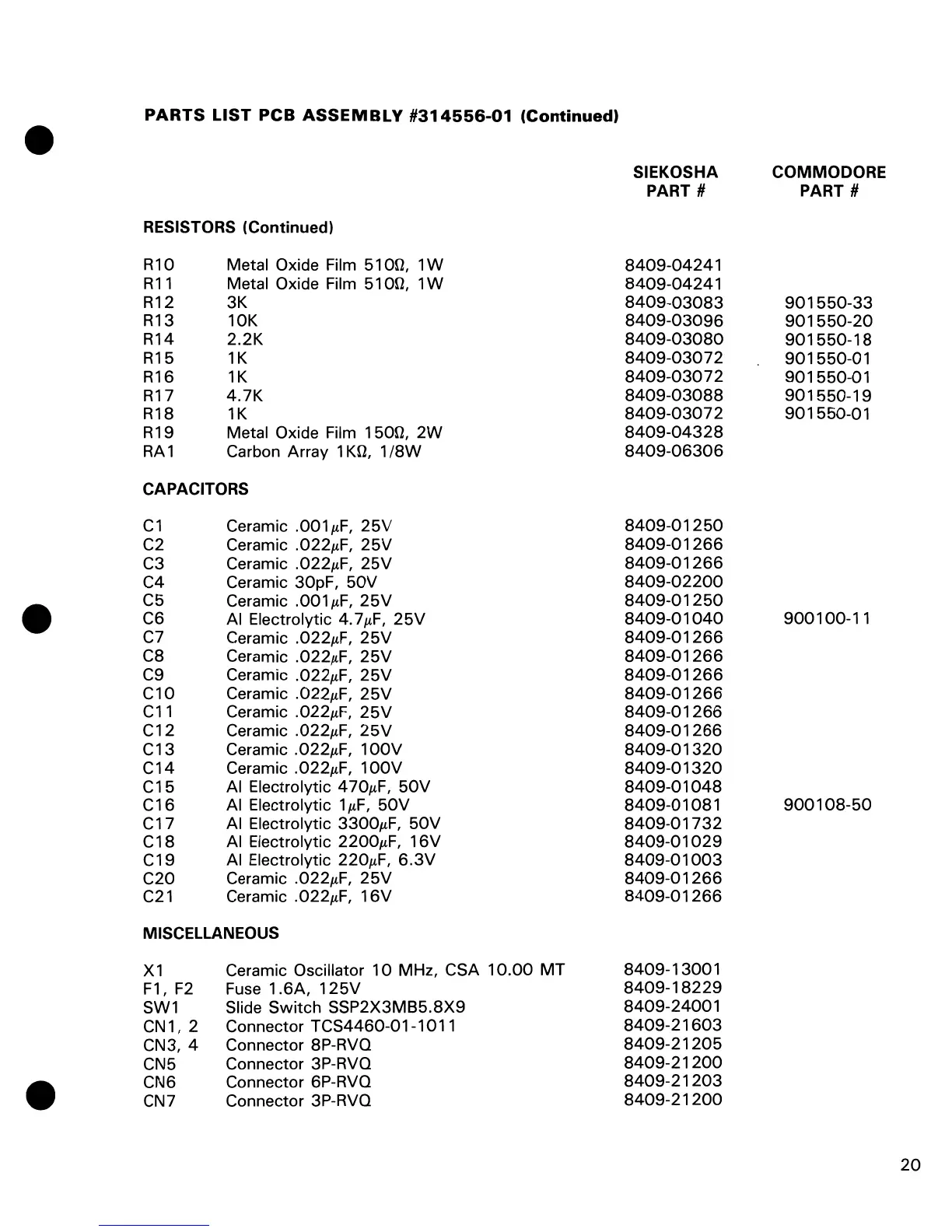

PARTS LIST PCB ASSEMBLY #314556-01 (Continued)
SIEKOSHA COMMODORE
PART
# PART #
RESISTORS (Continued)
R10
Metal Oxide Film
51 on, 1 W 8409-04241
R11
Metal Oxide Film 51 on, 1 W
8409-04241
R12 3K 8409-03083 901550-33
R13
10K
8409-03096 901550-20
R14
2.2K 8409-03080 901550-18
R15
1K
8409-03072
901550-01
R16 1K 8409-03072 901550-01
R17 4.7K 8409-03088 901550-19
R18
1K
8409-03072
901550-01
R19 Metal Oxide Film
150n, 2W 8409-04328
RA1
Carbon Array 1 Kn, 1/8W
8409-06306
CAPACITORS
C1
Ceramic .001 jlF, 25V
8409-01250
C2 Ceramic .022jlF, 25V 8409-01266
C3 Ceramic .022jlF, 25V
8409-01266
C4
Ceramic 30pF,
50V
8409-02200
C5
Ceramic .001jlF,
25V 8409-01250
C6 AI Electrolytic 4.7jlF, 25V
8409-01040 900100-11
C7
Ceramic .022jlF,
25V
8409-01266
C8
Ceramic .022jlF,
25V 8409-01266
C9
Ceramic .022jlF,
25V 8409-01266
C10 Ceramic .022jlF, 25V
8409-01266
C11
Ceramic .022jlF, 25V
8409-01266
C12 Ceramic .022jlF, 25V
8409-01266
C13 Ceramic .022jlF, 100V
8409-01320
C14 Ceramic .022jlF, 100V
8409-01320
C15 AI Electrolytic 470jlF, 50V
8409-01048
C16 AI Electrolytic 1 jlF, 50V
8409-01081 900108-50
C17 AI Electrolytic 3300jlF, 50V
8409-01732
C18
AI Electrolytic 2200jlF, 16V
8409-01029
C19
AI Electrolytic 220jlF, 6.3V
8409-01003
C20
Ceramic .022jlF,
25V
8409-01266
C21 Ceramic .022jlF, 16V
8409-01266
MISCELLANEOUS
X1
Ceramic Oscillator 10 MHz, CSA 10.00 MT
8409-13001
F1, F2
Fuse 1.6A, 125V
8409-18229
SW1 Slide Switch SSP2X3MB5.8X9
8409-24001
CN1,2
Connector TCS4460-0 1-1011
8409-21603
CN3, 4
Connector 8P-RVQ
8409-21205
CN5
Connector 3P-RVQ
8409-21200
CN6 Connector 6P-RVQ
8409-21203
CN7
Connector 3P-RVQ
8409-21200
