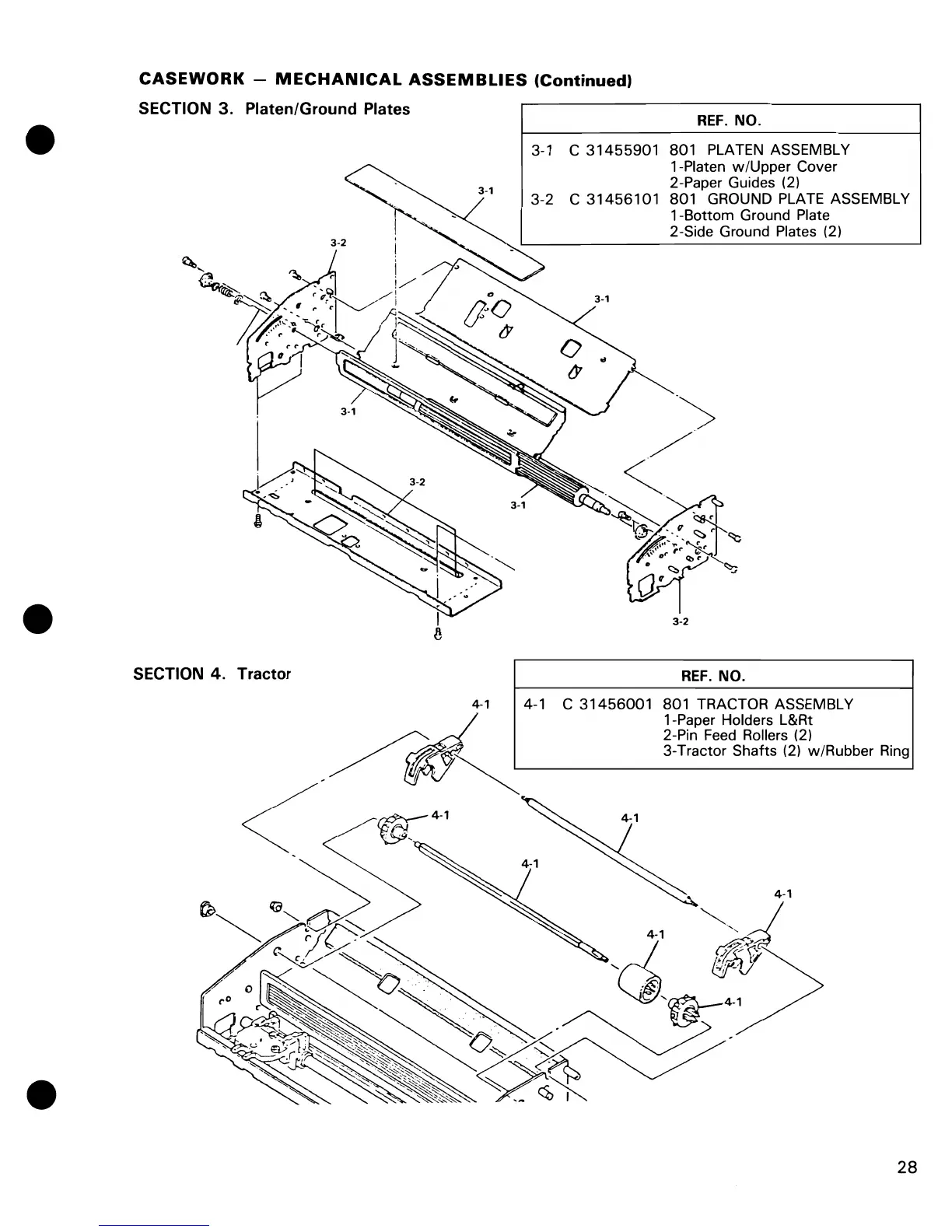

CASEWORK - MECHANICAL ASSEMBLIES (Continued)
SECTION 3. Platen/Ground Plates
REF. NO.
3-1
SECTION 4. Tractor
3-1 C31455901 801 PLATEN ASSEMBLY
1-Platen
w/Upper Cover
2-Paper Guides (2)
3-2 C
31456101 801 GROUND PLATE ASSEMBLY
1-Bottom Ground Plate
2-Side Ground Plates (2)
3-1
3-2
REF. NO.
4-1 C
31456001 801 TRACTOR ASSEMBLY
1-Paper Holders L&Rt
2-Pin Feed Rollers (2)
3-Tractor Shafts
(2) w/Rubber Ring
4-1
28
