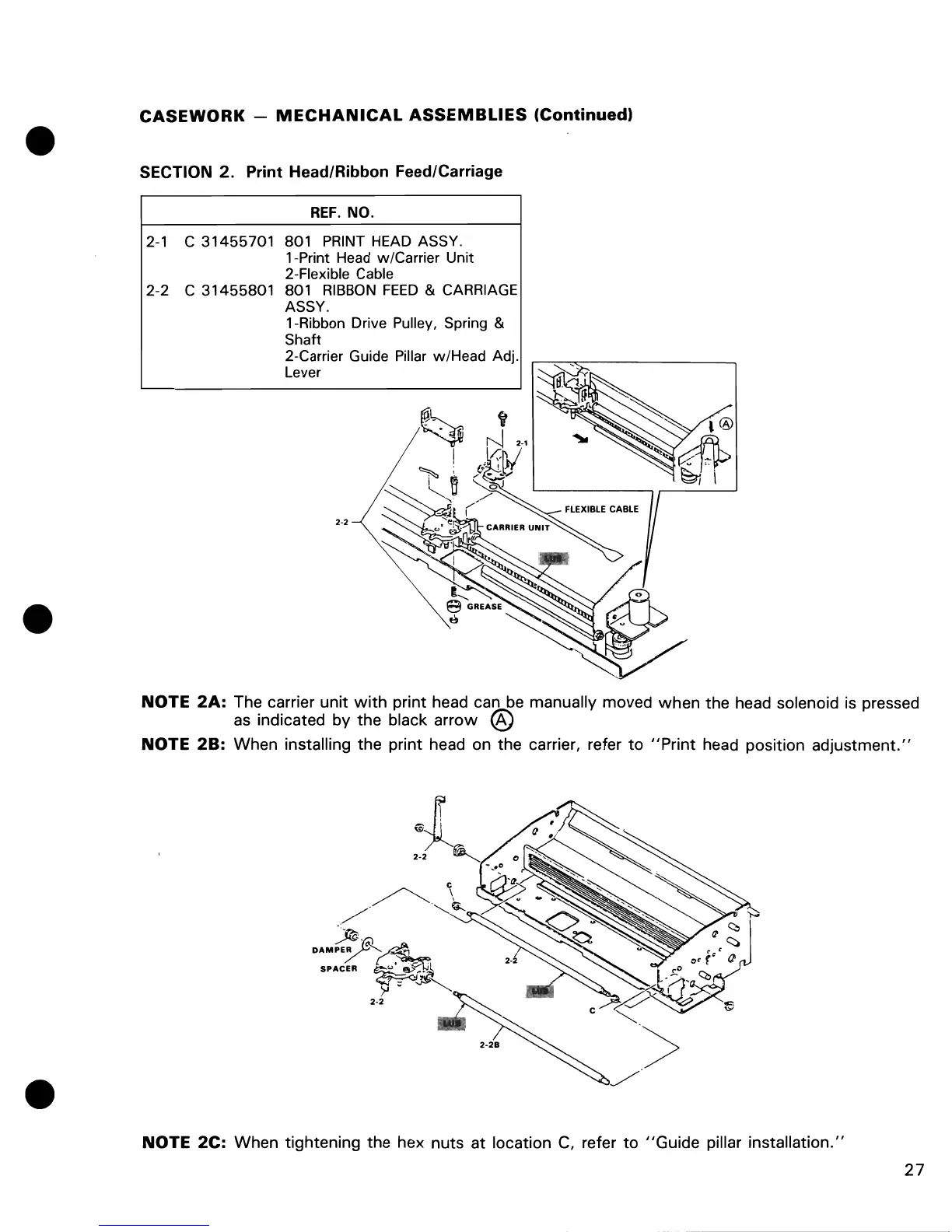

CASEWORK - MECHANICAL ASSEMBLIES (Continued)
SECTION 2. Print Head/Ribbon Feed/Carriage
REF. NO.
2-1 C 31455701 801 PRINT HEAD ASSY.
1-Print Head w/Carrier Unit
2-Flexible Cable
2-2 C 31455801 801 RIBBON FEED & CARRIAGE
ASSY.
1-Ribbon Drive Pulley, Spring &
Shaft
2-Carrier Guide Pillar w/Head Adj.
Lever
2·2
NOTE 2A: The carrier unit with print head can be manually moved when the head solenoid is pressed
as indicated by the black arrow ®
NOTE 2B: When installing the print head on the carrier, refer to "Print head position adjustment."
c
.~.",~
;;;
DAMPE~~
SPACER ~."'';'::; i-,il
1i;;~~
2-2
NOTE 2C: When tightening the hex nuts at location C, refer to "Guide pillar installation."
27
