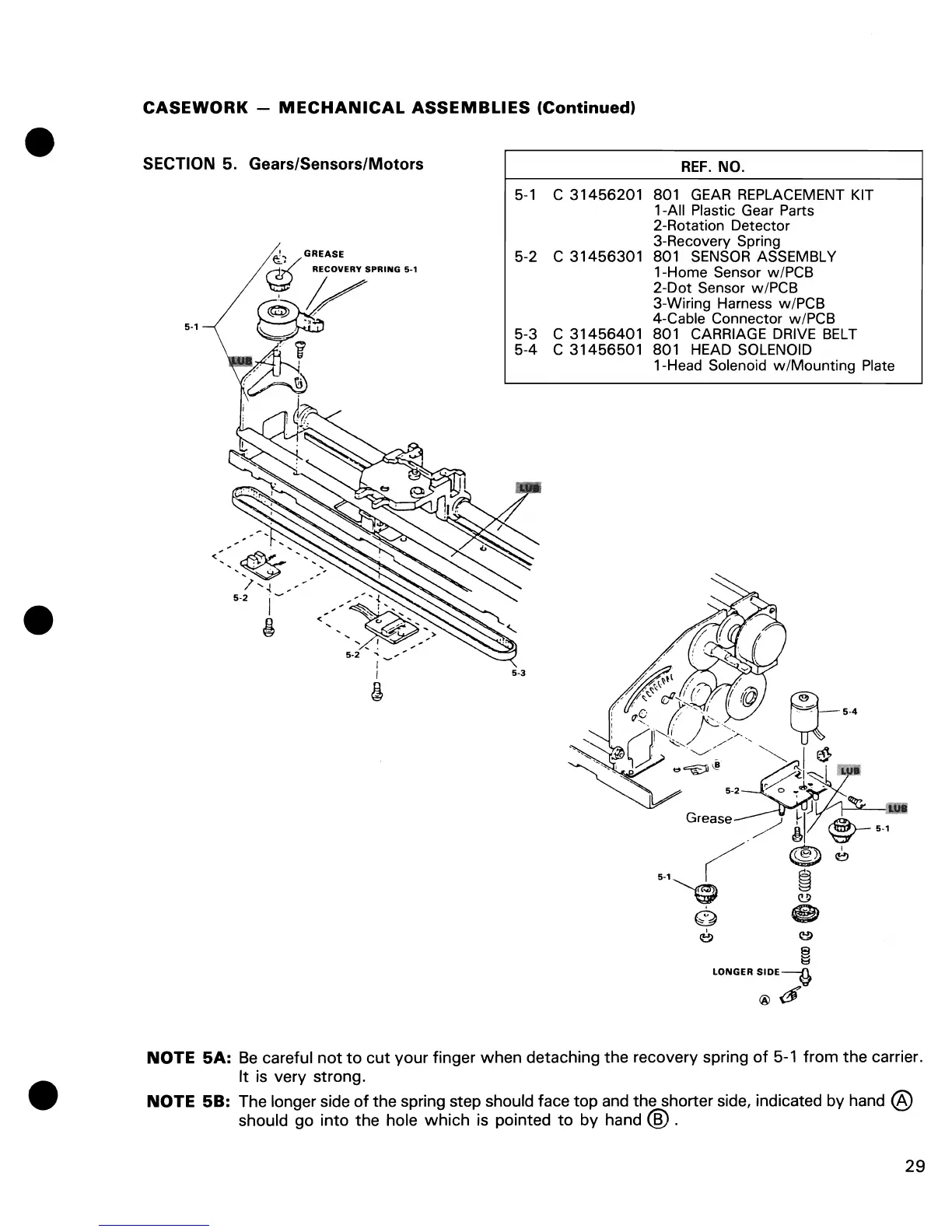

CASEWORK - MECHANICAL ASSEMBLIES (Continued)
SECTION
5. Gears/Sensors/Motors
5-1
~~ GREASE
~ RECOVERY SPRING 5-1
~(/
~
,
I
I
a
REF. NO.
5-1 C 31456201 801 GEAR REPLACEMENT KIT
1-AII Plastic Gear Parts
2-Rotation Detector
3-Recovery Spring
5-2 C 31456301 801
SENSOR ASSEMBLY
1-Home Sensor w/PCB
2-Dot Sensor w/PCB
3-Wiring Harness w/PCB
4-Cable Connector w/PCB
5-3 C 31456401 801 CARRIAGE
DRIVE BELT
5-4 C 31456501 801 HEAD SOLENOID
1-Head Solenoid w/Mounting Plate
5-3
@
~
LONGER SIDE~
®&'
NOTE 5A: Be careful not to cut your finger when detaching the recovery spring of 5-1 from the carrier.
It is very strong.
NOTE 5B: The longer side of the spring step should face top and the shorter side, indicated by hand ®
should go into the hole which is pointed to by hand @ .
