M0201ANC_uc CommScope Era
™
Fiber Low Power Carrier Access Point Installation Guide
© June 2019 CommScope, Inc. Page 59
Connect the Cables to the Fiber CAP L
Connect the Passive RF Antenna
The following information regarding antenna mapping and is relevant to all Fiber CAP Ls.
• For Non-MIMO bands, there is no channel mapping option for the transceive
r/antenna port. The
transceiver/antenna port relationship is fixed in hardware.
• For MIMO bands, the Era GUI maps MIMO channels according to their AP designation:
– AP0 to antenna port ANT 1
– AP1 to antenna port ANT 2.
• When using SISO channels on a CAP L that supp
orts MIMO, the system will automatically balance the
number of channels between the two antenna ports, where the first SISO channel is mapped to ANT 1, the
second SISO channel is mapped to ANT 2, an
d so on.

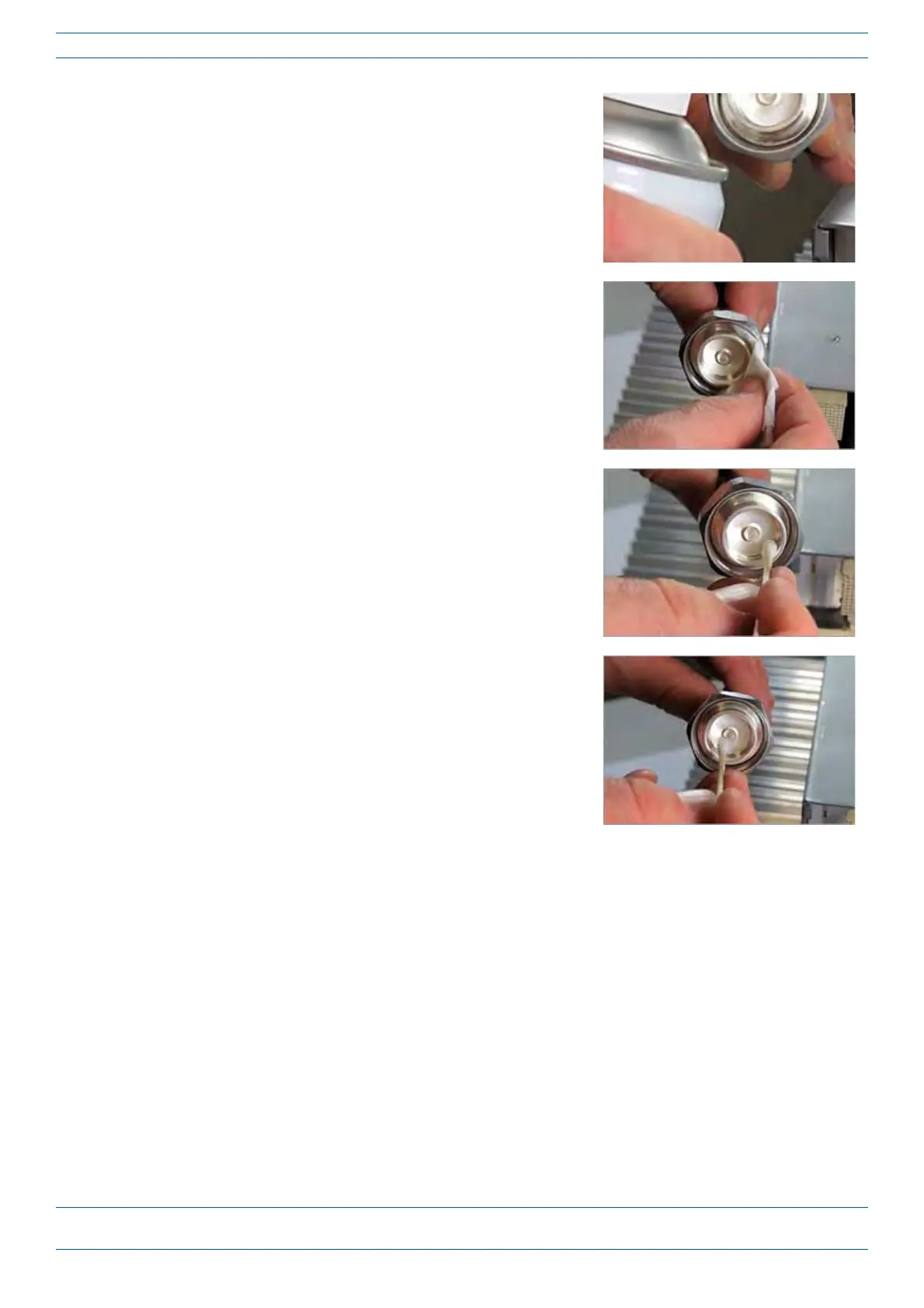

9 Use compressed air to remove metal chips and small particles
from the mating and inner surfaces of the connector.
10 Use a lint-free wipe drenched with isopropyl alcohol to clean the
winding area.
11 Use a cotton bud drenched with isopropyl alcohol to clean the
inside mating surface of the inner ring.
12 Use a cotton bud drenched with isopropyl alcohol to clean the
outside surface of the center pin.
