8. Disconnect the touch button cable from the touch button
(Figure 5-6).
NOTE: The touch button cable is included in the Miscellaneous Plastics
Kit.
Touch Button Cable
Spare Part Number Information
Miscellaneous Plastics Kit,
includes:
159536-001
Switch cover (2)
Hinge cover
Real time clock (RTC) battery
Touch button cable
Front shield
Diskette drive bezel
Hard drive cover
Mini PCI slot cover
RJ-11 modem cover
RJ-45 LAN cover
Computer feet
Display screw covers
TV out connector cover
PC Card space saver
Diskette drive space saver
CD-ROM drive space saver
Infrared lens

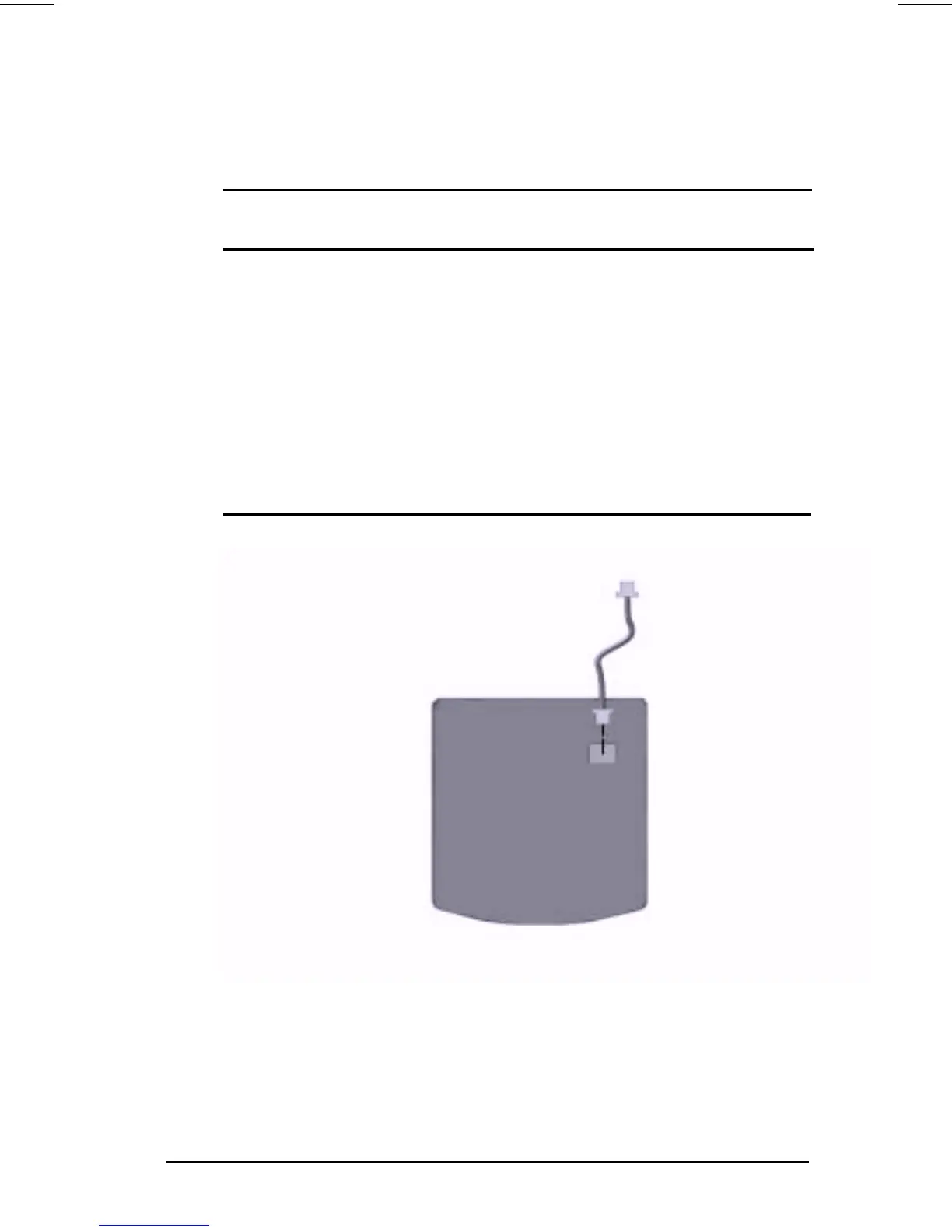

Figure 5-6. Disconnecting the Touch Button Cable
Reverse the removal procedure described above to replace the
touch button.
