5-22 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
5.11 LED Board
LED Board
Spare Part Number Information
LED board
used with all config. codes except those beginning
with FL5, FL6, FM, FV, FW, and JF.
used with all config. codes beginning with FL5,
FL6, FM, FV, FW, and JF.
159539-001
201058-001
Removing the LED Board
1. Prepare the computer for disassembly (Section 5.3)
2. Remove the switch cover (Section 5.9).
3. Disconnect the display ground cables (Section 5.9) and RTC
battery cable (Section 5.10) from the LED board.
4. Remove the screw
1
that secures the LED board to the system
board (Figure 5-17).
5. Lift up on the right side of the LED board
2
to disconnect it from
the system board.

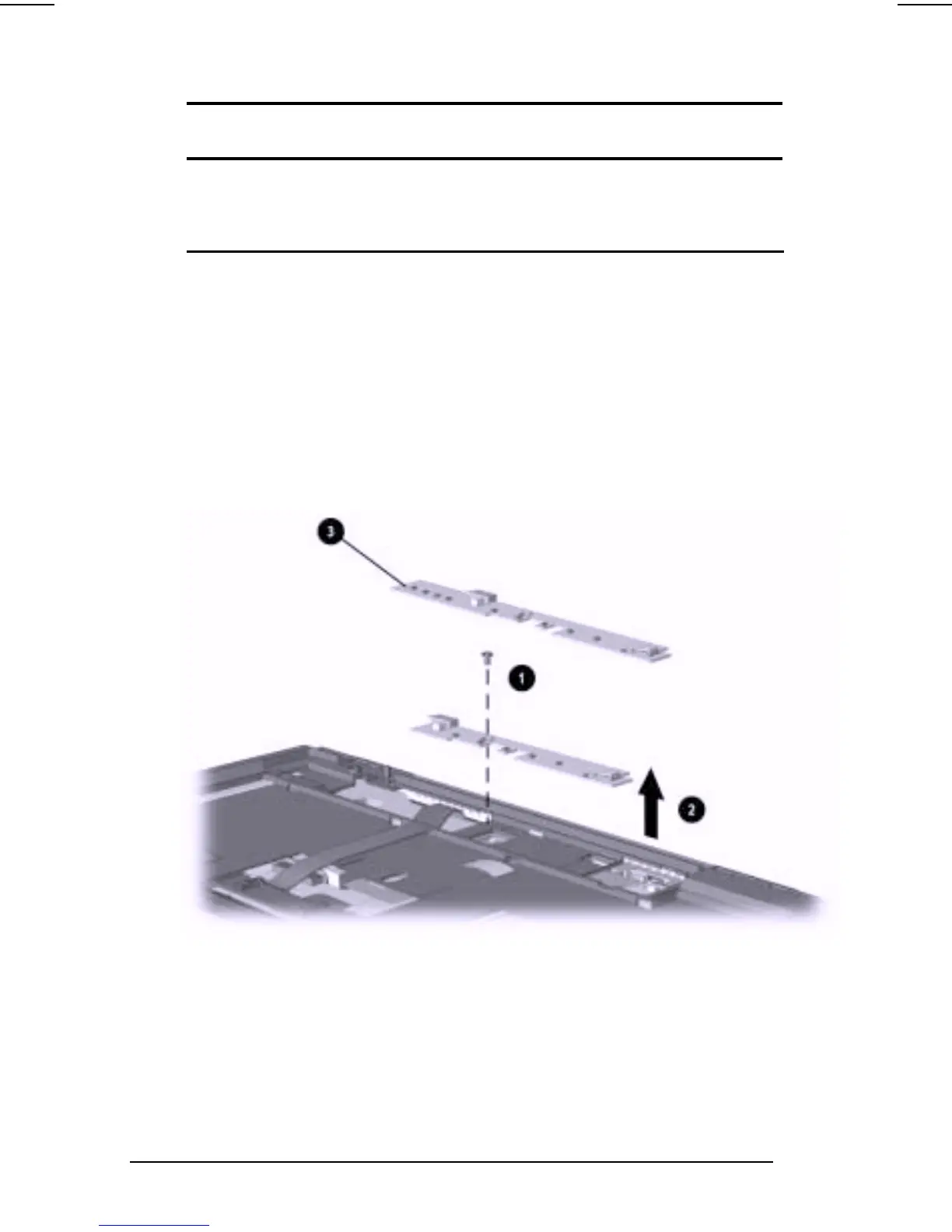

Figure 5-17. Removing the LED Board
NOTE: There are two LED boards used on the Compaq Armada E500
Series of Personal Computers. The LED board that contains the Easy
Access buttons
3
is not used with all computer models. Refer to the
LED board spare part number information at the top of this page to
determine which models use this LED board.
6. Remove the LED board.
Reverse the removal procedures to replace the LED board.
