4. If installed, remove the diskette drive from the DualBay
(Armada E500 only).
5. Remove the hard drive from the hard drive bay.
6. Remove any devices installed in the MultiBay.
5.4 Computer Feet
The base feet are oblong, adhesive-backed rubber pads. The base feet are
included in the Miscellaneous Plastics Kit.
Computer Feet
Spare Part Number Information
Miscellaneous Plastics Kit, includes: 159536-001
Switch cover (2)
Hinge cover
Real time clock (RTC) battery
Touch button cable
Front shield
Diskette drive bezel
Hard drive cover
Mini PCI slot cover
RJ-11 modem cover
RJ-45 LAN cover
Computer feet
Display screw covers
TV out connector cover
PC Card space saver
Diskette drive space saver
CD-ROM drive space saver
Infrared lens

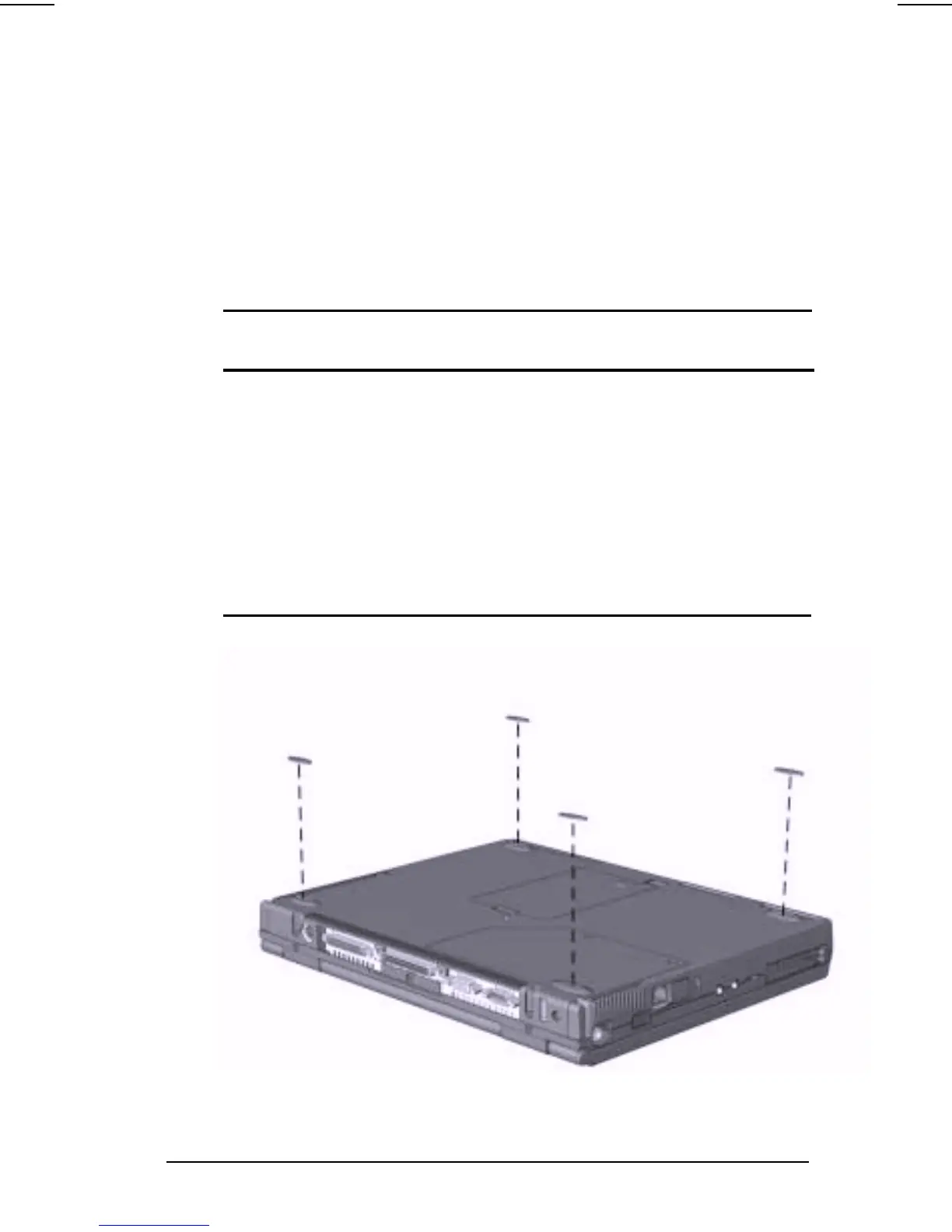

Figure 5-2. Installing the Computer Feet

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
