Compaq Armada E500 Series Maintenance And Service Guide

Removal and Replacement Procedures 5-29
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
5.14 Diskette Drive (Armada V300 only)
Diskette Drive
Spare Part Number Information
Diskette drive 160537-001
Removing the Diskette Drive
1. Prepare the computer for disassembly (Section 5.3) and, in the
order below, remove the following components:
■
Touch button (Section 5.6)
■
Keyboard (Section 5.7)
■
Display assembly (Section 5.9)
■
LED board (Section 5.11)
■
Top cover (Section 5.12)
2. Release the ZIF connector that connects the diskette drive 1
(Figure 5-23).
3. Disconnect the diskette drive cable 2.
4. Remove the screw that secures the diskette drive to the base
enclosure 3.
5. Lift up on the back of the diskette drive 4 and remove it.

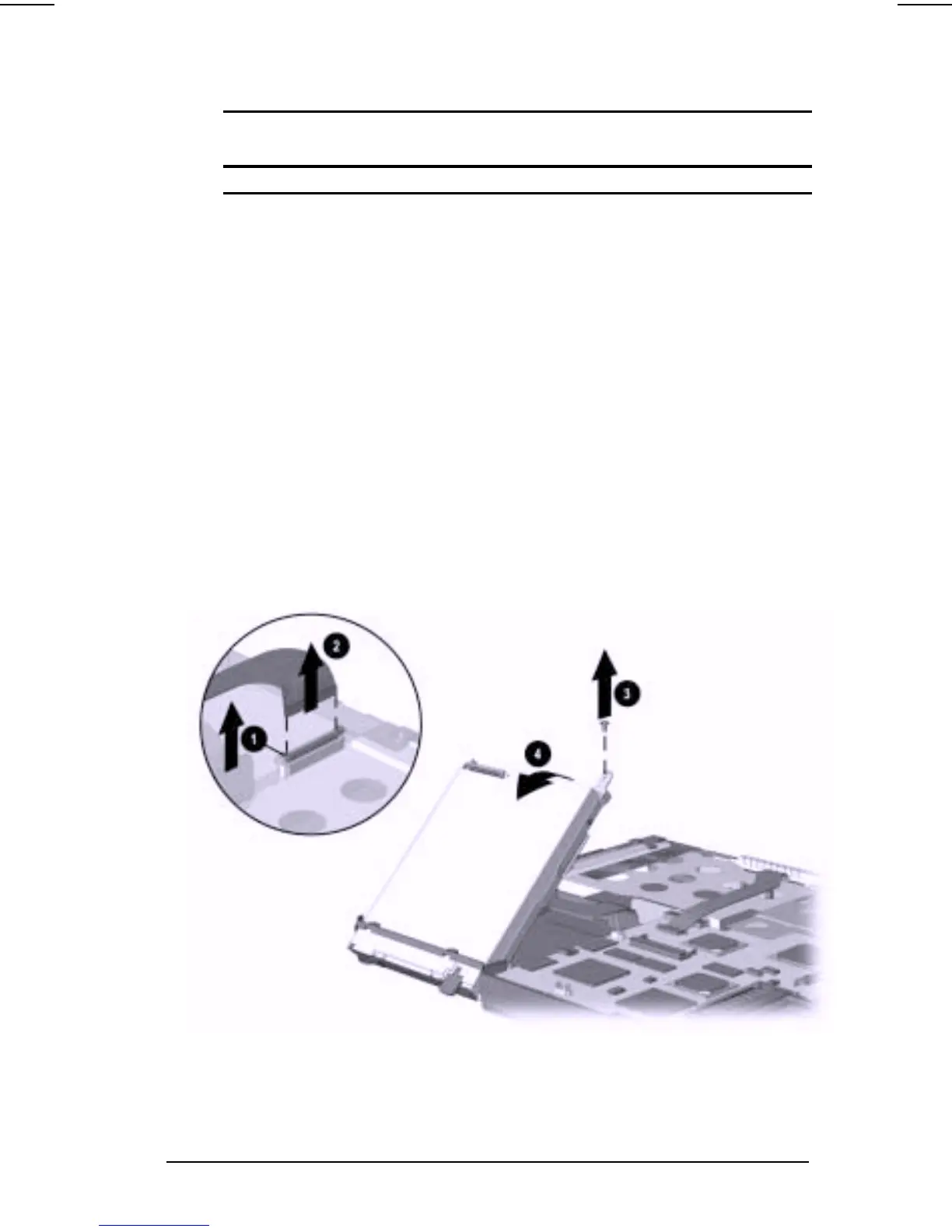

Figure 5-23. Removing the Diskette Drive
Reverse the removal procedure described above to replace the
diskette drive.

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
