Compaq Armada E500 Series Maintenance And Service Guide

5-28 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
3. Remove the screw
1
that secures the front shield to the base
enclosure (Figure 5-22).
4. Lift the front edge of the front shield up and swing it toward the
back of the computer
2
.

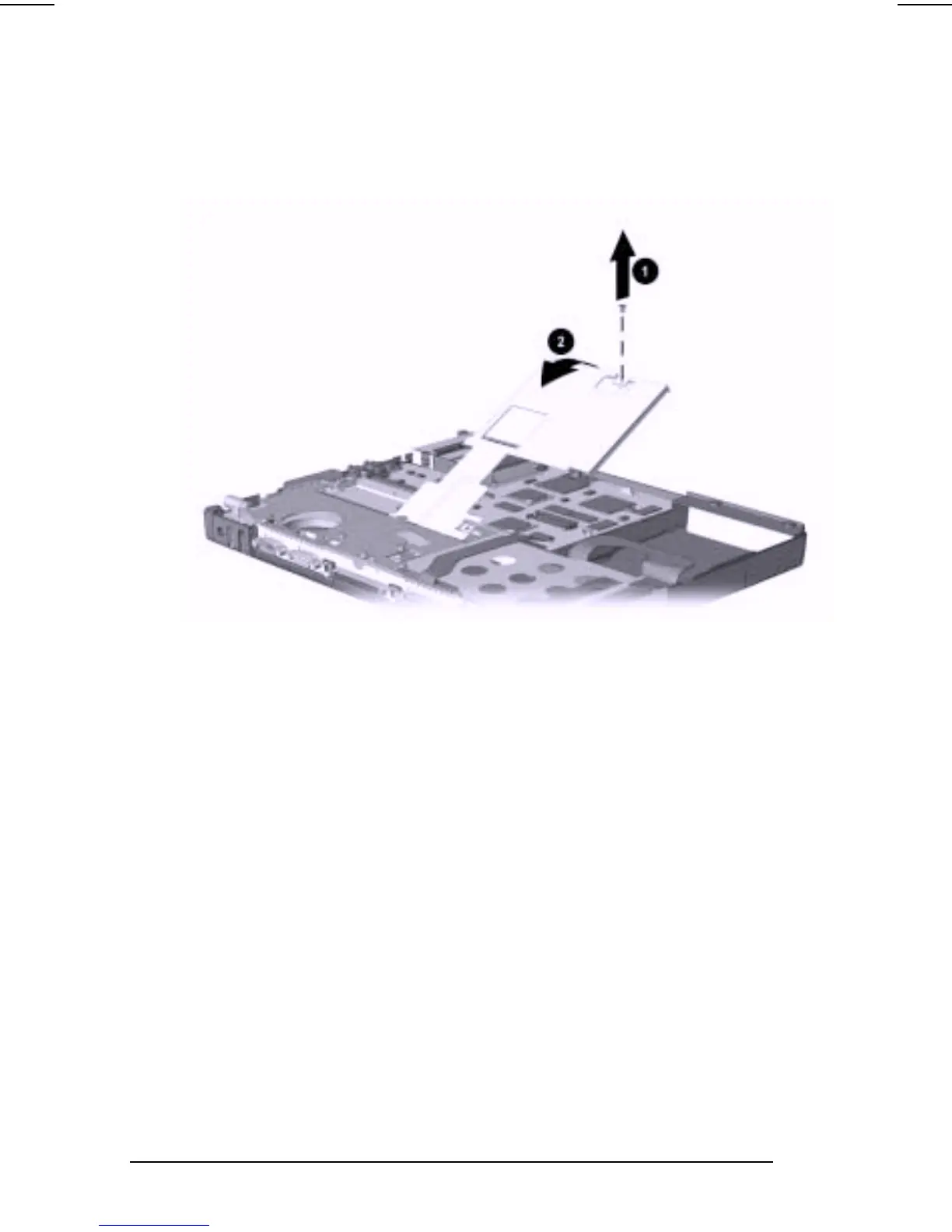

Figure 5-22. Removing the Front Shield
5. Remove the front shield.
Reverse the removal procedure described above to replace the
front shield.

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
