Compaq Armada E500 Series Maintenance And Service Guide

Removal and Replacement Procedures 5-5
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
Installing a Modem or Modem/Network Interface Card
1. Remove the mini PCI slot cover.
2. Remove the two screws
1
that secure the modem or modem/NIC
to the system board (Figure 5-4).
3. Make sure the appropriate RJ11/RJ45 covers are removed from the
base enclosure.
4. Install the card into the mini PCI slot, making sure to seat the card
connector on the system board
2
.

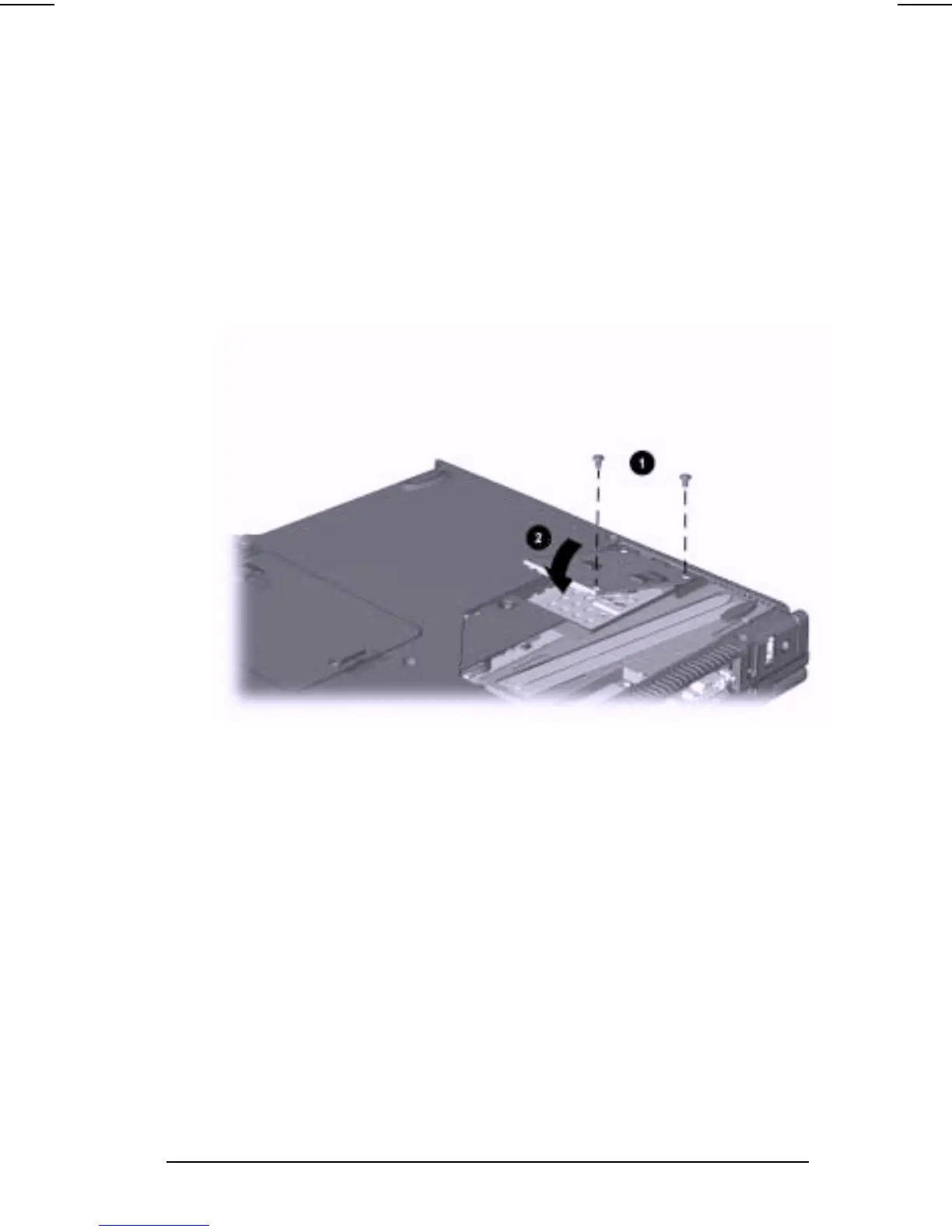

Figure 5-4. Installing a Modem or Modem/Network Interface Card
Reverse the installation procedure described above to remove a modem
or modem/Network Interface Card.

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
