Compaq Armada E500 Series Maintenance And Service Guide

3-12 Illustrated Parts Catalog
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:34 PM
Part Number: 128679-006 File name: Ch03
3.3 Miscellaneous Plastics Kit Components

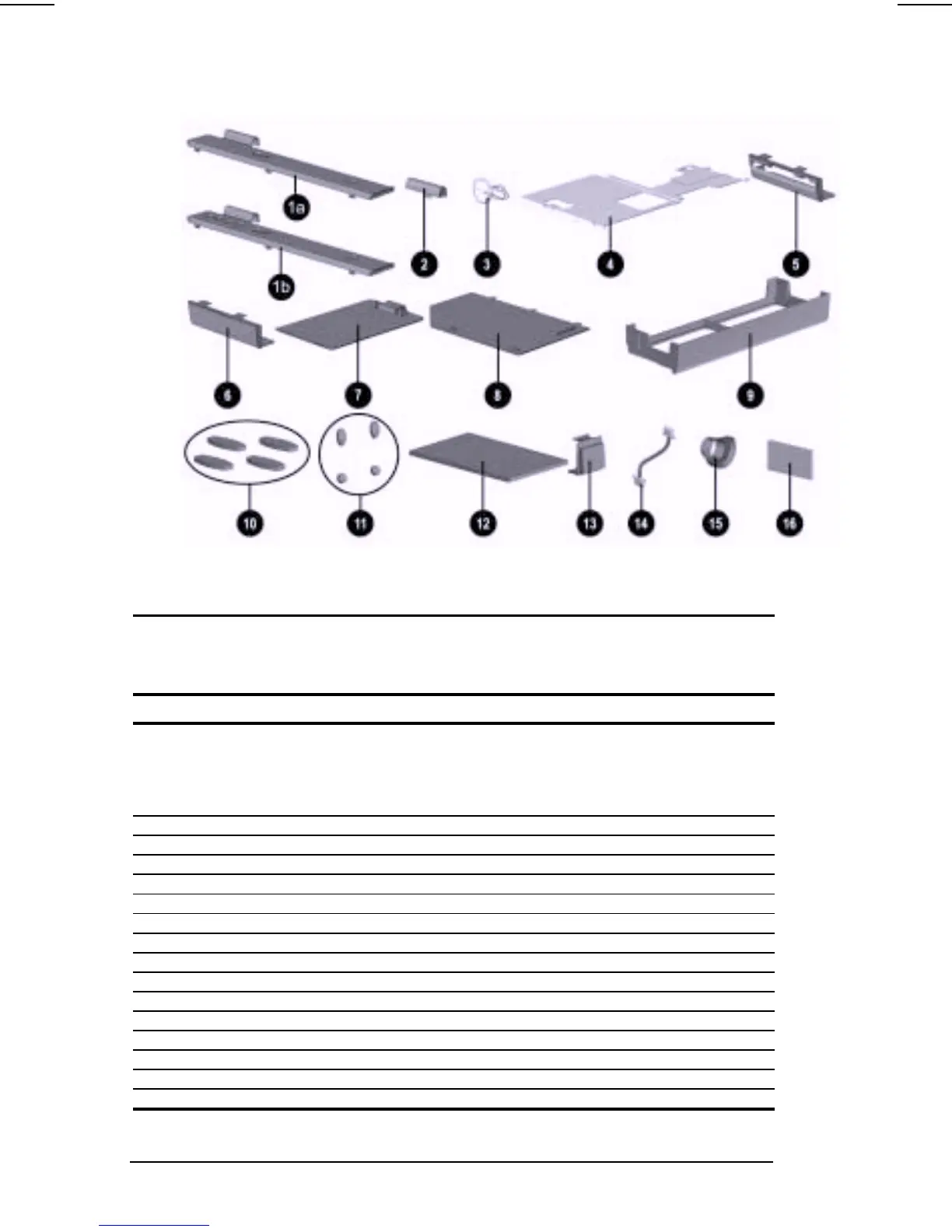

Figure 3-3. Miscellaneous Plastics Kit Components
Table 3-2
Miscellaneous Plastics Kit Components
Spare Part Number 159536-001
Item Description
Switch cover
1a does not include Easy Access buttons; used with config. codes not
beginning with FL5, FL6, FM, FV, and FW.
1b includes Easy Access buttons; used with config. codes beginning
with FL5, FL6, FM, FV, FW, and JF.
2 Hinge cover
3 Real time clock (RTC) battery
4 Front shield
5 Diskette drive bezel
6 Diskette drive space saver
7 Hard drive cover
8 Mini PCI slot cover
9 CD-ROM drive space saver
10 Computer feet (4)
11 Display screw covers (4)
12 PC Card space saver (2)
13 RJ-11 modem cover & RJ-45 LAN cover (2)
14 Touch button cable
15 TV out connector cover
16 Infrared lens

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
