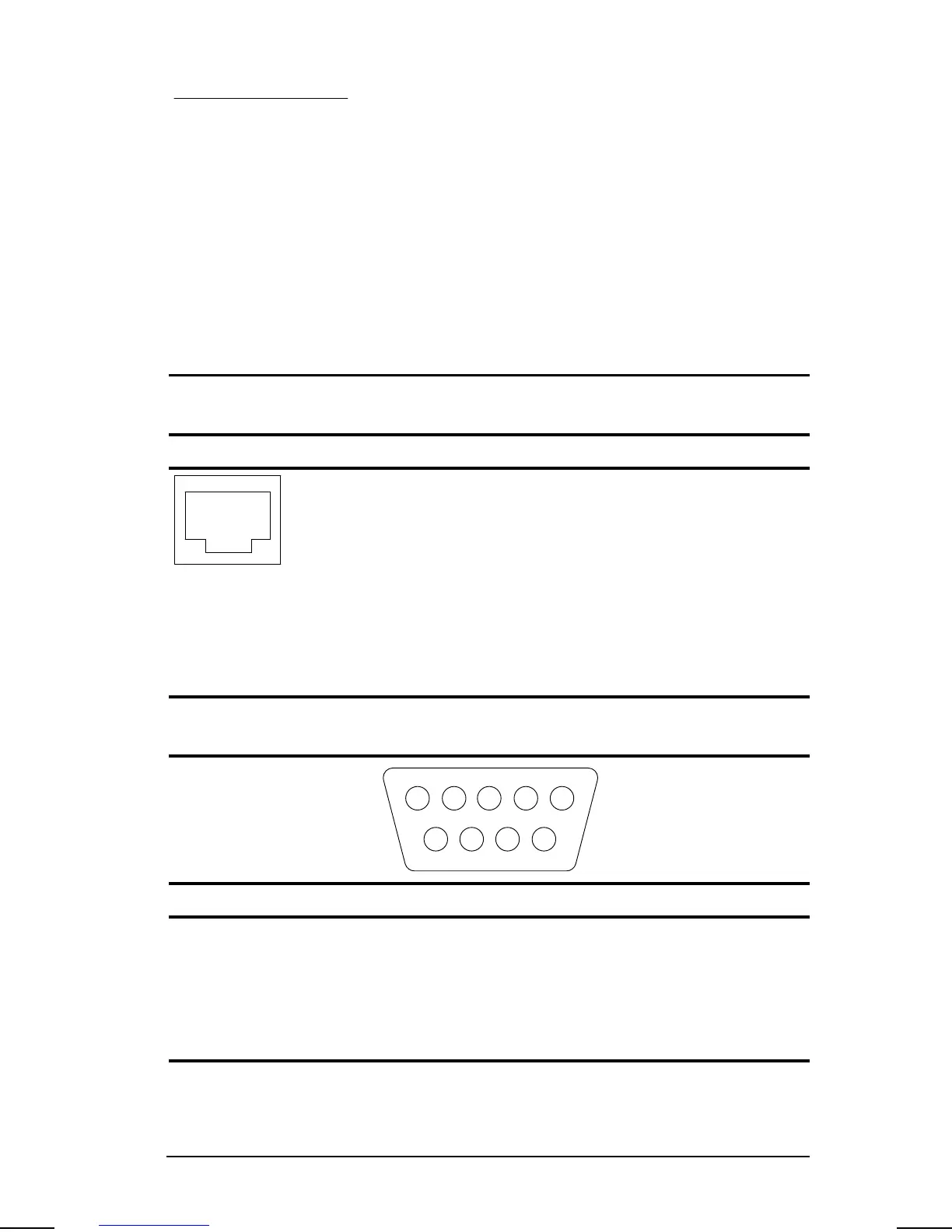

Connector Pin Assignments A-1
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: David Calvert Saved by: The Integrity Group Saved date: 09/13/00 2:38 PM
Pages: 8 Words: 693 Template: c:\msoffice\templates\ref\ref.dot
Part Number: 128679-005 File name: Appa.doc
appendix
A
CONNECTOR PIN ASSIGNMENTS
Table A-1
RJ-11
Connector Pin Signal
6
5
4
3
2
1
7
8
1
2
3
4
5
6
7
8
NC_J3A
NC_J3B
TIP
RING
NC_J3C
NC_J3D
Unused
Unused
Table A-2
Serial Connector
4
98
52
76
13
Pin Signal Pin Signal
1 Carrier detect 6 Data set ready
2 Receive data 7 Ready to send
3 Transmit data 8 Clear to send
4 Data terminal ready 9 Ring indicator
5 Ground
