Compaq Armada E500 Series Maintenance And Service Guide

5-4 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
5.5 Mini PCI Slot
Modem and Modem/Network Interface Card
Spare Part Number Information
Mini PCI V. 90 modem card 121895-001
Mini PCI V. 90 modem/Network Interface Card 153207-001
Removing the Mini PCI Slot Cover
1. Prepare the computer for disassembly (Section 5.3).
2. Turn the computer bottom side up with the front facing forward.
3. Remove the two screws
1
that secure the mini PCI slot cover to
the base enclosure (Figure 5-3).
4. Lift up the front edge of the mini PCI slot cover and swing the
cover back
2
.

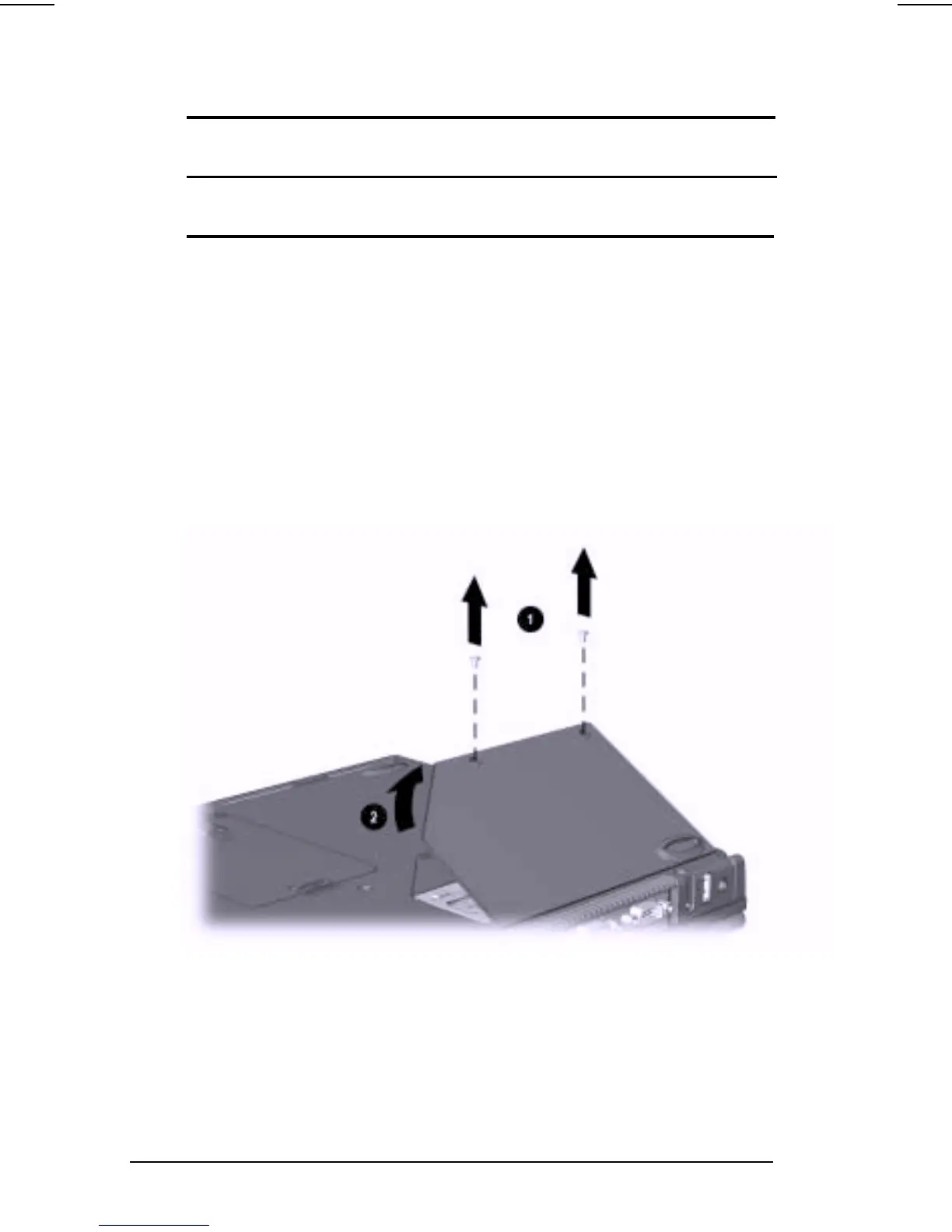

Figure 5-3. Removing the Mini PCI Slot Cover
5. Remove the mini PCI slot cover.
Reverse the removal procedure described above to replace the mini PCI
slot cover.

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
