Compaq Armada E500 Series Maintenance And Service Guide

5-14 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
Installing a Memory Expansion Board
All memory expansion boards are asymmetrically keyed (notched) to
ensure correct positioning. Memory expansion boards can be used in
either memory expansion slot.
1. Insert the memory expansion board into an empty memory
expansion slot at a 45-degree angle
1
(Figure 5-11).
2. Push the memory expansion board down
2
until the board is
seated in the plastic retention clips.

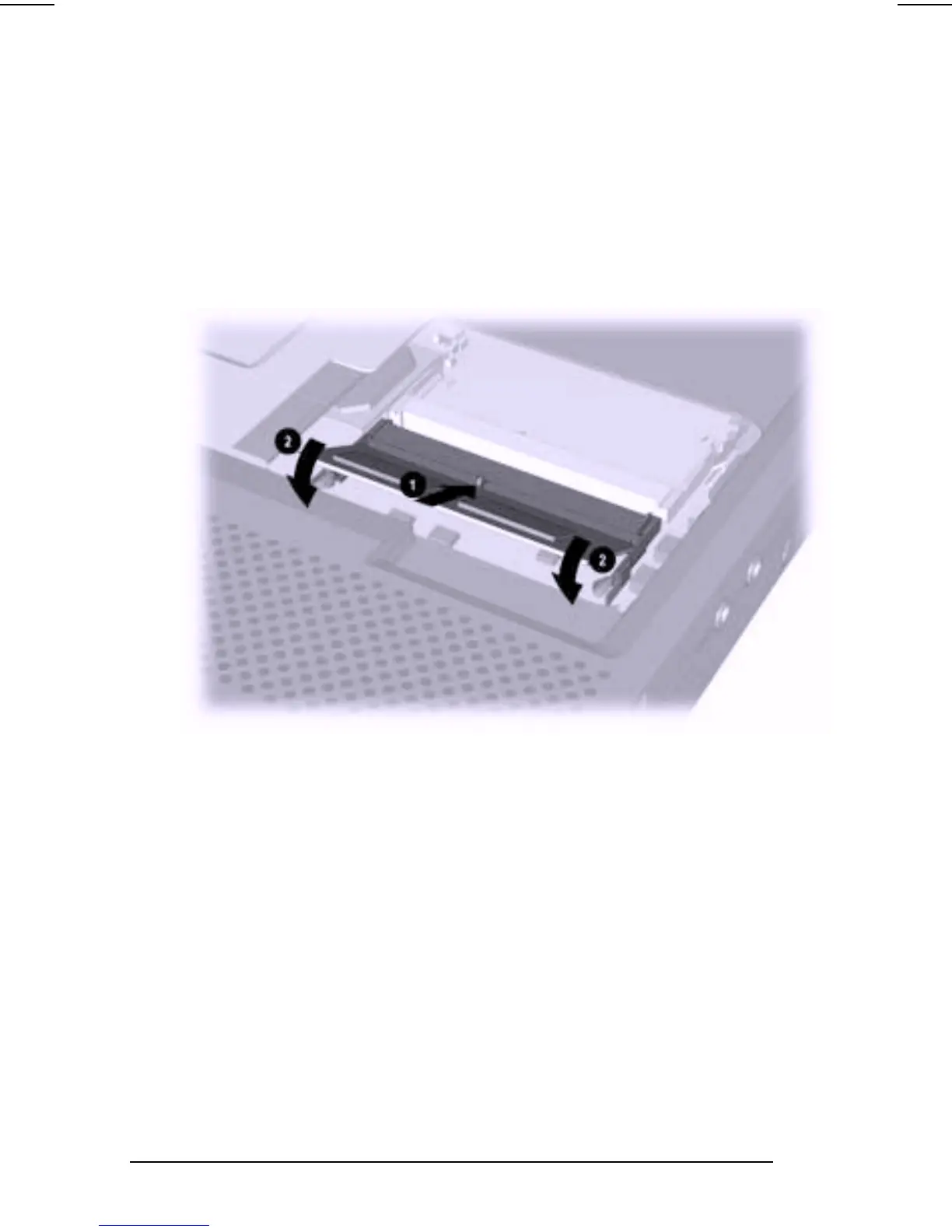

Figure 5-11. Installing a Memory Expansion Board
3. Run Computer Setup (refer to Section 2.5).

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
