6. Push the back of the switch cover up
1
(Figure 5-13).
7. Position the computer so the front faces forward.
8. Swing the switch cover up and forward
2
.
9. Remove the switch cover.

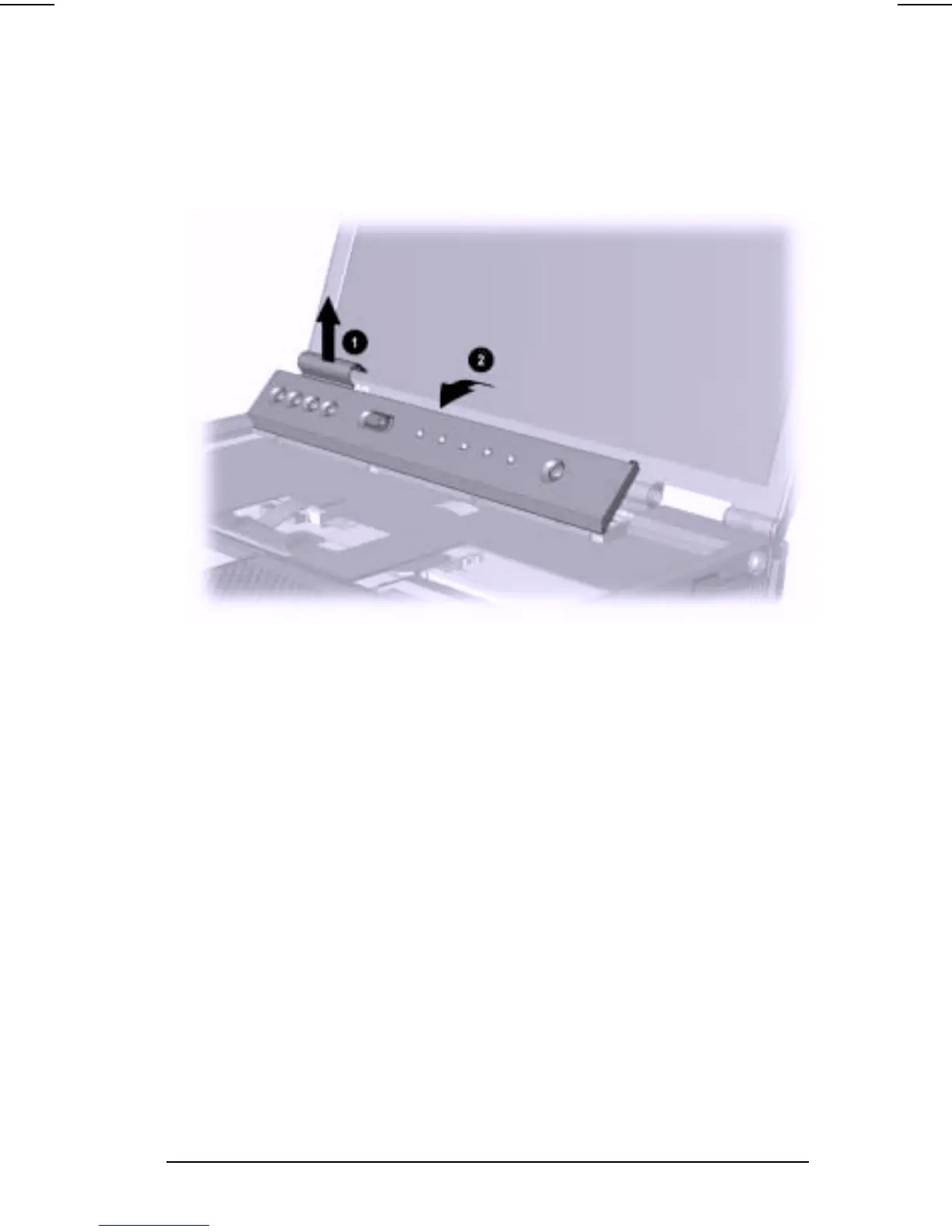

Figure 5-13. Removing the Switch Cover
