Removal and Replacement Procedures 5-35
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
3. Lift the left and right edges of the voltage converter board to
disconnect it from the system board (Figure 5-26).

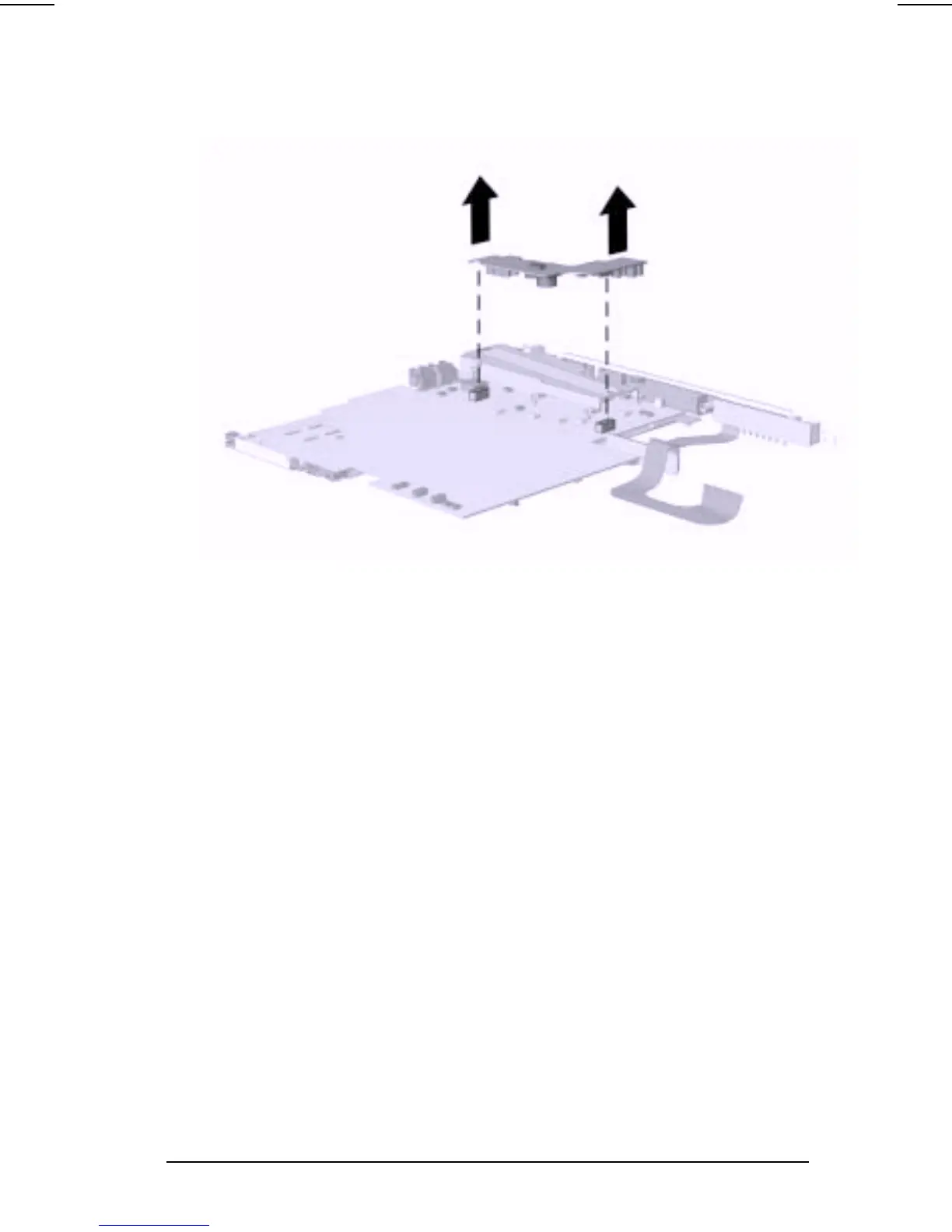

Figure 5-26. Removing the Voltage Converter Board
4. Remove the voltage converter board.
Reverse the removal procedure described above to replace the voltage
converter board.
