3. Remove the six screws that secure the fan and heat sink to the
system board
1
(Figure 5-27).
4. Disconnect the fan cable from the system board
2
.
5. Remove the fan and heat sink from the system board
3
.

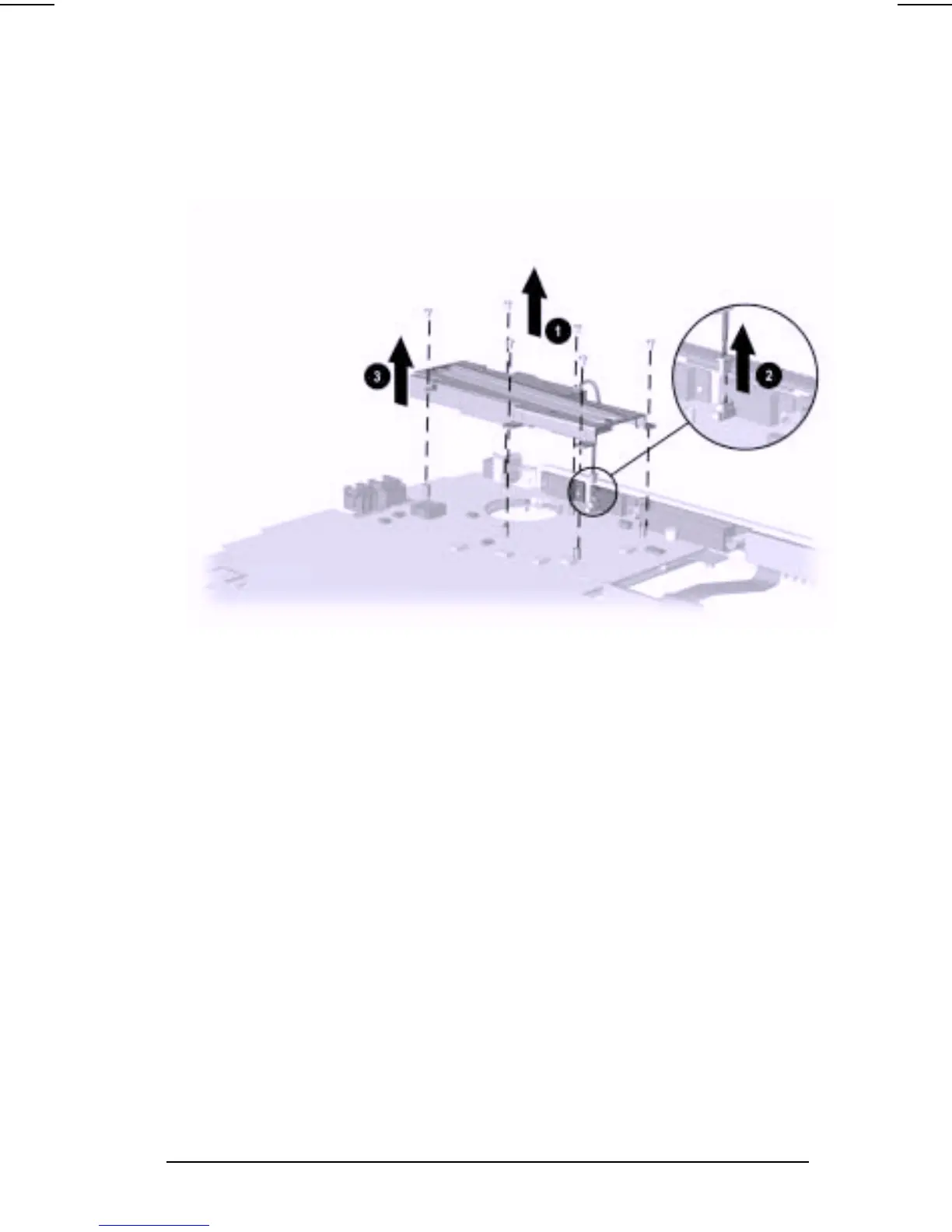

Figure 5-27. Removing the Fan and Heat Sink
