Compaq Armada E500 Series Maintenance And Service Guide

Connector Pin Assignments A-3
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: David Calvert Saved by: The Integrity Group Saved date: 09/13/00 2:38 PM
Part Number: 128679-005 File name: Appa.doc

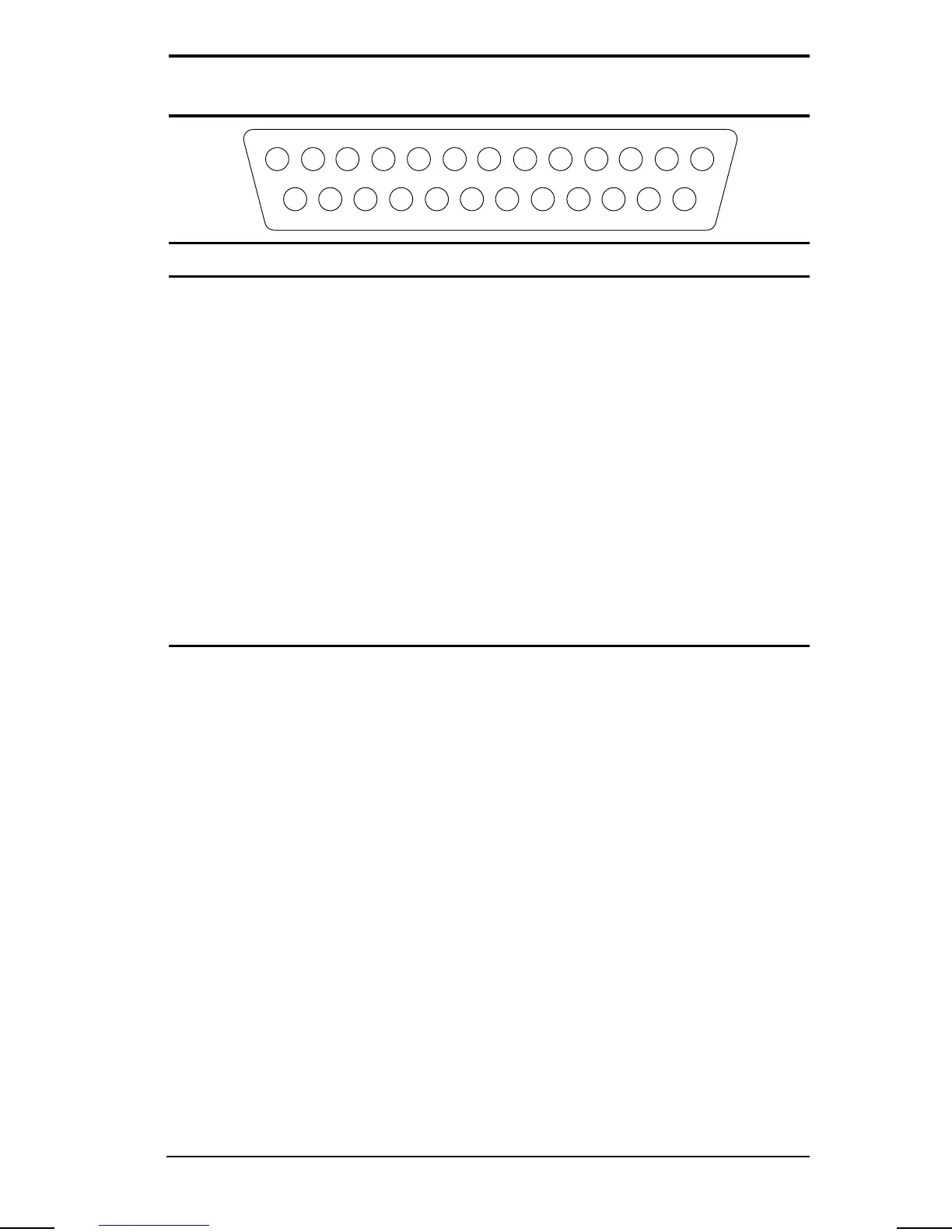

Table A-6
Parallel Connector
1234
151617 14
5678910111213
1820 1921222325 24
Pin Signal Pin Signal
1 Strobe 14 Auto linefeed
2 Data bit 0 15 Error
3 Data bit 1 16 Initialize printer
4 Data bit 2 17 Select in
5 Data bit 3 18 Ground
6 Data bit 4 19 Ground
7 Data bit 5 20 Ground
8 Data bit 6 21 Ground
9 Data bit 7 22 Ground
10 Acknowledge 23 Ground
11 Busy 24 Ground
12 Paper end 25 Ground
13 Select

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
