Compaq Presario V3000 User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 5–5

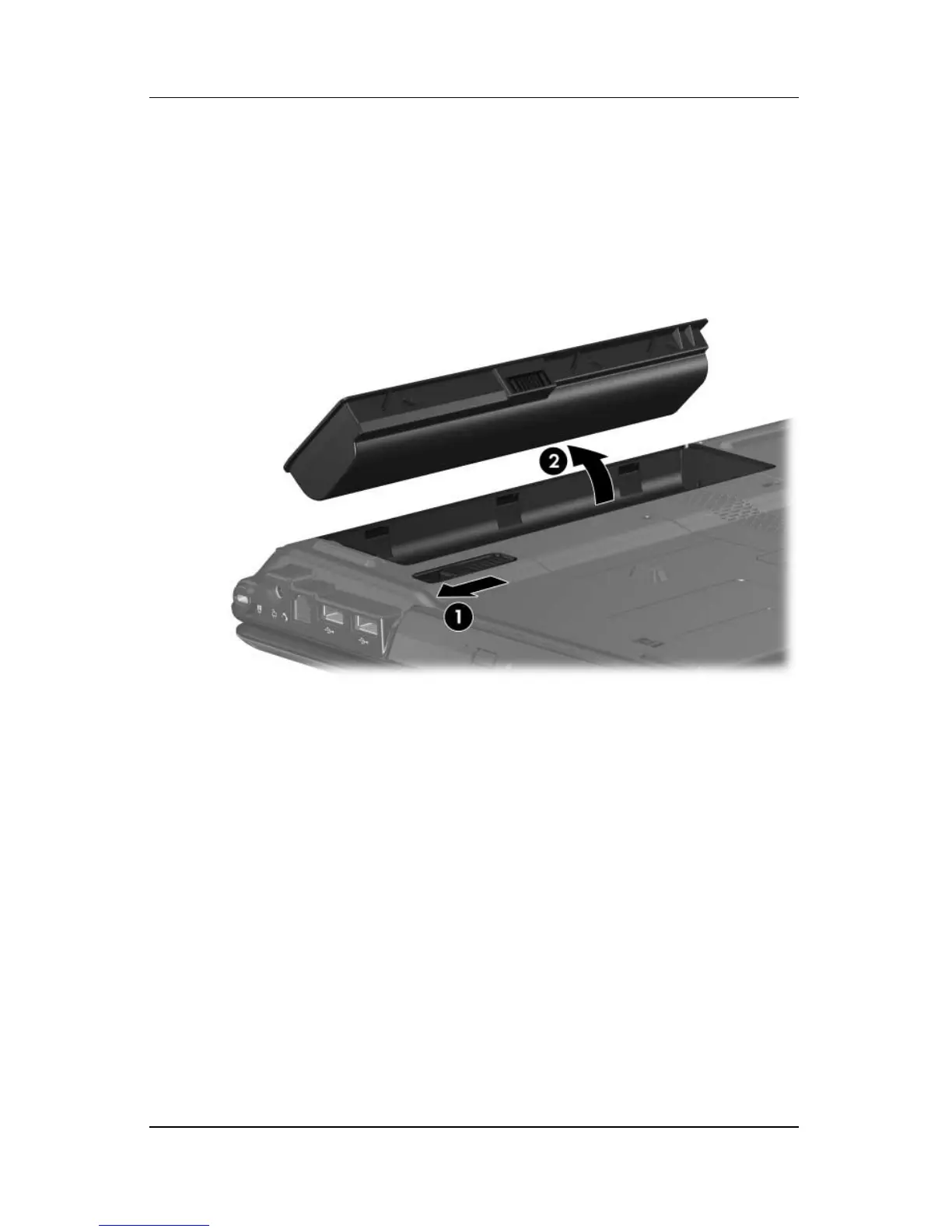

b. Slide and hold the battery release latch 1 to the left.
(The front edge of the battery disengages from
the computer.)
c. Lift the front edge of the battery 2 up and swing it back.
d. Remove the battery.
Removing the Battery
Reverse the above procedure to install the battery.

Compaq Presario V3000 Specifications

General

Wireless	802.11b/g
Audio	Altec Lansing speakers
Battery	6-cell Lithium-Ion
RAM	Up to 2 GB DDR2 SDRAM (expandable)
Display	1280x800
Graphics	Intel GMA 950
Operating System	Windows Vista
Optical Drive	DVD±RW
Ports	3x USB 2.0, VGA, S-Video, RJ-45, RJ-11, headphone/microphone jacks
Card Reader	5-in-1
Networking	10/100 Ethernet
Processor	Intel Core 2 Duo
Storage	120GB HDD
