5–40 Maintenance and Service Guide
Removal and Replacement Procedures
24. If it is necessary to replace the wireless transceivers and
cables, remove the two Phillips PM2.5×4.0 screws 1 that
secure the left and right transceivers to the display enclosure.
25. Remove the wireless antenna cables from the clips 2 built in
to the left and right sides of the display enclosure.
26. Detach the wireless antenna transceivers 3 from the
display enclosure.
27. Remove the wireless antenna cables 4.

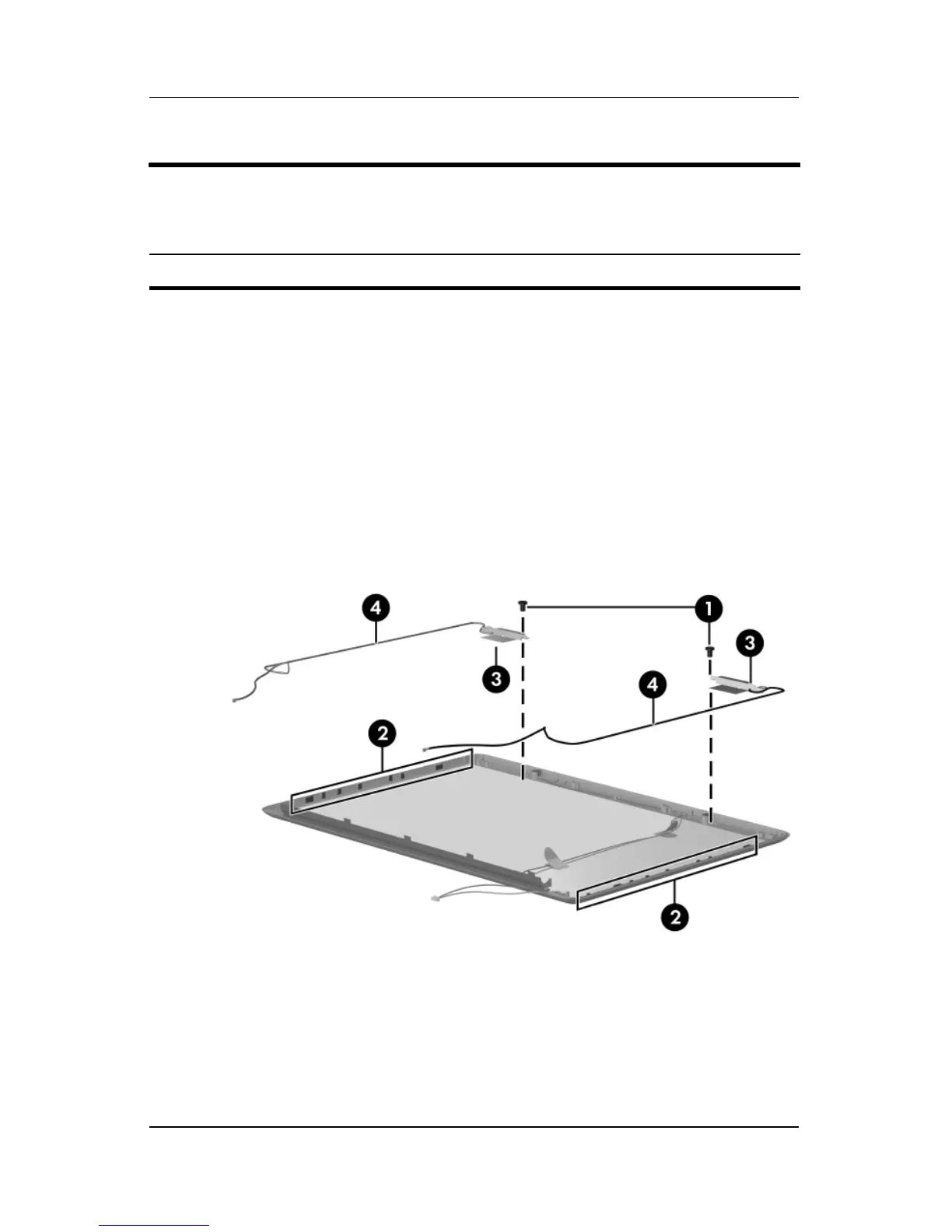

Removing the Wireless Antenna Transceivers and Cables
Display Assembly Subcomponents
Spare Part Number Information
Wireless antenna transceivers and cables 417107-001
