Compaq Presario V3000 User Manual

5–68 Maintenance and Service Guide
Removal and Replacement Procedures

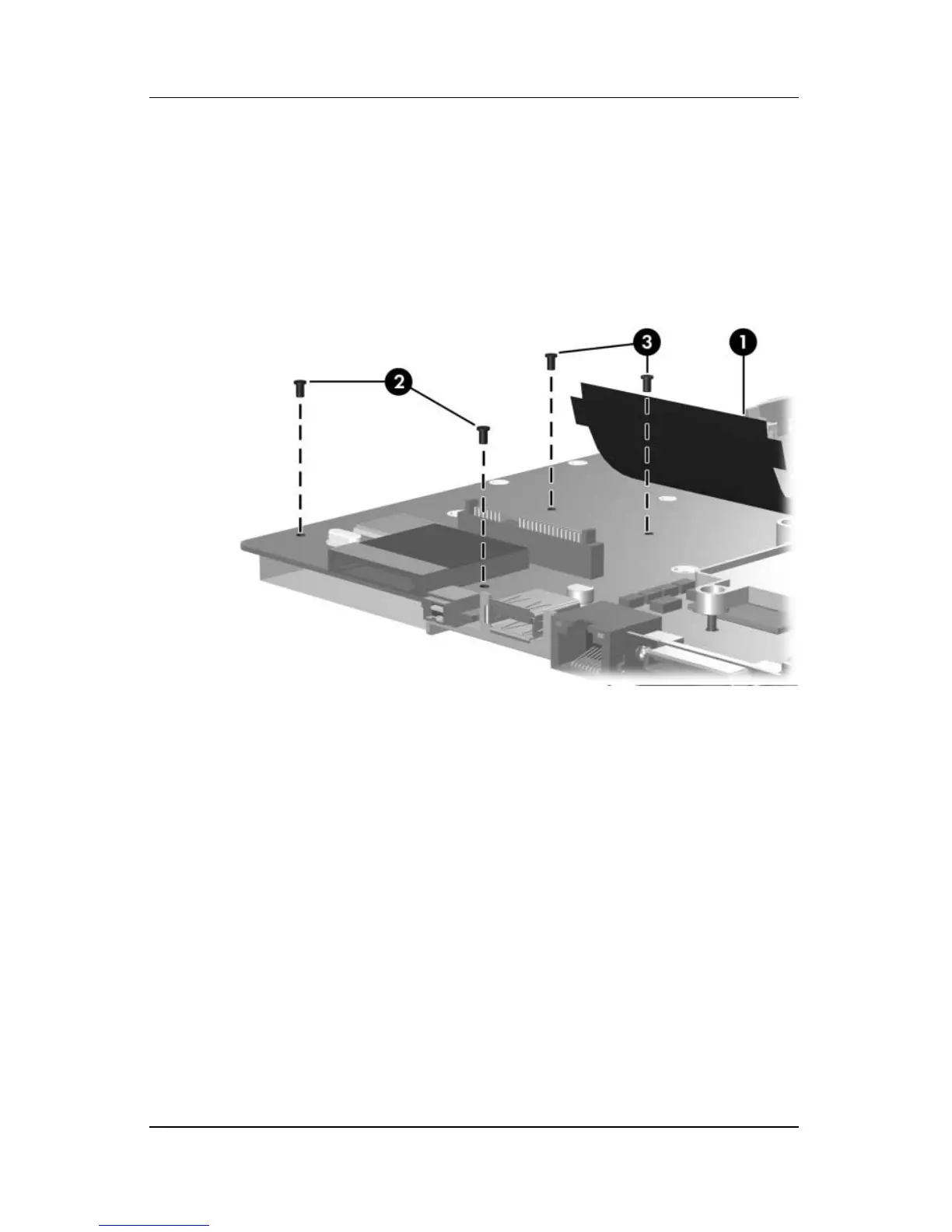

3. Lift the insulation material 1 from the system board to
expose the ExpressCard assembly rear screws.
4. Remove the two Phillips PM2.0×4.0 screws 2 and the
two Phillips PM2.0×8.0 screws 3 that secure the
ExpressCard assembly to the system board.
Removing the Fan/Heat Sink Assembly

Compaq Presario V3000 Specifications

General

Wireless	802.11b/g
Audio	Altec Lansing speakers
Battery	6-cell Lithium-Ion
RAM	Up to 2 GB DDR2 SDRAM (expandable)
Display	1280x800
Graphics	Intel GMA 950
Operating System	Windows Vista
Optical Drive	DVD±RW
Ports	3x USB 2.0, VGA, S-Video, RJ-45, RJ-11, headphone/microphone jacks
Card Reader	5-in-1
Networking	10/100 Ethernet
Processor	Intel Core 2 Duo
Storage	120GB HDD
