Compaq Presario V3000 User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 5–27
6. Turn the computer display-side up with the front toward you.
7. Open the computer as far as possible.

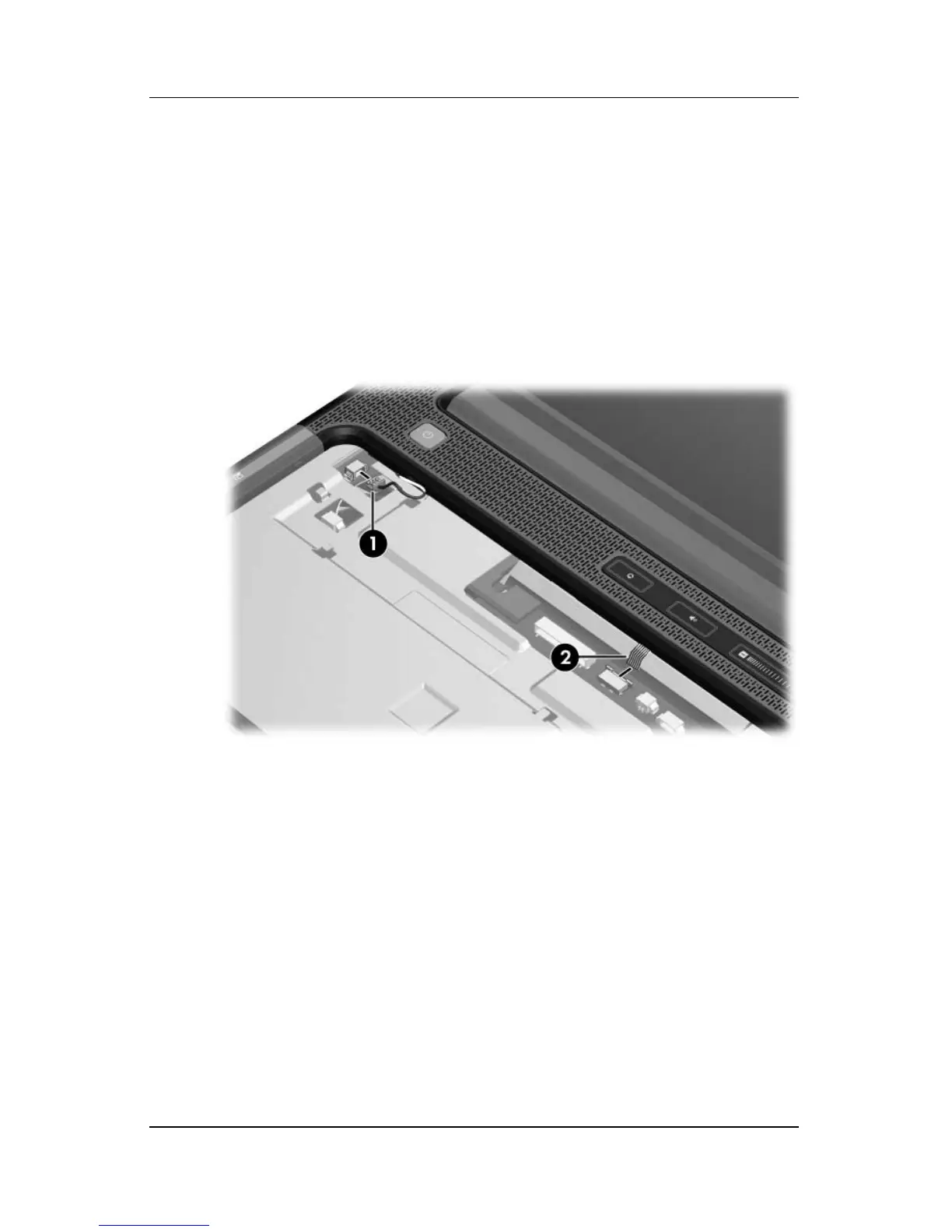

8. Disconnect the power button board cable 1 from the
system board.
9. Release the ZIF connector to which the LED board cable 2 is
connected and disconnect the cable from the system board.
Disconnecting the Switch Cover Cables

Compaq Presario V3000 Specifications

General

Wireless	802.11b/g
Audio	Altec Lansing speakers
Battery	6-cell Lithium-Ion
RAM	Up to 2 GB DDR2 SDRAM (expandable)
Display	1280x800
Graphics	Intel GMA 950
Operating System	Windows Vista
Optical Drive	DVD±RW
Ports	3x USB 2.0, VGA, S-Video, RJ-45, RJ-11, headphone/microphone jacks
Card Reader	5-in-1
Networking	10/100 Ethernet
Processor	Intel Core 2 Duo
Storage	120GB HDD
