5–8 Maintenance and Service Guide
Removal and Replacement Procedures

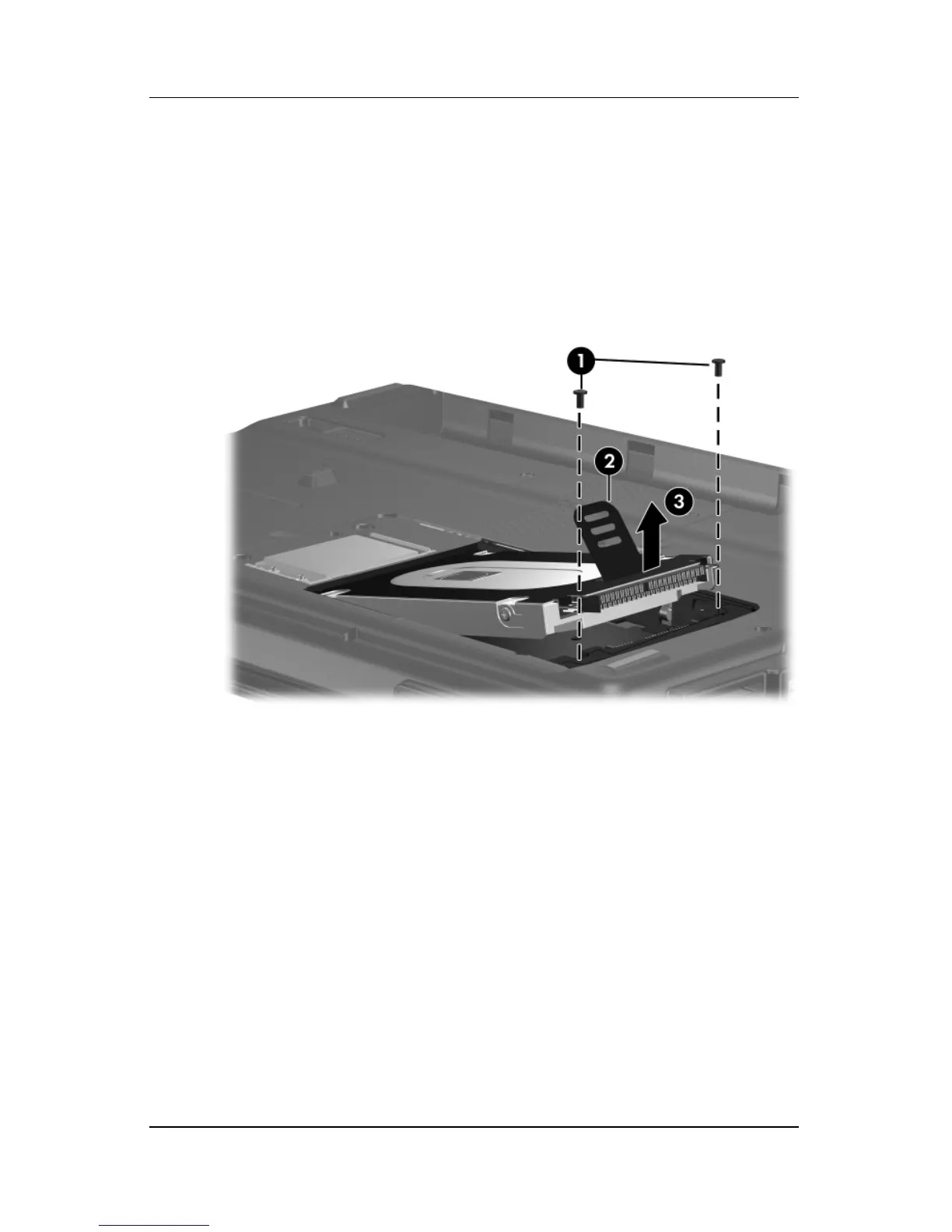

5. Remove the two black Phillips PM2.5×5.0 screws 1 that
secure the hard drive to the computer.
6. Use the mylar tab 2 to lift the hard drive 3 until it
disconnects from the computer.
7. Remove the hard drive from the hard drive bay.
Removing the Hard Drive
