Display Component Recycling
Maintenance and Service Guide C–5

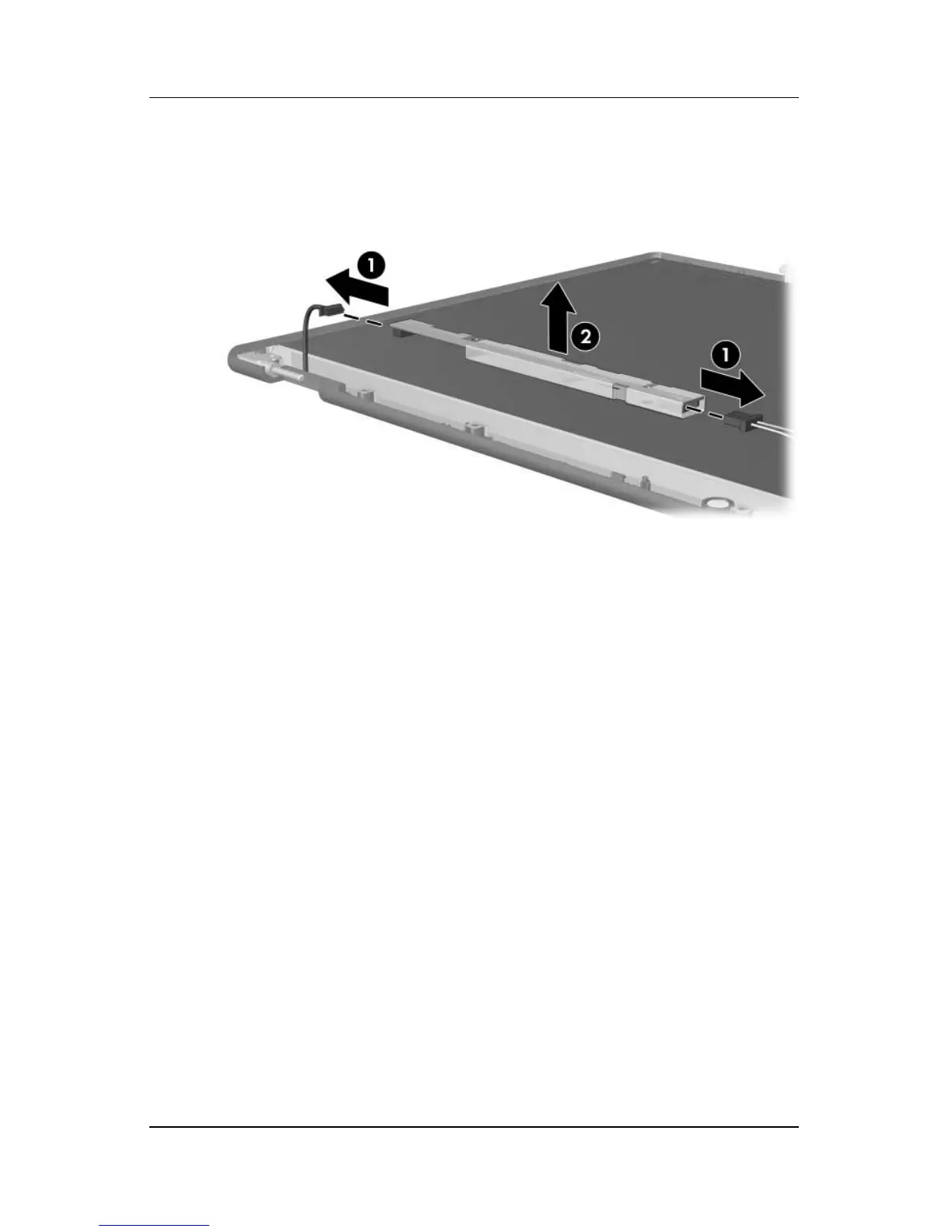

4. Disconnect all LCD panel cables 1 from the display inverter
board and remove the inverter board 2.
Removing the Display Inverter Board
