5–74 Maintenance and Service Guide
Removal and Replacement Procedures
✎
The following note applies only to computer models using
Intel processors:

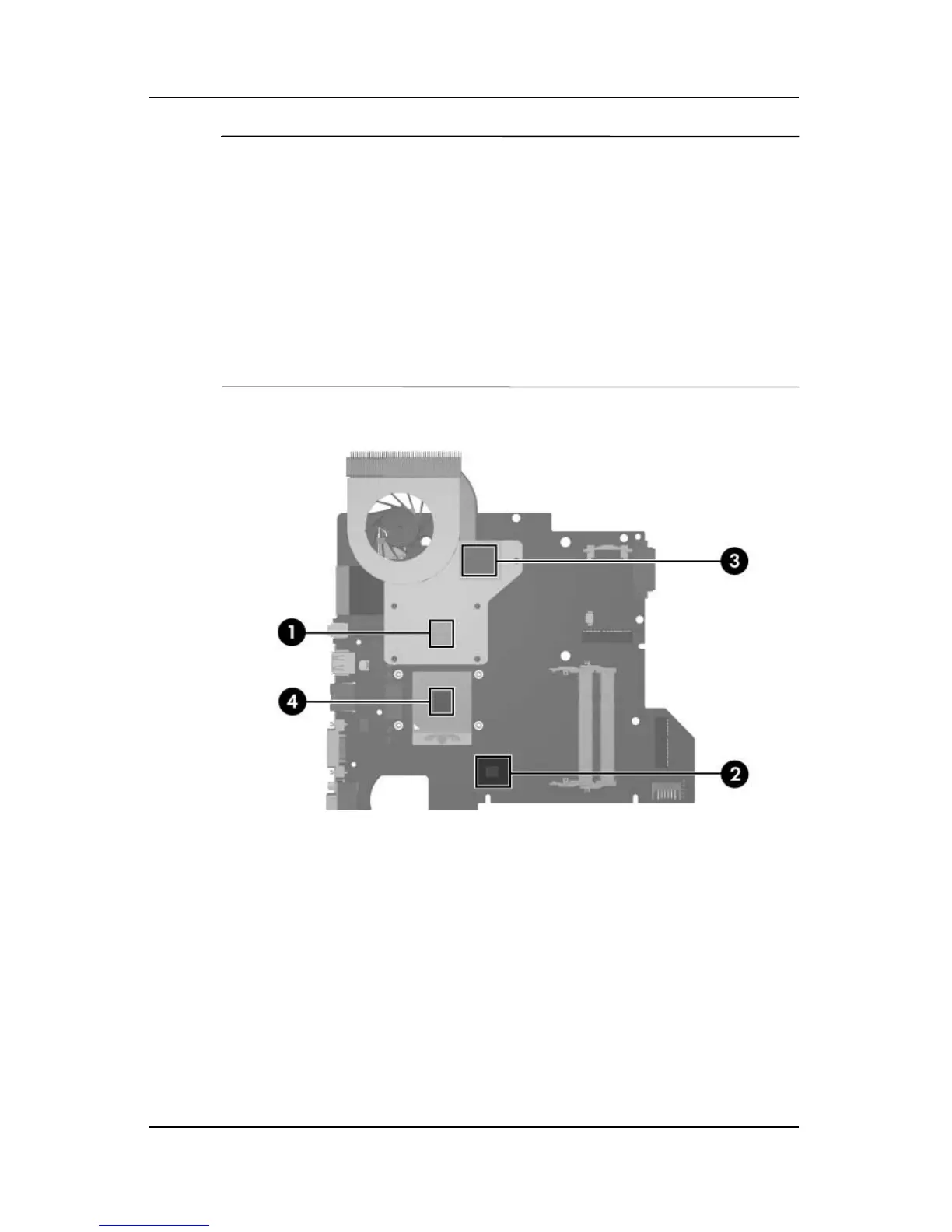

The thermal pads should be thoroughly cleaned from the surfaces
of the fan/heat sink assembly 1 and 3, video memory chip 2,
and processor 4 each time the fan/heat sink assembly is removed.
Thermal pads should be installed on all surfaces before the
fan/heat sink assembly is reinstalled. Thermal pads are included
with all fan/heat sink assembly, system board, and processor
spare part kits.
Replacing the Thermal Pads
