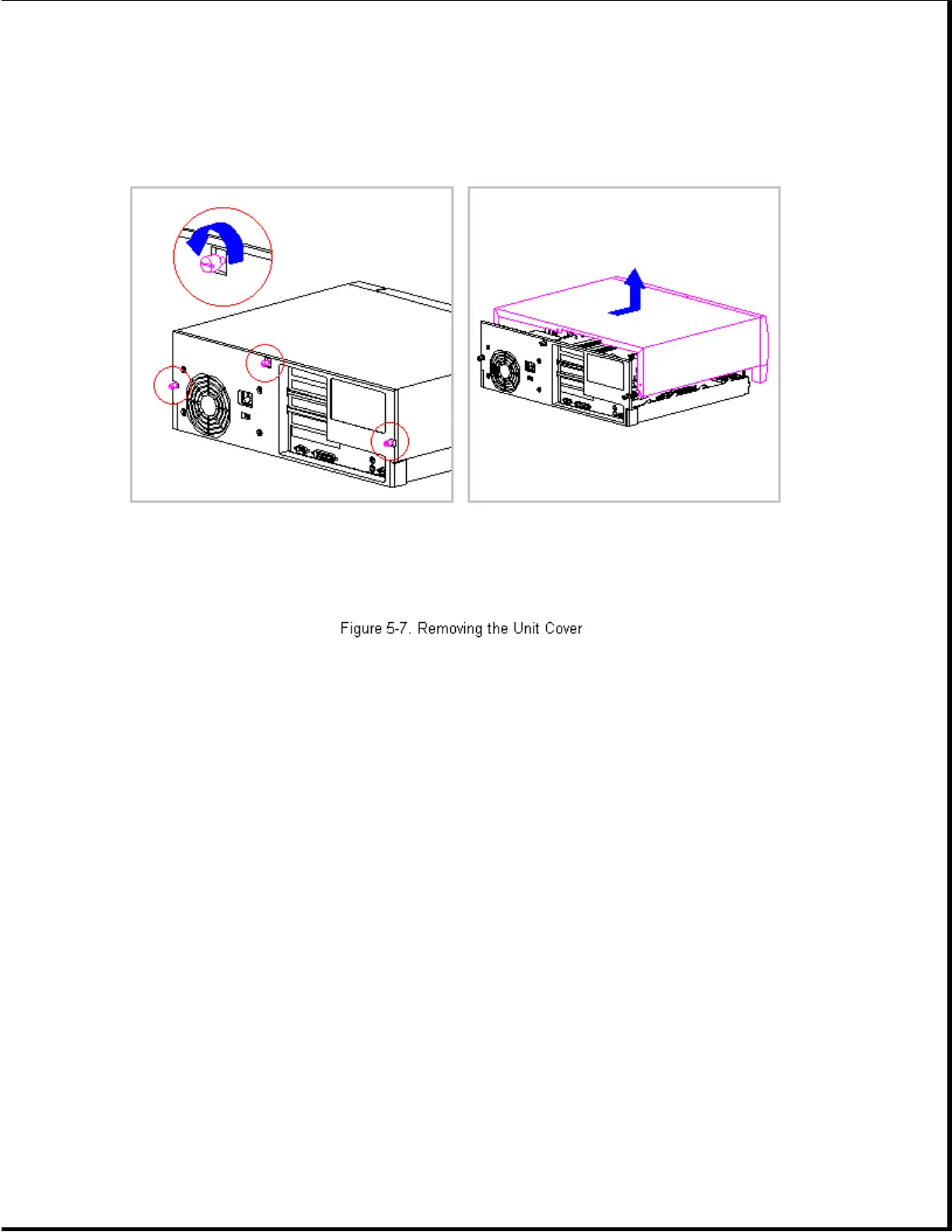

3. Slide the cover toward the front of the computer and lift it up and
away from the chassis (Figure 5-7).
The internal components of the computer are now accessible for service. To
replace the unit cover, reverse the above procedure.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The system board bracket serves as the left chassis panel and is not
rigidly fastened to the chassis. Lifting the computer by using this
bracket as a handle results in the system board with bracket attached
being removed from the computer. To avoid damage to the computer and
possible personal injury, do not attempt to lift the computer by the
system board bracket.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Front Bezel
The front bezel is mounted to the computer cover with five screws. The
mounting screws also serve to hold the grounding clips in place along the
top inside edge of the bezel. To replace the front bezel, complete the
following steps.
