Compool Cp3000
8

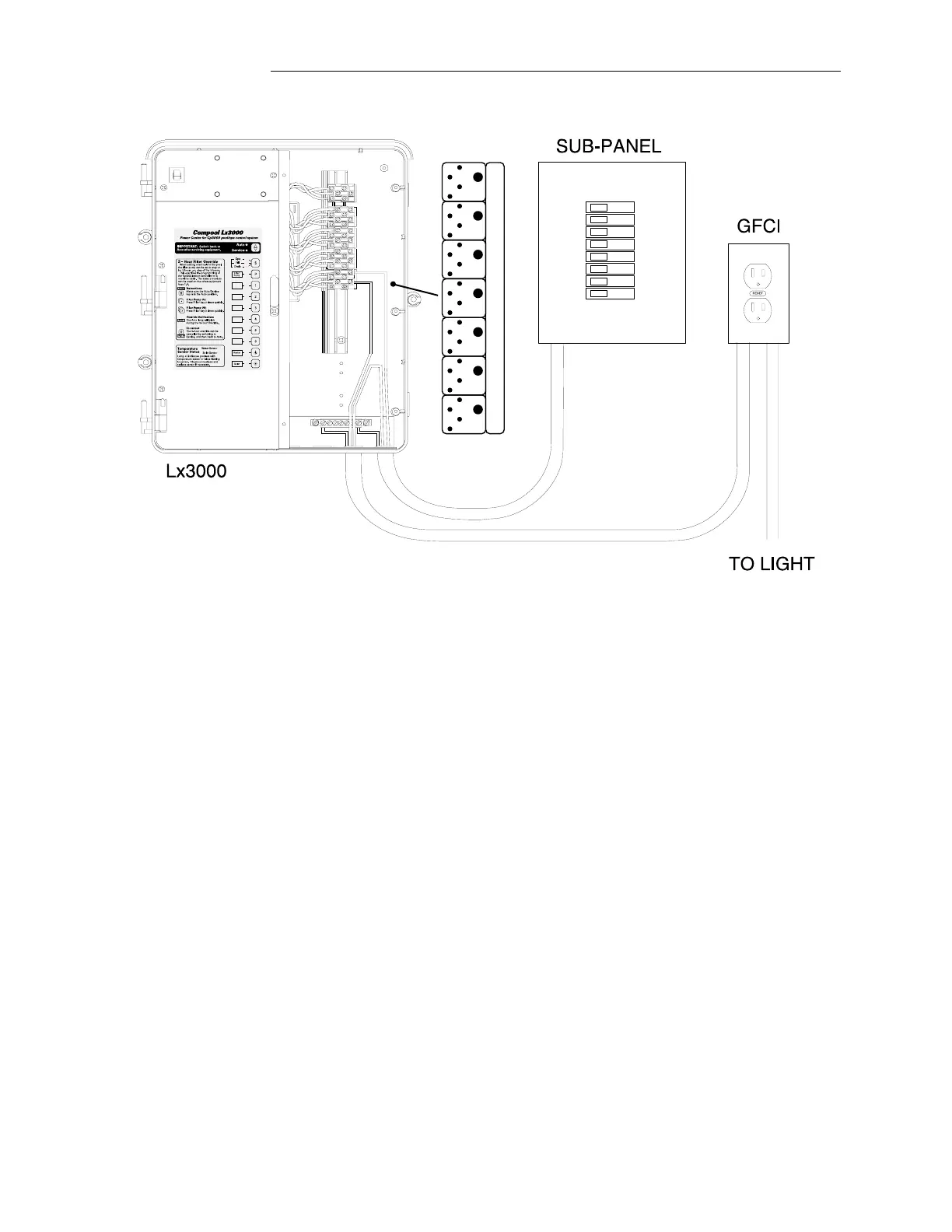

UNDERWATER LIGHTS
If the system incorporates 115 Volt Underwater Light(s), you should provide GFCI protection on the load side of the
relay (not the line side) as shown above.
Note: Low voltage lights and fiber optic lights do not require GFCI protection.
1. Run appropriate wire from circuit breaker to LINE 1 of terminal block.
2. Run wire from LOAD 1 and neutral wire from circuit breaker to GFCI.
3. Connect underwater lights to GFCI.
Note: If total load exceeds 500 watts (i.e.: two 400 watt pool lights), provide a jumper wire between LINE 1 and LINE
2 at the terminal block.
LINE
LINE
LOAD
LOAD
R
LINE
LINE
LOAD
LOAD
R
LINE
LINE
LOAD
LOAD
R3
LINE
LINE
LOAD
LOAD
R
LINE
LINE
LOAD
LOAD
R
LINE
LINE
LOAD
LOAD
R
LINE
LINE
LOAD
LOAD
R
HIGH VOLTAGE RELAYS
FULL LOAD 0AMP
LOCKED ROTOR 0AMP
Installation
