OPERATING INSTRUCTIONS
INTRODUCTION

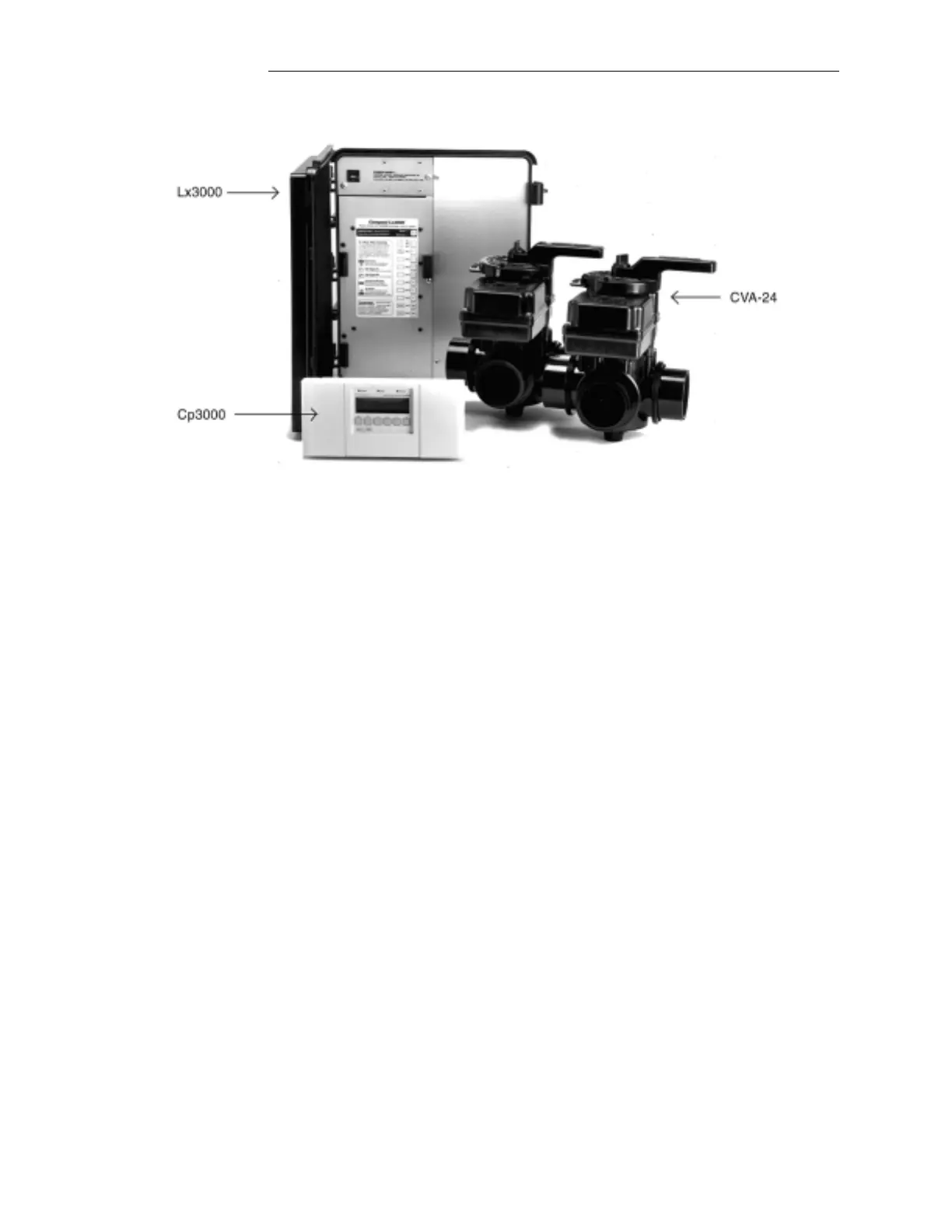

The Cp3000 is an electronic control system which is designed to coordinate and operate all of the equipment associated
with your swimming pool and spa. The system is comprised of three principal components:
• Cp3000 Controller.
• Two CVA-24 Valve Actuators.
• Lx3000 Power Center.
The Controller automatically controls and monitors the timing of all your pool and spa equipment, and the temperature
of your pool and spa; the Valve Actuators switch the filter and heater from pool to spa; and the Power Center provides
easy maintenance for your Pool Serviceperson.
Additionally, the Control System incorporates important safety features which protect your pool equipment from
accidental damage. Your system may also include a Spa-Side Remote and other options which further add to the
convenience, safety, and economy of operating your pool and spa equipment.
Note: It is not recommended to use the Cp3000 system to control a pool cover.
SAFETY FEATURES
HEATER PROTECTION
A built-in electronic delay circuit automatically runs the filter pump for an additional 5 minutes whenever the system
is turned off. This feature enables the heater to cool down, so that the heat exchanger and plumbing are not damaged
from overheating.
If the filter pump is being turned off after using the spa and the pool was not previously on, the motorized valves will
remain in the “spa circulation” position during this 5 minute “heater cool down” cycle. This prevents the possibility
of any cold water being cycled from the pool into the spa during this period of time.
