SYSTEM OPTIONS

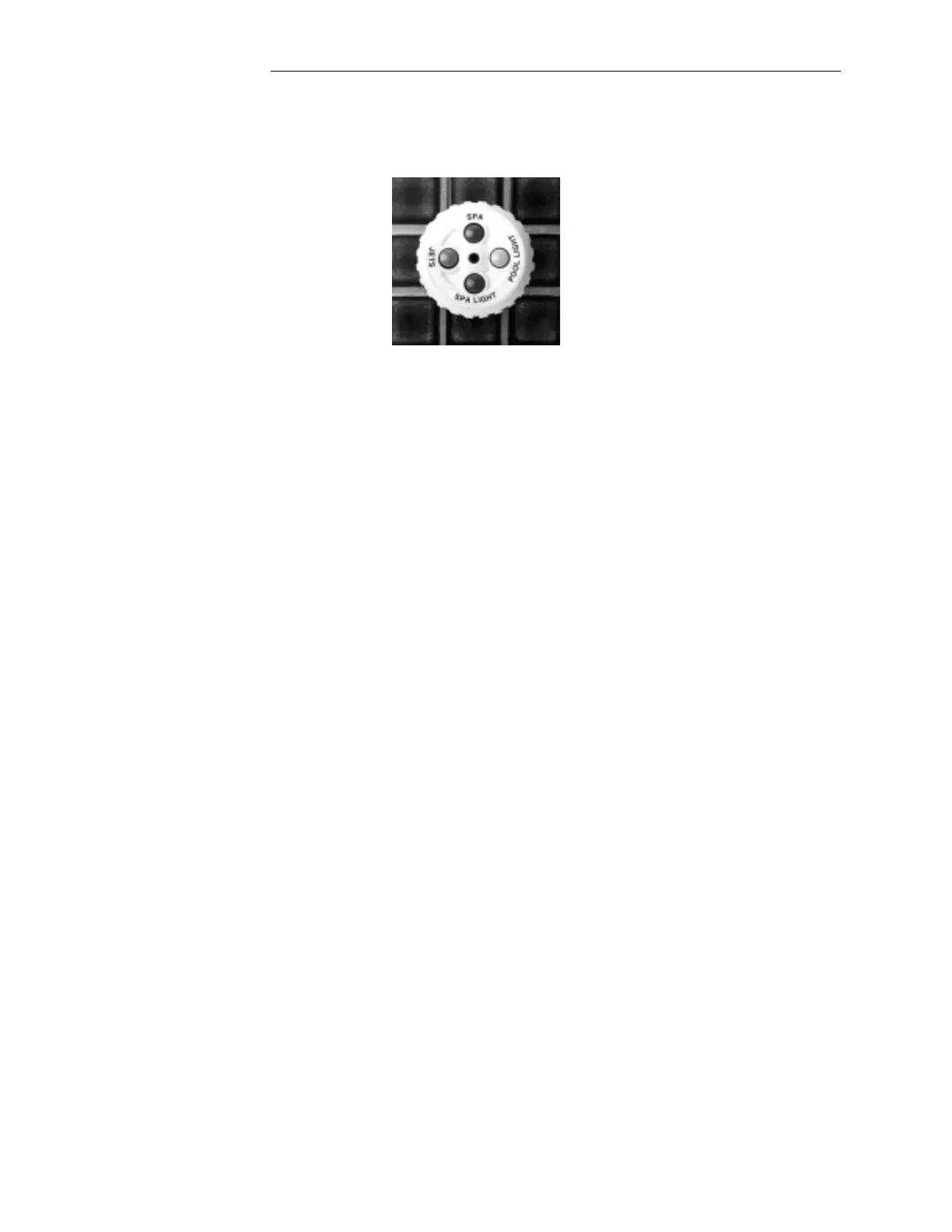

SPA-SIDE REMOTE
SS4-100W
The optional Spa-Side Remote (model SS4-100W) is a double-insulated device which is UL Listed for installation
within 5 feet of the water’s edge. It is typically installed at the tile-line on the spa wall (above water level), or in the
deck within arm’s reach of the spa. If the Spa-Side Remote is to be installed into the wall of a gunite spa, provision
must be made while the spa is being plumbed (See PLUMBING REQUIREMENTS for details):
1. When the spa construction is completed, cut back the 1½” dia. pvc pipe receptacle flush with the spa wall finish
or surface of deck.
2. Screw Mounting Adapter onto Spa-Side Remote, and finger-tighten. Caution: Do not use wrench.
3. Thread Spa-Side Remote cable through conduit to low-voltage compartment of Lx3000.
4. Carefully glue Mounting Adapter into 1½” pvc receptacle using pvc cement. For aesthetic purposes, it is
suggested that the Spa-Side Remote be installed with Red button in the 12 o’clock position.
5. At the Lx3000, identify the 6-conductor cable from the Spa-Side Remote, and cutoff excess cable as necessary.
Strip insulation of each conductor ¼" and connect to appropriate Screw Terminals at bottom of circuit board in
accordance with wiring diagram:
6. Connect Black wire (Switch Common) to GND Screw Terminal.
7. Connect Orange (Status Lamp) to HLMP Screw Terminal.
8. Determine which 4 of the following circuits you wish to control from within the spa, and connect Red (Red
button), Yellow (Yellow button), Green (Green button) and Blue (Blue button) wires to the appropriate Screw
Terminals (see LX3000 CIRCUIT BOARD for details):
• SPA Rotates intake and return valves, and activates filter pump and heater.
• REMF Activates filter pump (normally not used).
• REM1 Activates auxiliary 1 equipment (such as pool cleaner).
• REM2 Activates auxiliary 2 equipment (such as pool light).
• REM3 Activates auxiliary 3 equipment (such as spa light).
• REM4 Activates auxiliary 4 equipment (such as fountain or waterfall).
• REM5 Activates auxiliary 5 equipment (such as jet pump).
• REM6 Activates auxiliary 6 equipment (such as air blower).
• HBST Enables spa heating for a five minute period.
For Spa-Side control of more than 4 pieces of equipment, a second Spa-Side Remote may be installed.
Installation
