Compool Cp3000
30
Lx3000 POWER CENTER

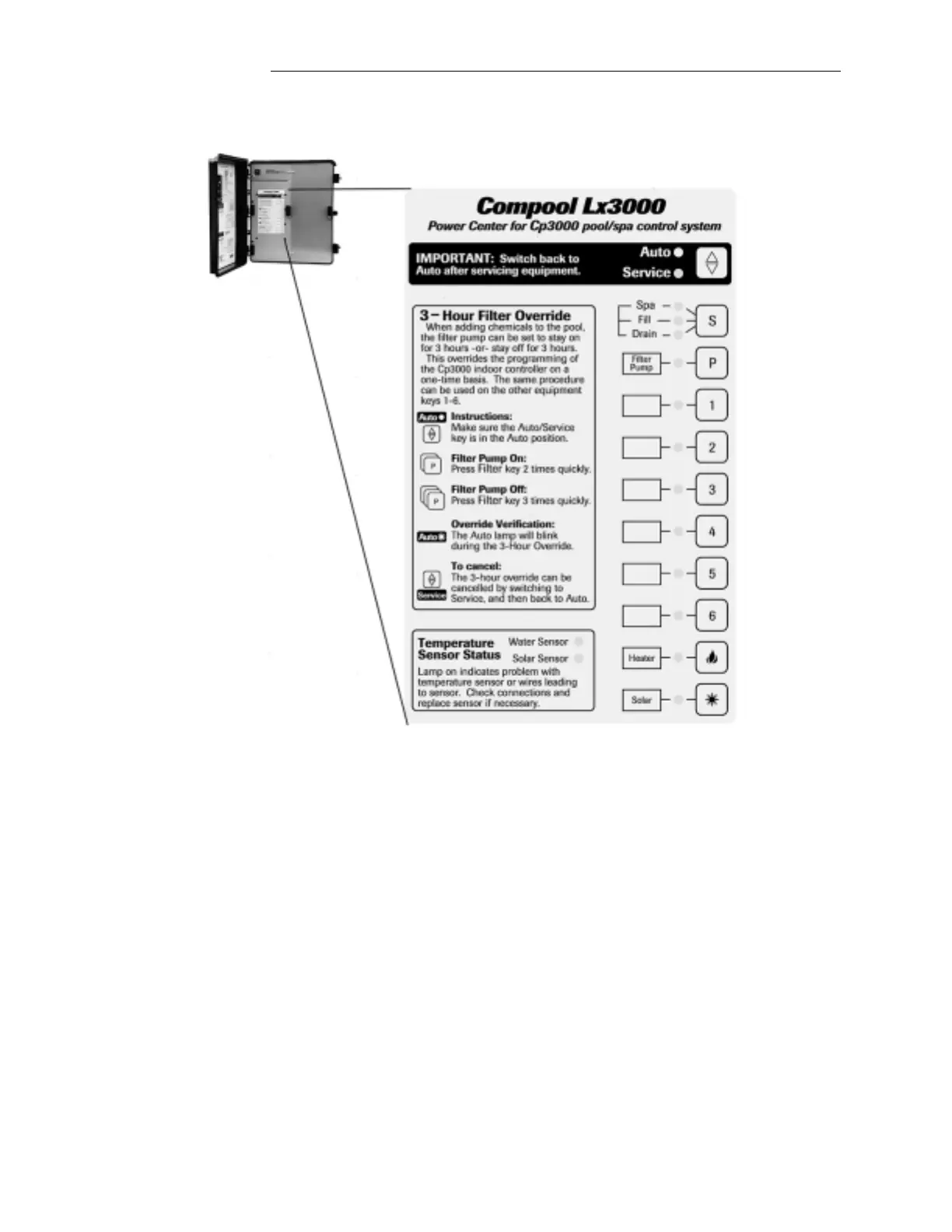

Lx3000 Equipment Service Keys
Located in close proximity to your pool and spa equipment, the Lx3000 Power Center provides your Pool
Serviceperson with manual control of the system without having to gain access to the Cp3000 Controller.
Caution: To prevent possible water damage, the door of the Lx3000 must be kept closed at all times.
There are no user-serviceable components located behind service panel in the right-side compartment. Do not remove
service panel. Refer service to qualified personnel only.
Equipment Service Keys and Status Lamps for all of the equipment are located in the left-side compartment.
AUTO/SERVICE KEY
Pressing this Key will toggle the Control System between “Auto” and “Service” modes:
• Auto: Keep the System in this mode during normal equipment operation. In “Auto” mode, it will not be possible
to manually activate any of the Equipment Service Keys at the Lx3000.
Operating Instructions
