INSTALLATION
PRODUCT PACKAGE
Open the shipping carton and check the contents. If any items are missing or damaged, contact your dealer
immediately.
The package should include the following items:

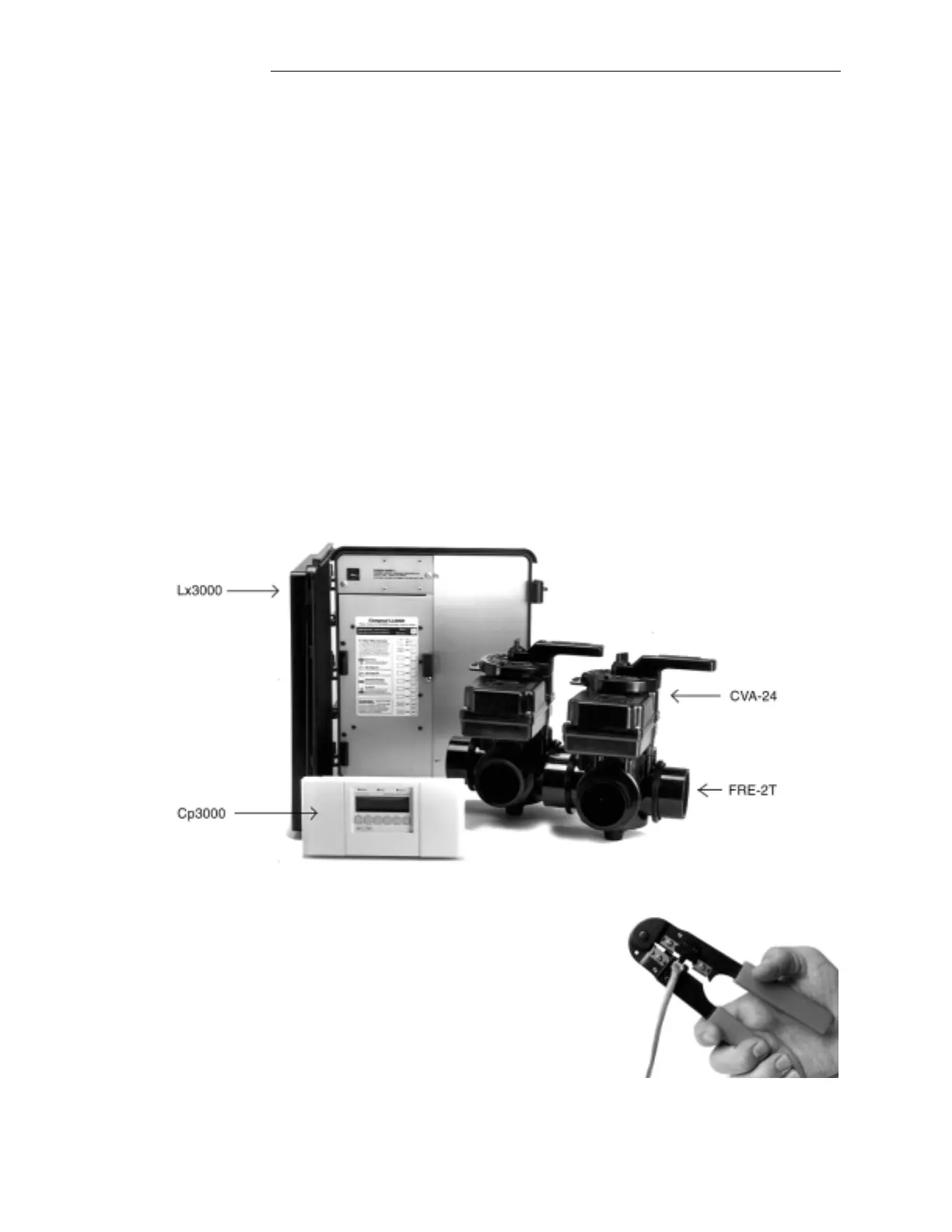

• CP-3000 Controller.
• LX-3000 Power Center.
• CVA-24 Valve Actuators (2 qty).
• FRE-2T 3-Port Freedom Valves (2 qty).
• 6COND Hookup Cable (150 ft.).
• Installation Hardware Kit:
½
” Encloser Screws (4 qty)
1
¼
”
Mounting Screws (3 qty)
Plastic Mounting Anchors (3 qty)
Water Temperature Sensor (w/ Hardware)
2-conductor Hook-up Cable (25 ft.)
Modular Plugs for Communication Cable (3 qty)
Test Cable with Modular Plugs (4 ft.)
SPECIAL TOOLS REQUIRED
1. 3/16” dia. Drill (for mounting Cp3000 Controller).
2. 5/16” dia. Drill (for mounting Water Temperature Sensor).
3. Crimping Tool (model TOOL-6) for mounting Connectors to Hookup Cable.
TOOL-6
