HIGH VOLTAGE WIRING
SUB-PANEL
At the equipment site, install an electrical sub-panel with separate breakers for each load. Circuit breakers should be
readily accessible to the pool/spa user, but installed at least 5 feet from the water’s edge.
Note: It is possible to install system without a sub-panel.

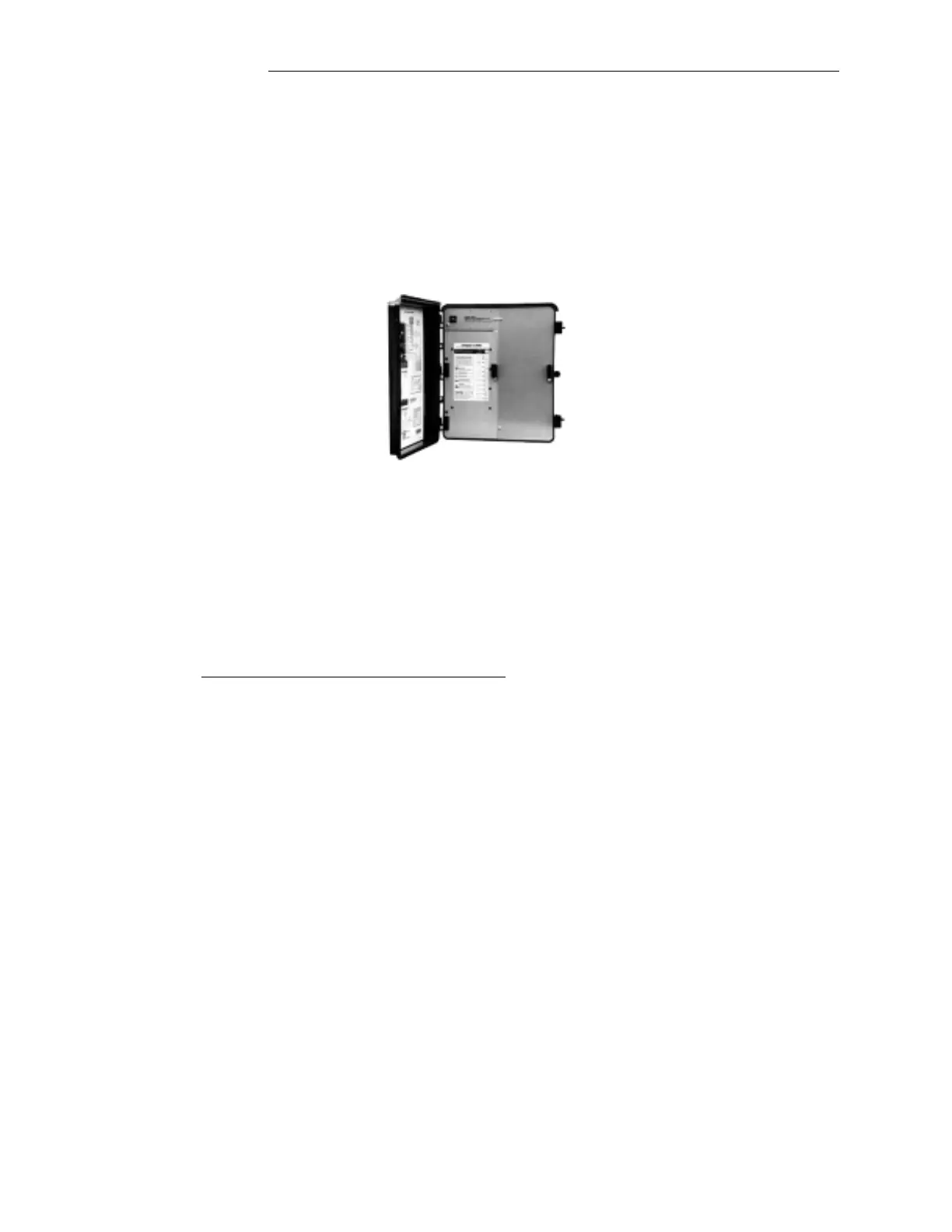

Lx3000 POWER CENTER
Lx3000
1. Select a convenient location to mount the Lx3000 Power Center. Ensure that the location is greater than 5 feet
from the water’s edge and no further than 15 feet from any motorized valves (otherwise Valve Actuator cables
will need to be extended).
2. Mount the Lx3000 on a flat surface using appropriate screws through the three external mounting points located
on the side of the enclosure.
Caution: Do not drill and mount from inside the enclosure
.
3. Remove the three service panel screws in right-side of Lx3000 to expose the high voltage compartment.
4. Knock-out the appropriate holes at bottom of enclosure to facilitate conduit mounting. Screw terminals are
provided for high voltage connections.
