Compool Cp3000
6
SYSTEM POWER
1. Provide a separate circuit breaker to power the system. Either 115 or 230 VAC can be used (115 VAC is
preferable). The Cp3000 system draws less than 1 amp.
Caution: Incorrect system wiring will cause permanent damage to the transformer.
2. Verify that the breaker will open all ungrounded supply conductors to comply with section 422-20 of the
National Electrical Code, ANSI/NFPA 70-1987.
3. Run appropriate wires from circuit breaker to high voltage compartment of Lx3000, and connect to top terminal

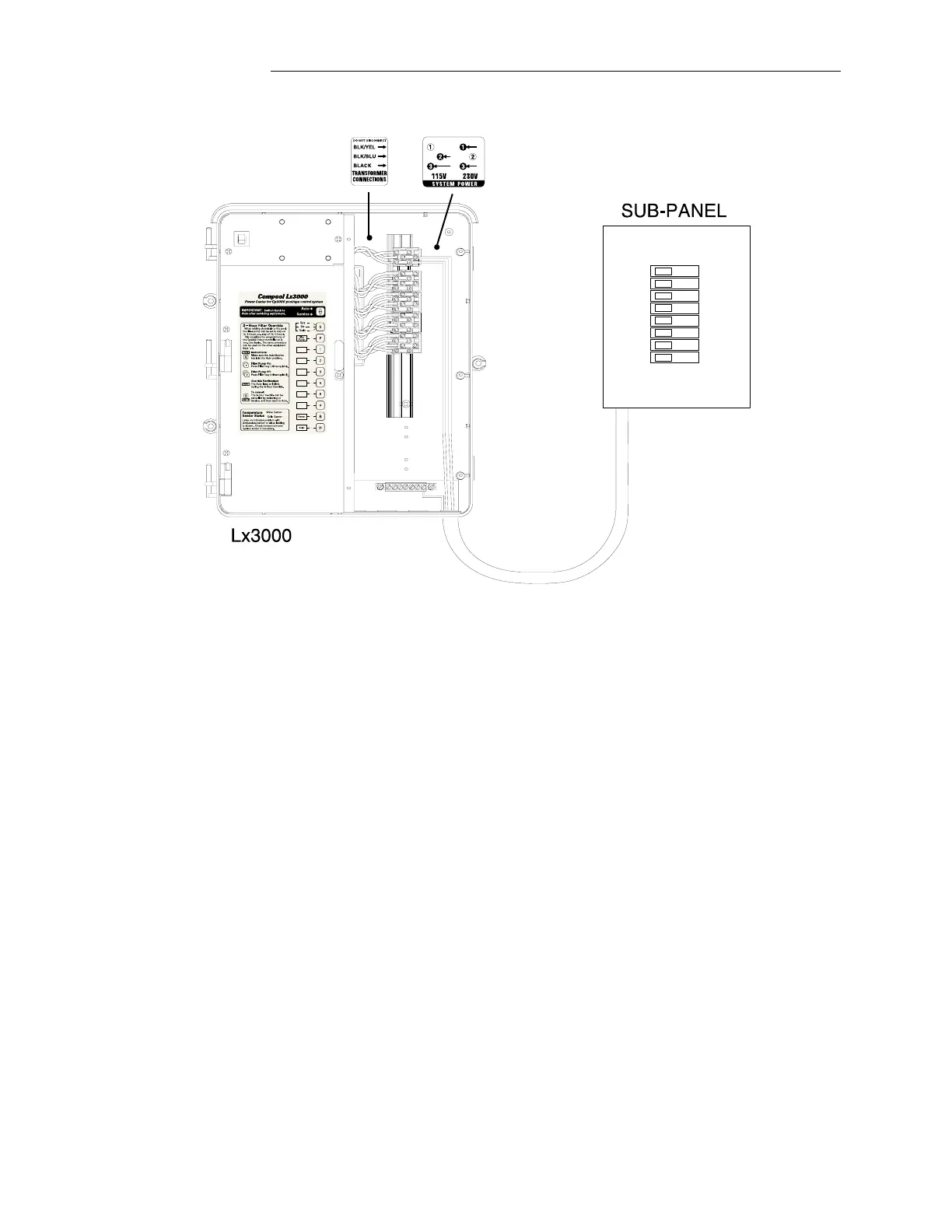

block in accordance with wiring label, which is marked “SYSTEM POWER”. The diagram above shows system
wired for 115 volts.
4. For 115 VAC, connect to Screw Terminals #2 and #3.
5. For 230 VAC, connect to Screw Terminals #1 and #3.
Installation
