Compool Cp3000
18

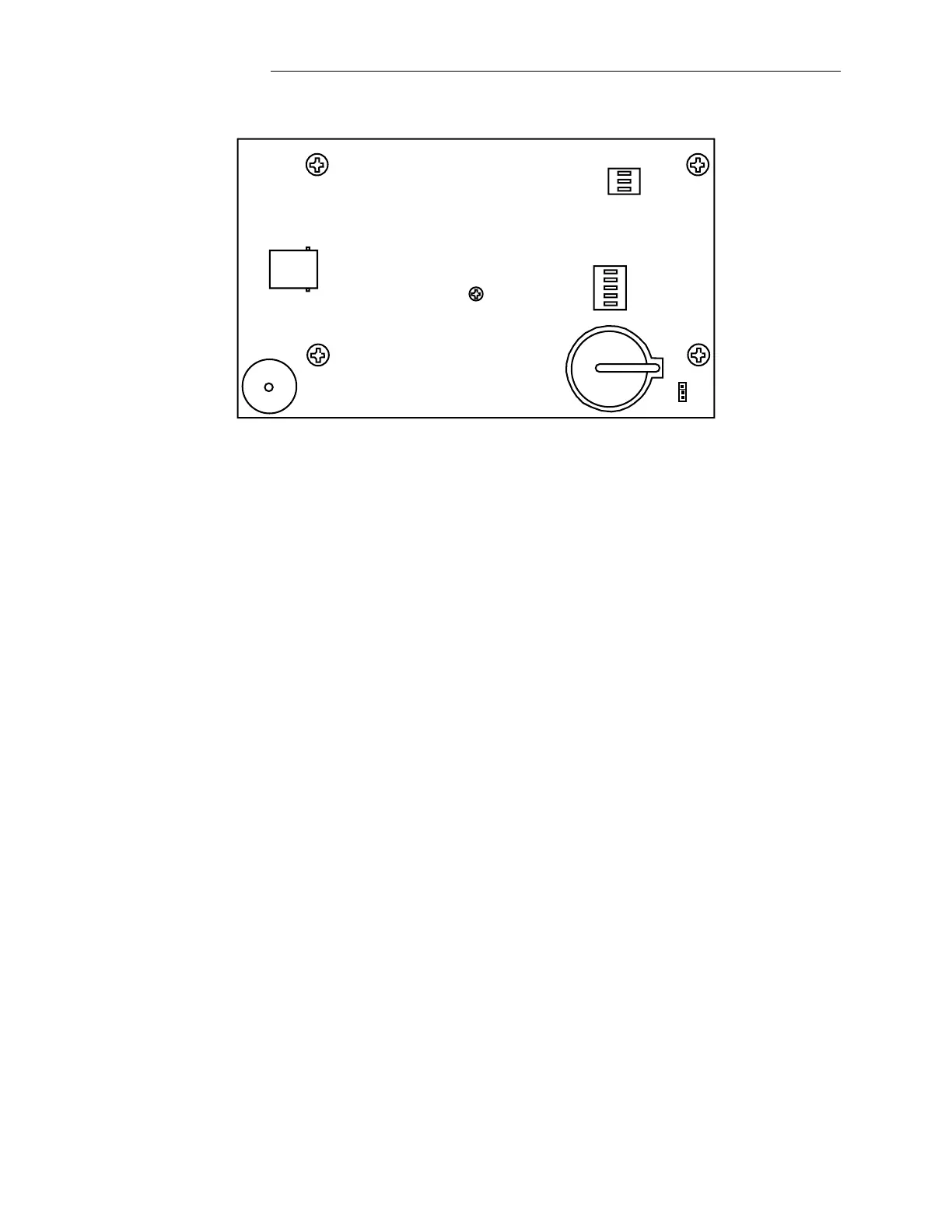

Cp3000 CIRCUIT BOARD
To enable the following options, refer to the Cp3000 circuit board diagram shown above.
SPA WATERFALL CONTROL SWITCH
For systems where spa water level is higher than that of the pool, it is possible to use Circuit #2 to rotate the return
valve to spa return position, thus creating an overflow (waterfall effect) from the spa into the pool. This effect will
cease during spa circulation or pool cleaner operation.
To enable this feature, it is necessary to adjust the 3-position S1 Program Switch, which is located at top right-side of
Cp3000 circuit board. Using the corner of a small screwdriver or other blunt instrument, slide Switch #3 to the ON
position.
CUSTOM CLOCK OPTIONS
The standard Cp3000 Controller is provided with the appropriate equipment interlock and safety delays, assuming that
Aux1 Circuit is being used to activate a pool cleaner pump. It is, however, possible to eliminate the interlocks and
delays for custom applications (such as where there is no pool cleaner).
To achieve this, it is necessary to modify the 5-position S2 Program Switch which is located at center right-side of the
Cp3000 circuit board. Use the corner of a small screwdriver or other blunt instrument to slide the appropriate
Switch(es) to the OFF position:
Switch #1: Filter Pump Off Delay (fireman’s switch).
Switch #2: Aux1 (Pool Cleaner) On Delay.
Switch #3: Aux1 Pool Cleaner/Filter Interlock.
Switch #4: Spa/Filter Interlock.
Switch #5: Spa/Aux1 (Pool Cleaner) Interlock.
If the control system does not incorporate a pool cleaner pump, Switches #2, #3 and #5 can be turned OFF, and the
Aux1 Circuit can be used for another auxiliary function.
SPA-SIDE COUNTDOWN TIMER
A built in 30 minute countdown timer is set at the factory for Auxiliary Circuits 5 and 6. These circuits usually operate
a jet pump and blower, and are controlled by the Spa-Side Remote.
To disable this feature, it is necessary to modify the 3-position S1 Program Switch which is located at center right-side
of the Cp3000 circuit board. Use the corner of a small screwdriver or other blunt instrument to slide the appropriate
Switch(es) to the OFF position. Switch #1 will actuate Aux6; and Switch #2 will actuate Aux5.
LINE
TO LX
S1
3
2
1
S2
CS
FS
FC
CD
FD
COMPOOL 10881A
PART No PC-CP3000
RESET
NORMAL
ON
Installation
