2.1 TraceCase
9
•
•
•
•
•
•

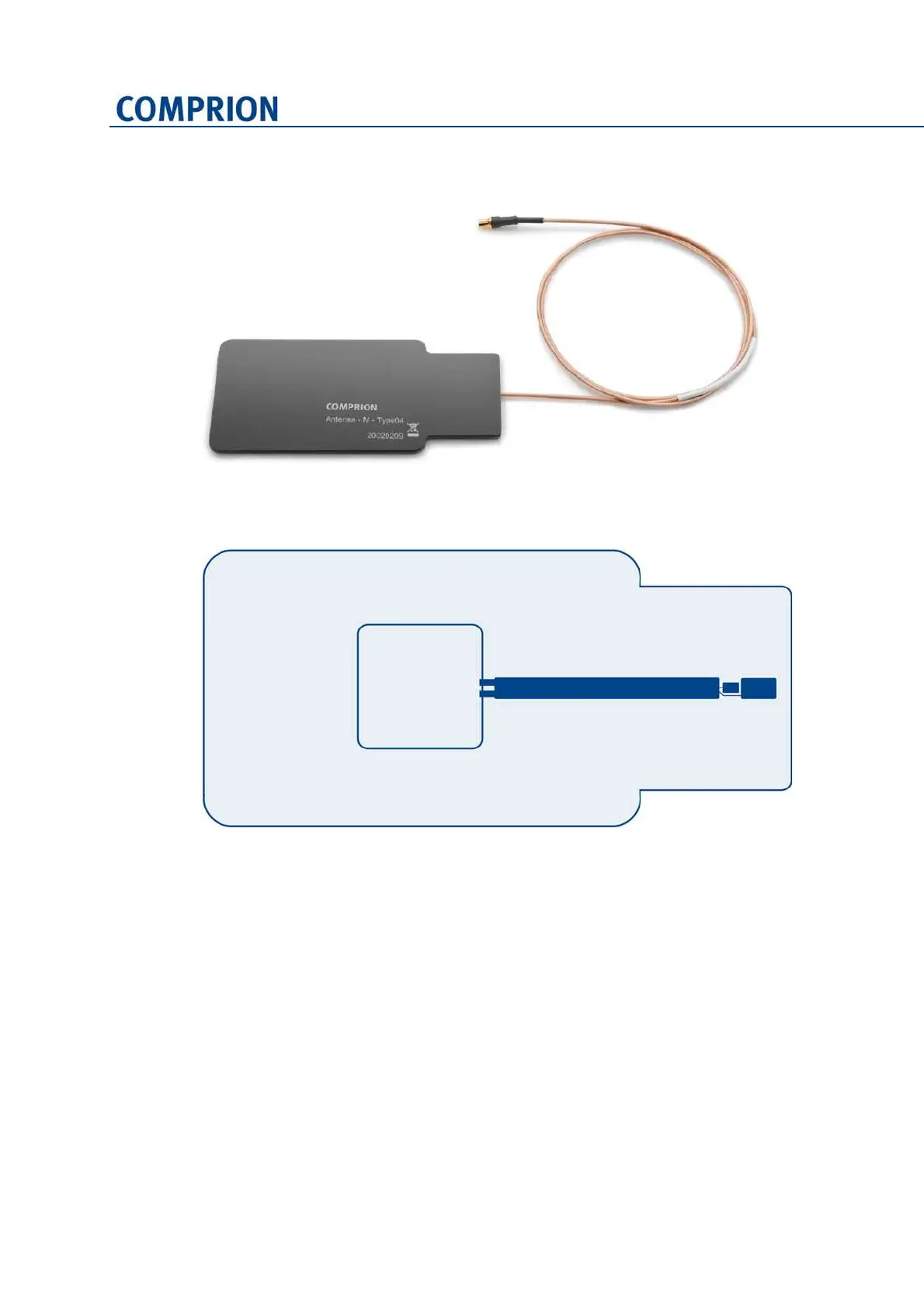

Figure 2-4 Antenna-M-Type 04
Figure 2-5 Inside Antenna-M-Type 04
Antenna-M-Type 05
Antenna‐M‐Type 05 has an antenna geometry of 10 x 24 mm and 4 turns. It is appropri‐
ate for testing smartphones. It has the following properties:
■ Passive antenna
■ 4 turns
■  24 mm x 10 mm
■ Antenna area:  240 mm
2
■ Cable length: approx. 85 cm
