2.1 TraceCase
7
2.1.1 Scope of Delivery

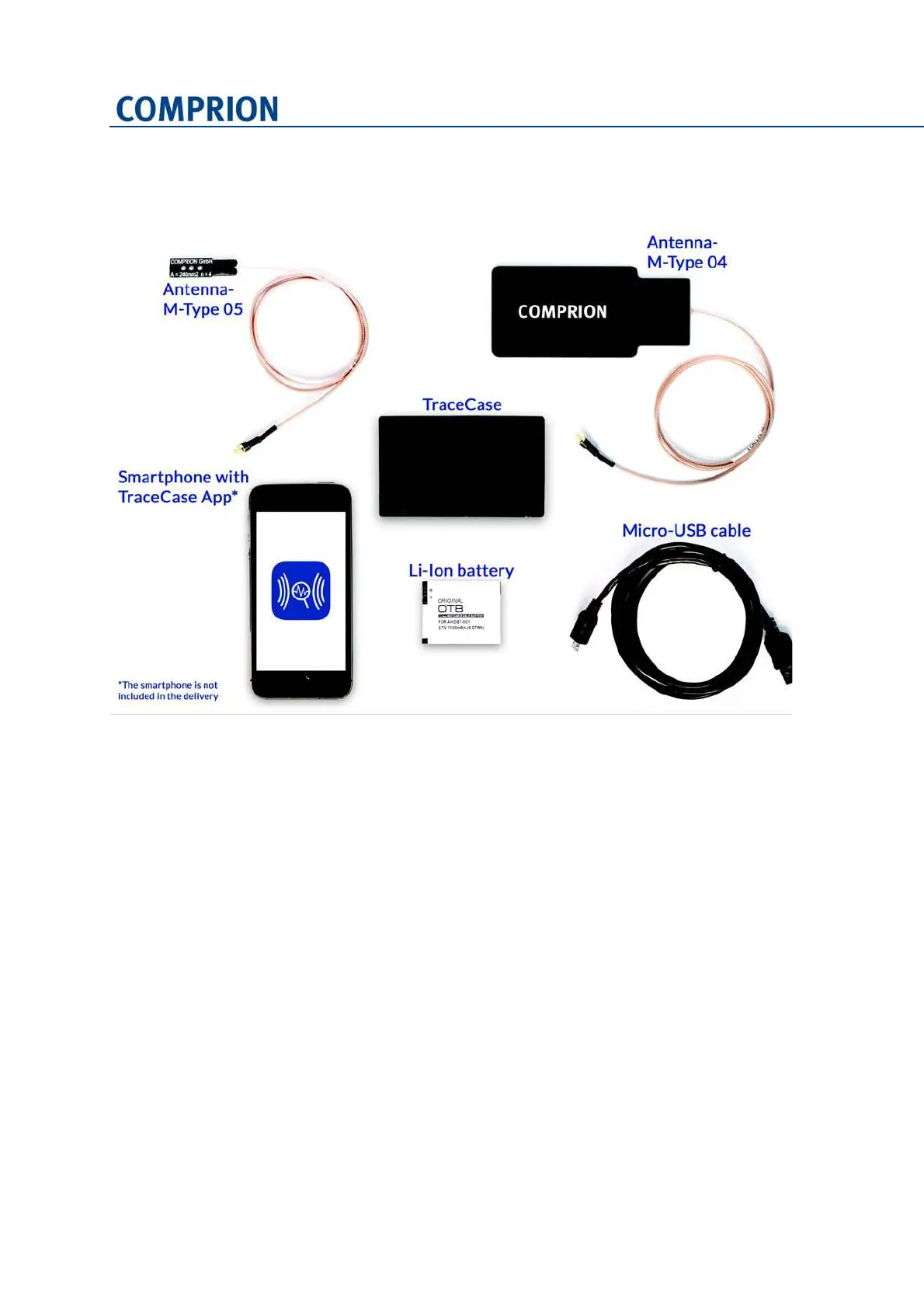

Figure 2-3 TraceCase scope of delivery
TraceCase comprises the following components:
The device itself with rechargeable battery and microUSB cable
Monitoring antennas: Antenna-M-Type 04 and Antenna-M-Type 05 are
included in the TraceCase scope of delivery.
Antenna-M-Type 06 and
Antenna-M-Type 07 are sold separately
[TraceCase App] on your smartphone (not included in the delivery package)
[TraceCase Viewer] software on a host computer (not included in figure)
[TraceCase Toolbox] software for remote tracing on a host computer (not
included in figure)
2.1.2 Technical Data
Dimensions & Weight
Approx. 94 x 58 x 14 mm
Weight: 75 g
