Statox 503 Control Module
Page 44 of 46 Issue 10 / 2018
Technical Data
Product name: Statox 503 Control Module
Manufacturer: COMPUR Monitors GmbH & Co. KG, D-81539 Munich
Power supply: 24 ± 2 VDC max. 200 mA
Power consumption: max. 5 W
Current rating: max. 8 A on communication bus
Operating temperature: -10° C to +60° C (14°F to 140°F)
Storage temperature: -30°C to +60°C (-22°F to 140°F)
Pressure: 900 to 1100 hPa
Humidity: 0% to 99% r. H. (non condensing)
Display: 2 x 8 digit LCD with backlight
Housing: Polyamide, protection class IP 20
Connections: 24 terminals, can take cable diameters up to 2.5 mm
2
Relays: 2 x Alarm, 1 x System failure
Relays contact: 250 VAC, 8A
min. burdon ≥ 12V, 10 mA (contact material: silver-nickel 90/10)
System failure relay: In normal operation active (coil active), make contact (NO) is closed
Analog output: 0 mA in case of system failure
2 or 4 mA in service mode, programmable
4 - 20 mA in measuring mode, tolerance ± 2 % at -10°C to + 50°C
22 mA at over range
Max. Burdon: 700 Ohm
Installation: 35 mm DIN-Rail
CE-Marking: EN 61326-1:2013
Functional safety: SIL 2 capability according to IEC 61508
Weight: 275 g

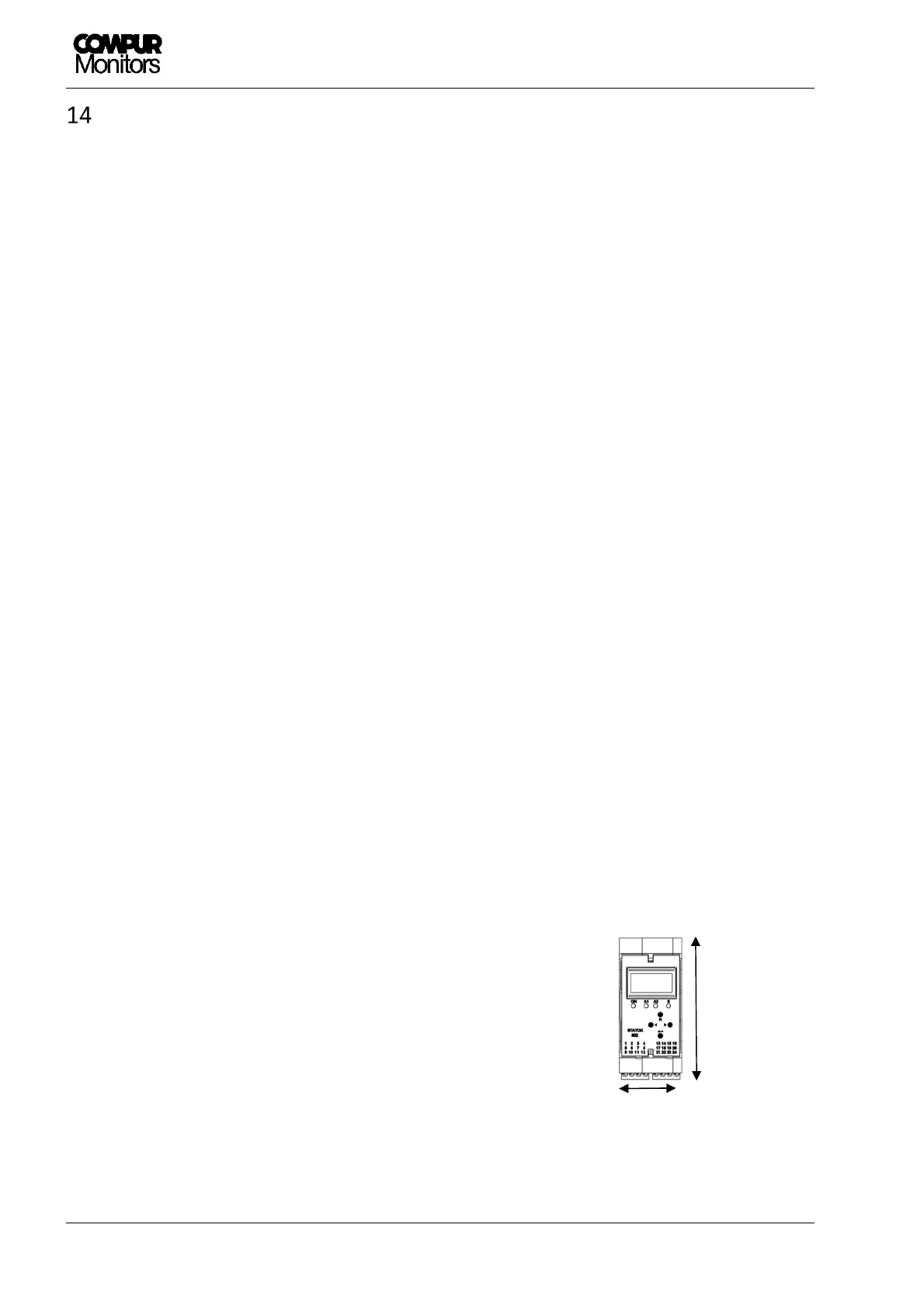

Dimensions (H x W x D): 45 x 103 x 115 mm (1.77 x 4.06 x 4.52 “)
1.77 “
4.06 “
