Installing an Aftercooler (Optional)
(continued)

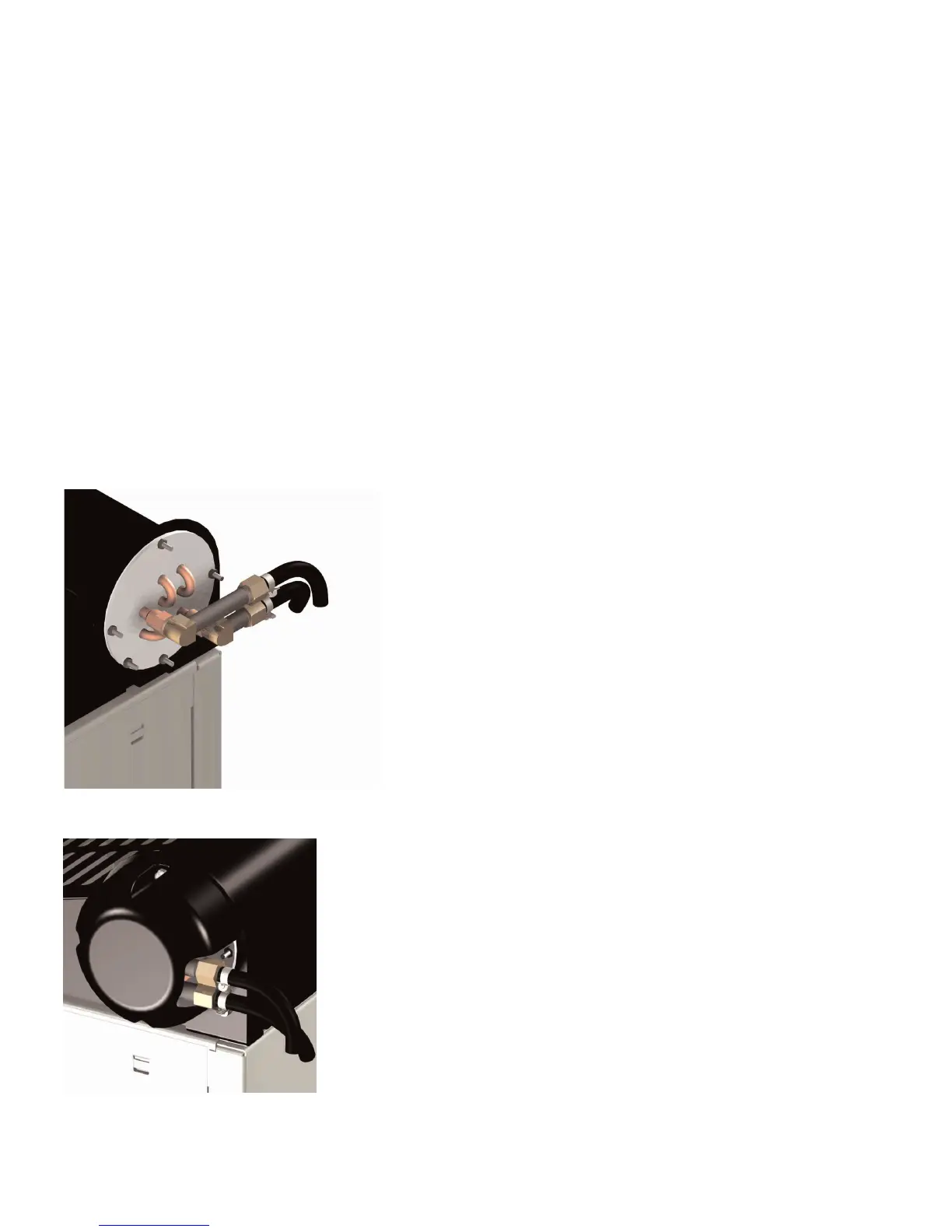

5 Secure the aftercooler assembly in the aftercooler housing using the five
screws.
NOTE: If an optional flow control was ordered with the aftercooler,
see Appendix E "Optional Flow
Control"
for information on connecting the water supply.
6 Connect the water supply line to the aftercooler inlet. If a manual shut off
valve is used, it should be mounted on the inlet line.
7 Connect the water discharge or return line to the aftercooler outlet.
8 Install the plastic aftercooler cap over the water connections.
✐
