Appendix l B-1

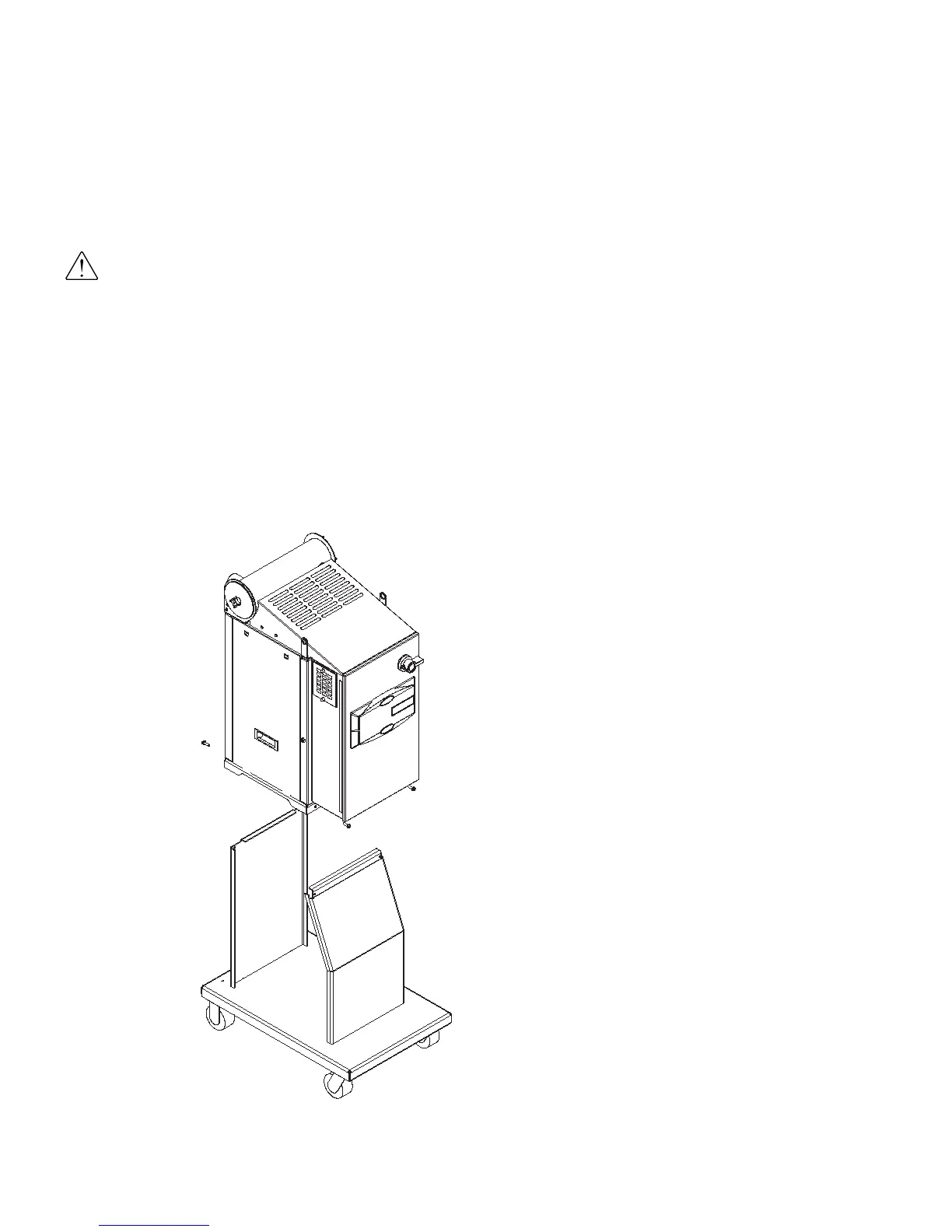

Mounting the Dryer on a Floor
Stand
Caution: to prevent accident and injury, lift the dryer onto the floor stand using a hoist
and lifting lugs provided.
1 Lift the dryer onto the floor stand. Lift using a hoist and the lifting lugs pro-
vided.
2 Align the four bolt holes on the bottom of the dryer with the four bolts holes
on the top of the floor stand.
3 Bolt the dryer to the stand using the four 5/16”-18 bolts provided.
Tools for
installation:
❒ 3/8” and 9/16”
wrench
❒ Hoist
