Trending
To access the Trending screens:
1 Press the Trending button from the Home screen.

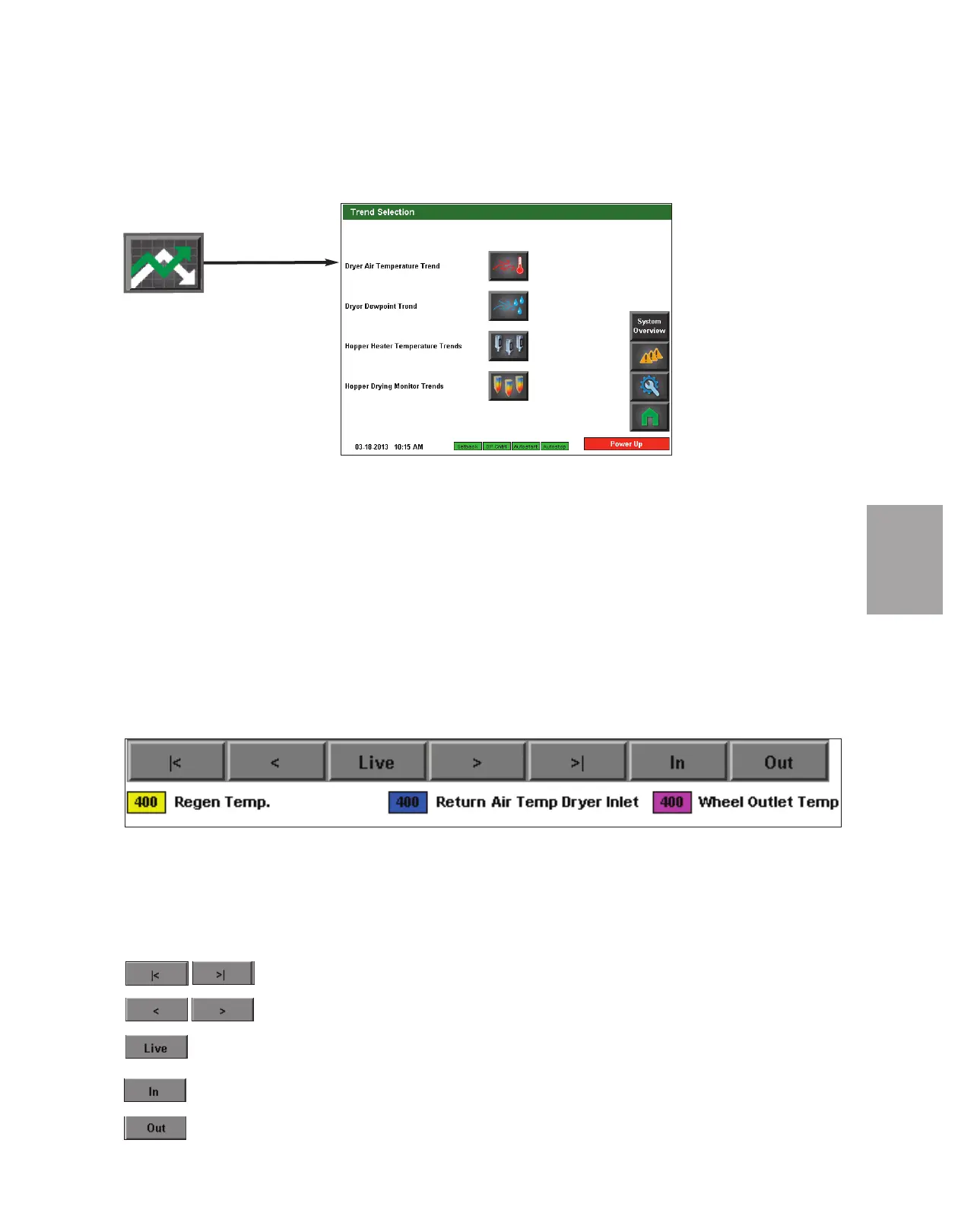

The Trend Selection screen allows you to choose which trending screens you would like to
view. From this screen, you can choose to view:
• Dryer Air Temperature Trend
• Dryer Dewpoint Trend
• Hopper Heater Temperature Trends
• Hopper Drying Monitor Trends (if equipped)
Trending Screen Navigation
Each trending screen will allow the user to scroll through data. When the screen first
opens, it will be displaying a two (2) hour window, and will have saved the data for the last
seven (7) day period. The scroll buttons near the bottom of the screen allow the user to
scroll back to an earlier time or forward to the present time, or jump immediately to live
data. The user can also touch any point on the trend line and the display will show the data
reading, date, and time for that spot in the trend.
Scroll to the beginning or end of the record.
Scroll back or forward one point at a time (30 seconds).
Move to live data.
Zoom in (Instead of seeing 2 hours of trend in the window, you will see 1 hour,
30 minutes, 15 minutes, etc.)
Zoom out (Instead of seeing 2 hours of trend in the window, you will see 3
hours, 4 hours, 5 hours, etc.)
NOTE: Depending on your DC-T
configuration, and system securi-
ty, different users may not be
able to access the trending
screens. Also, if you do not have
DM3-e enabled, or the Drying
Monitor equipment at your drying
hoppers, you will not be able to
view Drying Monitor Trends.
✐
(continued)
✒
TIP: A dashed line or a
break in the trend line
represents a time where
power to the dryer was
off (either due to shut-
down or to power outage).
