SPECIFICATIONS
Thermolator TW Series UGH025-0504
2-6 DESCRIPTION
CABINET STYLE REFERENCE
Heater Voltage Selection Single Zone Dual Zone
Direct Injection (DI)
9, 12, 18 or 24 kW 208, 230, 460, 575 A B
36 kW 230 C D
36 kW 460 or 575 A B
48 kW 230, 460, 575 C D
Closed Circuit (CC)
9 or 12 kW 208, 230, 460, 575 A B
18 or 24 kW 208, 230, 460, 575 C D
Isolated Circuit (IC)
9, 12, 18 or 24 kW 208, 230, 460, 575 C D
A
B
C
D

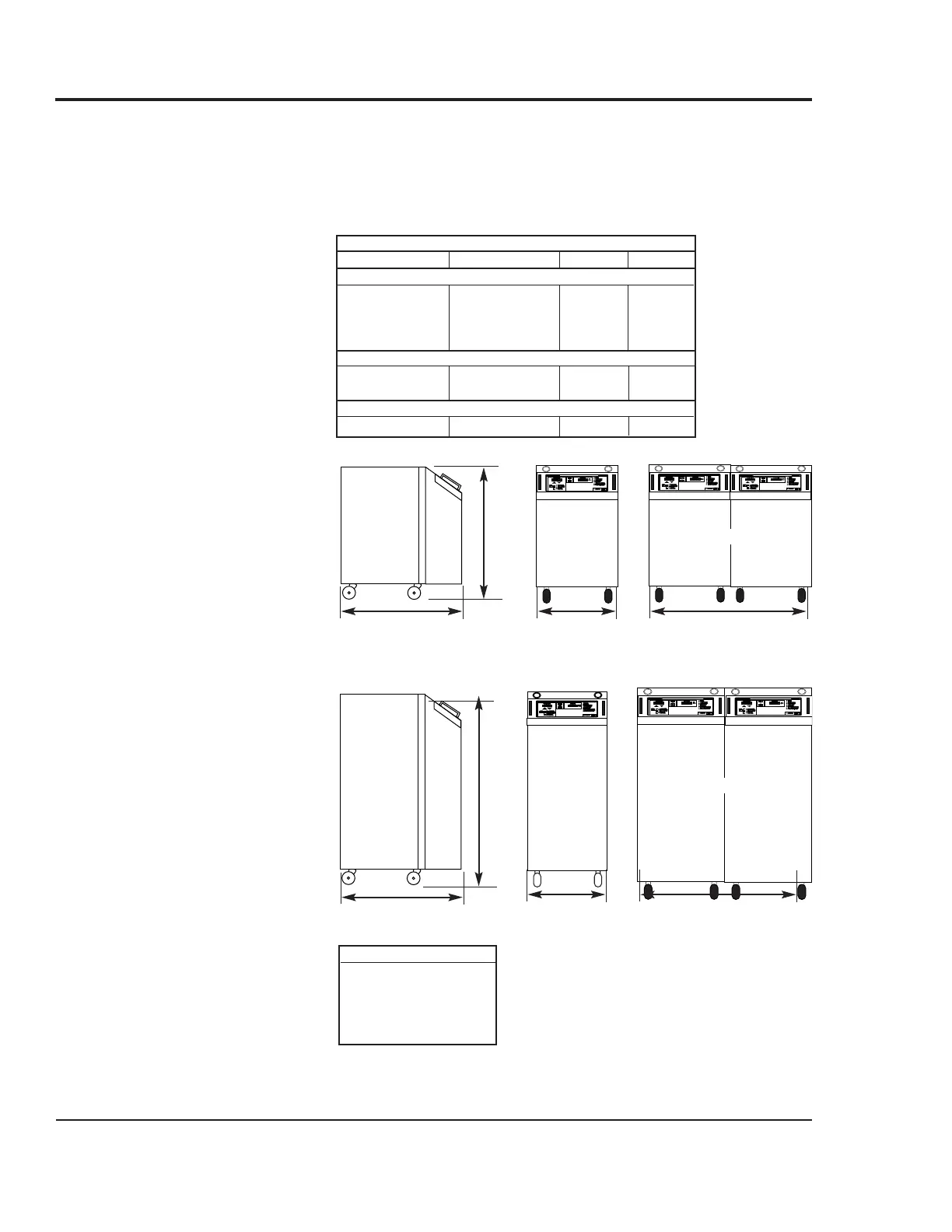

Dimensions and performance characteristics vary according to
the model, voltage and components selected. See the cabinet
style reference chart to determine dimensional information for
your specific model. Additional technical information can be
found in the Appendix of this User Guide.
Height
Width
Single Zone
Width
2- Zone
Depth
Width
Single Zone
Width
2- Zone
Height
Depth
NOTE: Dual zone models
have common wiring and
cooling water plumbing.
WATER CONNECTIONS
All models
NPT inches (female)
To/From process 1.25
Cooling water in/out 0.75

Conair Thermolator TW-1 Specifications

General

Brand	Conair
Model	Thermolator TW-1
Category	Control Unit
Language	English
