ConMed E9000 - Page 43

35
CONTROLLER
OPERATION
A

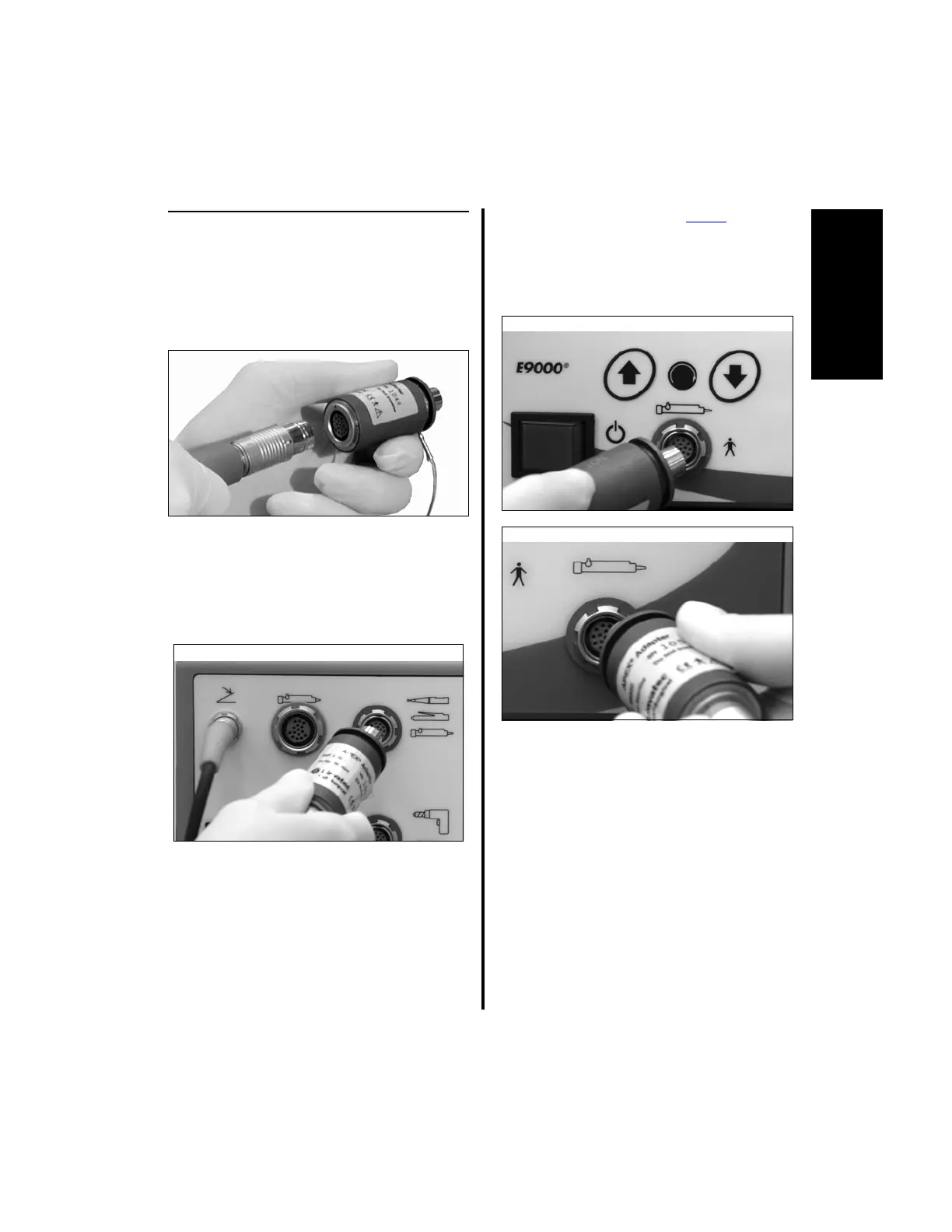

2.1.2.4 Connecting the Mini-Driver
(K500) Handpiece
1. Plug the cord connector of the K500
Mini-Driver Handpiece into the female end
of the K501 Mini-Adapter.
(a) If using the Advantage controller,
position the red dot on the male end of
the K501 Mini-Adapter upward and
insert it into either the Port 2 (top) or
Port 3 (bottom) receptacle.
(b) If using the E9000 or Power
Pro
controller, position the red dot on the
male end of the K501 Mini-Adapter
upward and insert it into the handpiece
receptacle.
Advantage Controller
E9000 Controller
PowerPro Controller
