Spur Isolator - CSI350
Installation
1. Fit the unit in position.
2. Connect the unit according to the diagram below.
Notes:
A Spur Isolator must be used when making spurs from the analogue addressable panel loop. Without this
unit, the self addressing features of the system will not function correctly.
No addressing of the interface is required. See control panel operation for details.

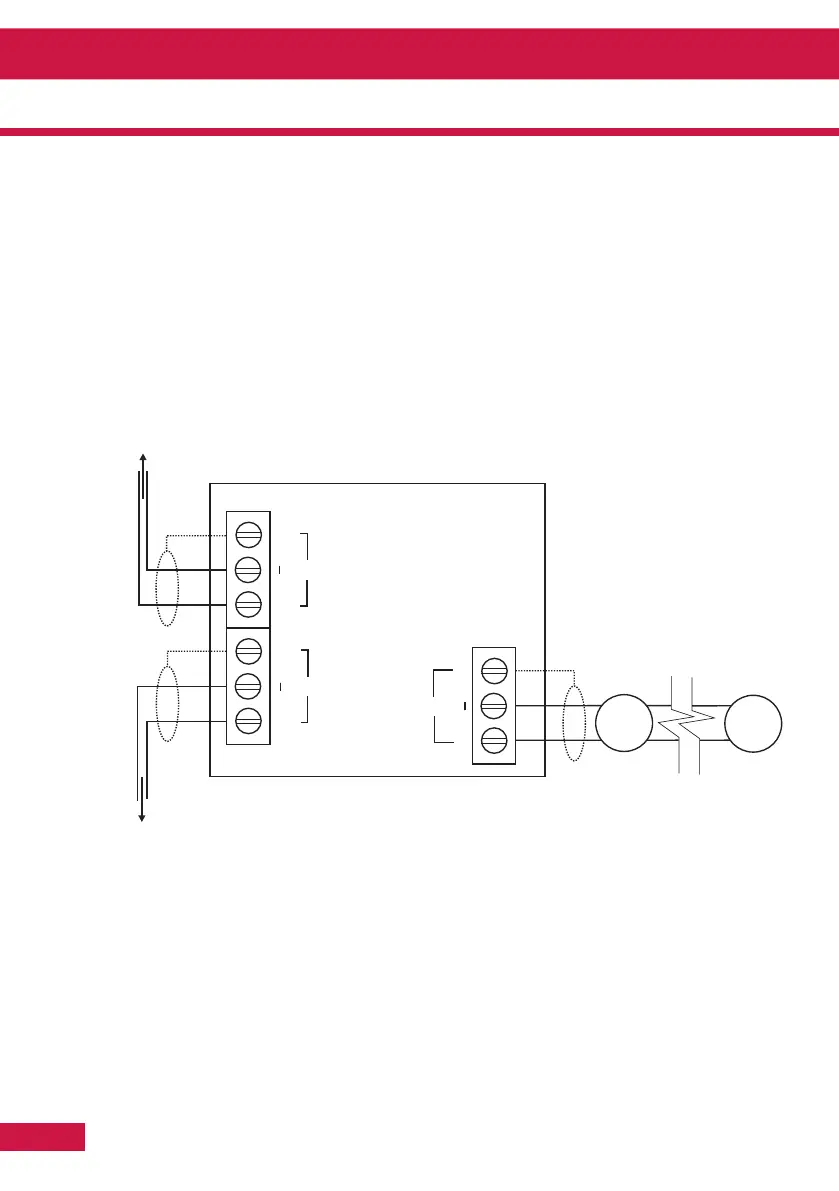

Standard Connections
Notes:
1. Only connect cable screen to its adjacent earth terminal.
2. For maximum spur length / load see BS5839 Pt 1:2002.
3. This unit can only be used with Cooper CAB300 detector bases and compatible detectors.
Section 5 - Appendix
Analogue
addressable
loop
No end of line
resistor required
Out
In
Spur
m
+
m
+
m
+
