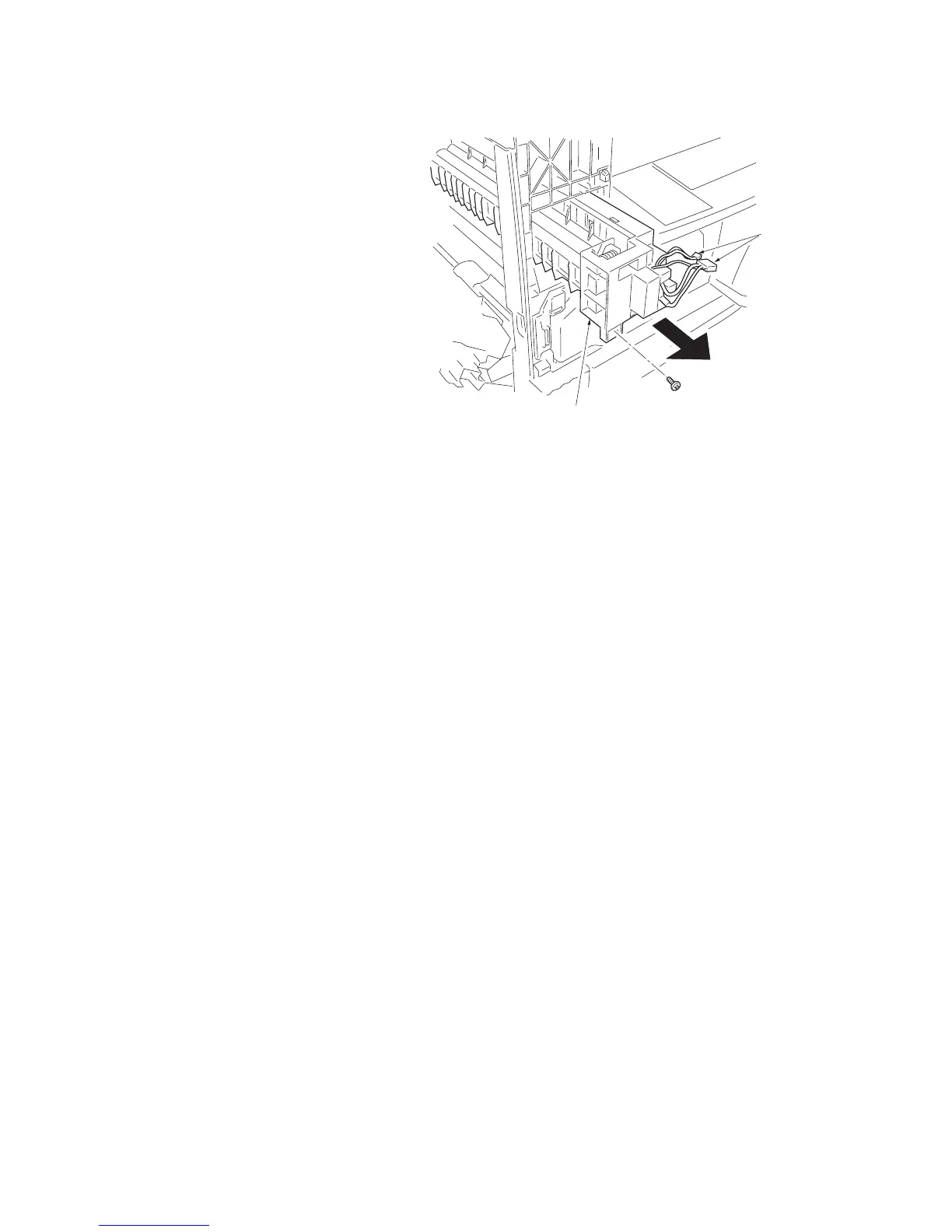

Figure 1-6-69a
5. Remove the screw and detach the two con-
nectors and then remove the fixing unit from
copier.
6. Replace the fixing unit and refit all the
removed parts.
Figure 1-6-69b
Fixing unit
Connectors
