Copystar CS-1620 - Electrical Parts Layout; Pcbs

2C9
2-2-1
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout
(1) PCBs

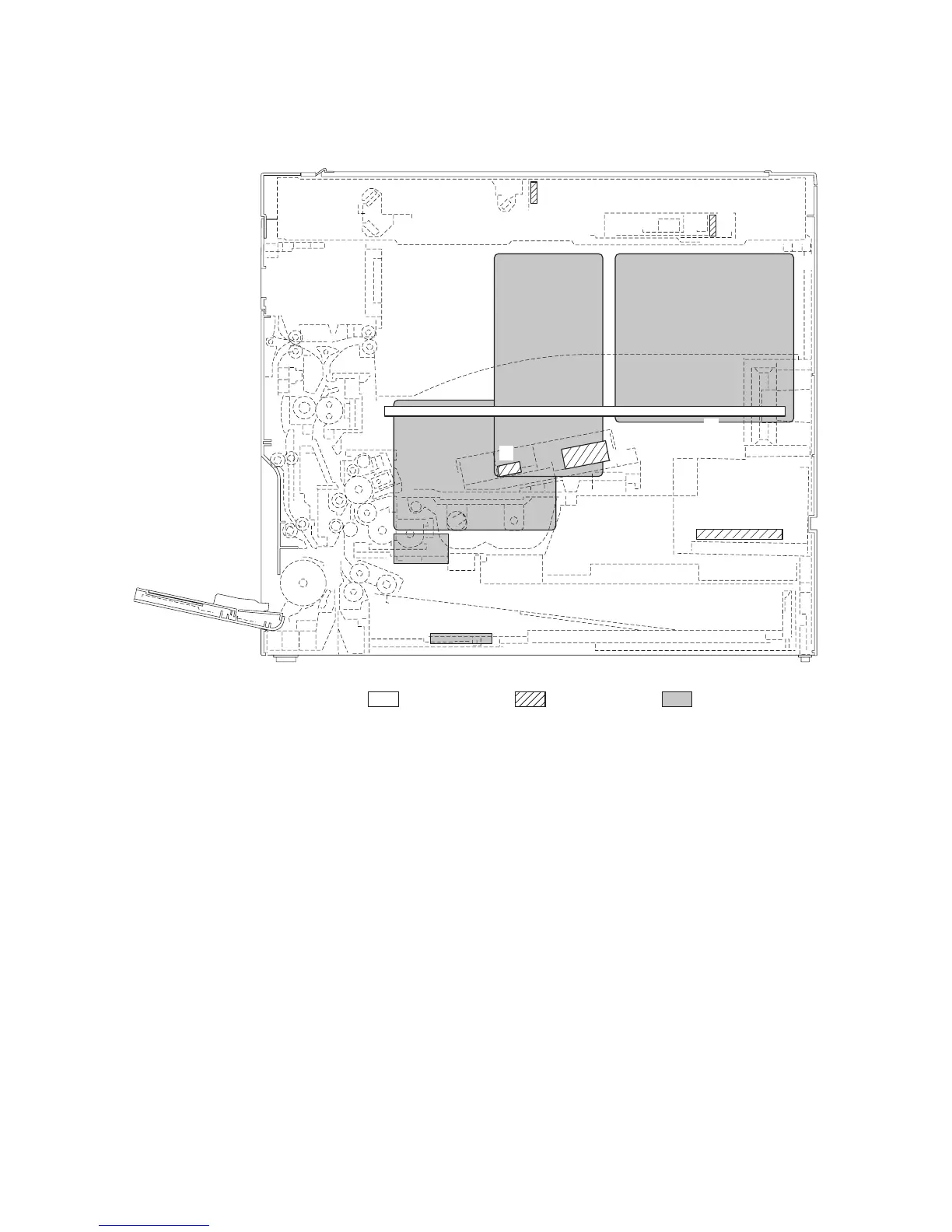

Figure 2-2-1 PCBs
1. Engine PCB (EPCB) .................................... Controls the other PCBs, electrical components and optional devices.
2. Main PCB (MPCB) ....................................... Controls the operation panel and laser scanner unit.
3. Power source PCB (PSPCB) ....................... Generates +24 V DC and 5V DC; controls the fixing heater.
4. High-voltage PCB (HVTPCB) ...................... Main charging. Generates high voltages for transfer and high voltages for
separation.
5. Inverter PCB (INPCB).................................. Controls the exposure lamp.
6. CCD PCB (CCDPCB) .................................. Reads the image off originals.
7. Operation unit PCB (OPCB) ........................ Consists of the operation keys and display LEDs.
8. Drawer PCB (DPCB).................................... Controls the electrical components.
9. APC PCB (APCPCB)................................... Generates and controls the laser light.
10. PD PCB (PDPCB)........................................ Controls horizontal synchronizing timing of laser beam.
11. Registration motor PCB (RMPCB)............... Controls the registration motor.
Machine front
Machine inside
Machine rear
5
6
1
9
11
10
3
8
7
4
2
