Copystar CS-1620 - Motors

2C9
2-2-3
(3) Motors

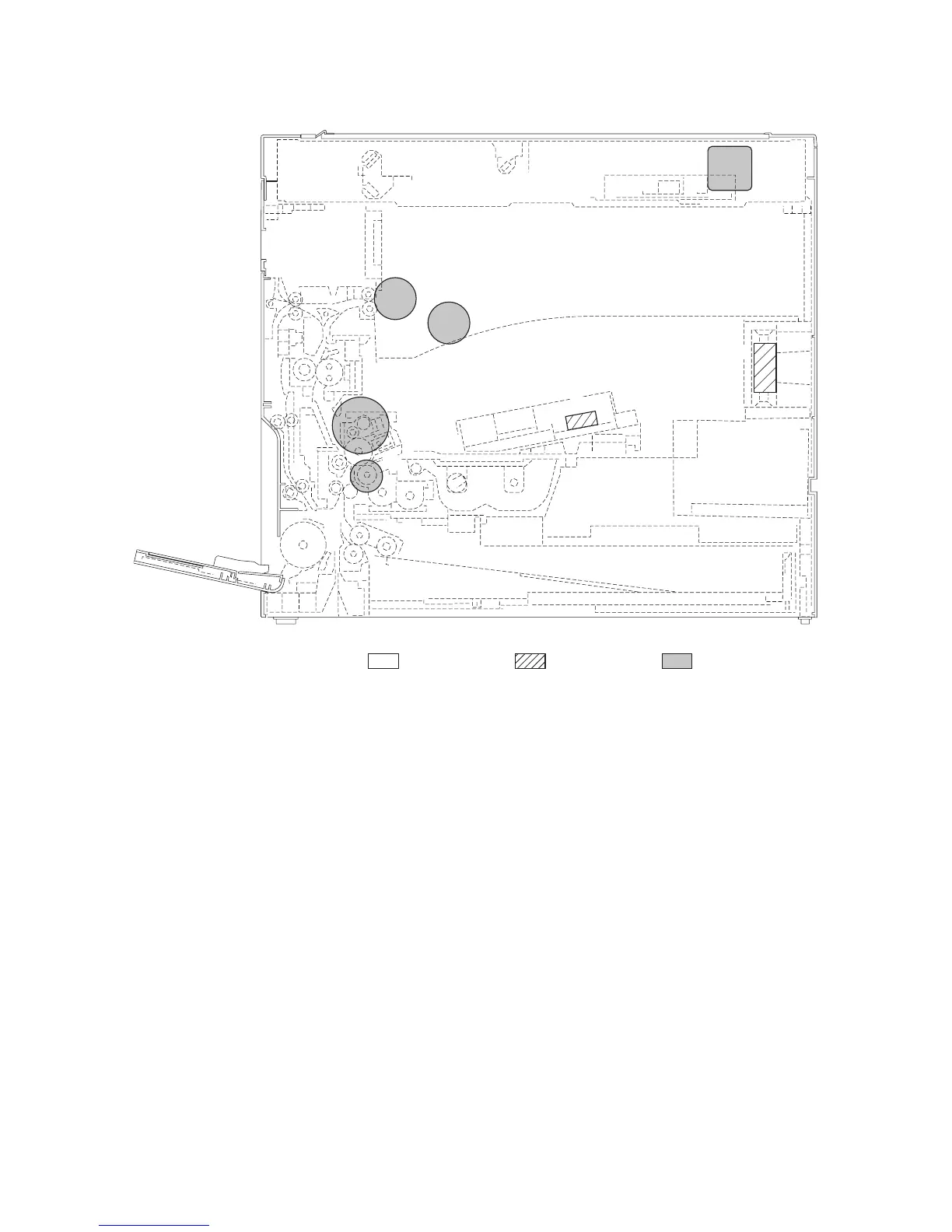

Figure 2-2-3Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Scanner motor (SM)..................................... Drives the optical system.
3. Exit motor (EM)............................................ Drives the exit section.
4. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
5. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
6. Polygon motor (PM)..................................... Drives the polygon mirror.
7. Registration motor (RM)............................... Drives the registration roller.
2
3
4
6
5
1
7
Machine front
Machine inside
Machine rear
