Copystar CS-1620 - Detaching and Refitting the Press Roller

2C9
1-6-39
(2) Detaching and refitting the press roller
Follow the procedure below to replace the press roller.
Procedure
1. Remove the fixing unit (see page 1-6-38).

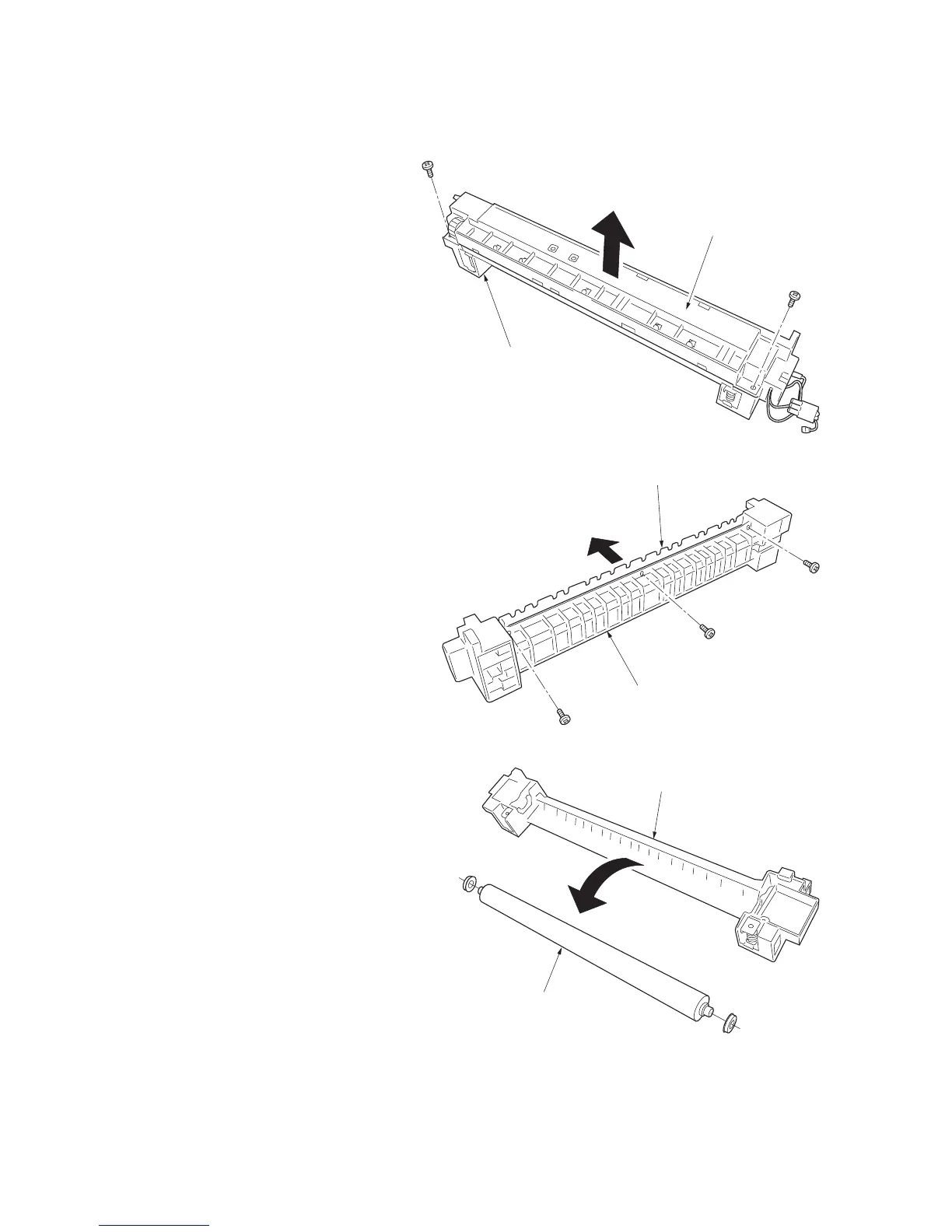

2. Remove the two screws and then separate
the fixing right unit and left unit.
Figure 1-6-70
3. Remove the three screws holding the press
roller guide from fixing right unit.
Figure 1-6-71
4. Remove the press roller from the fixing right
unit.
5. Replace the press roller and refit all the
removed parts.
Figure 1-6-72
Fixing left unit
Fixing right unit
Press roller guide
Fixing right unit
Press roller
Fixing right unit
