2C9
1-6-40
(3) Detaching and refitting the fixing heater M and S
Follow the procedure below to replace the fixing heater M and S.
Procedure
1. Remove the fixing unit and separate the fix-
ing right unit and left unit (see pages 1-6-38,
39).
2. Remove the two screws holding each of the
fixing heater M and S on the front and rear
of the fixing left unit.

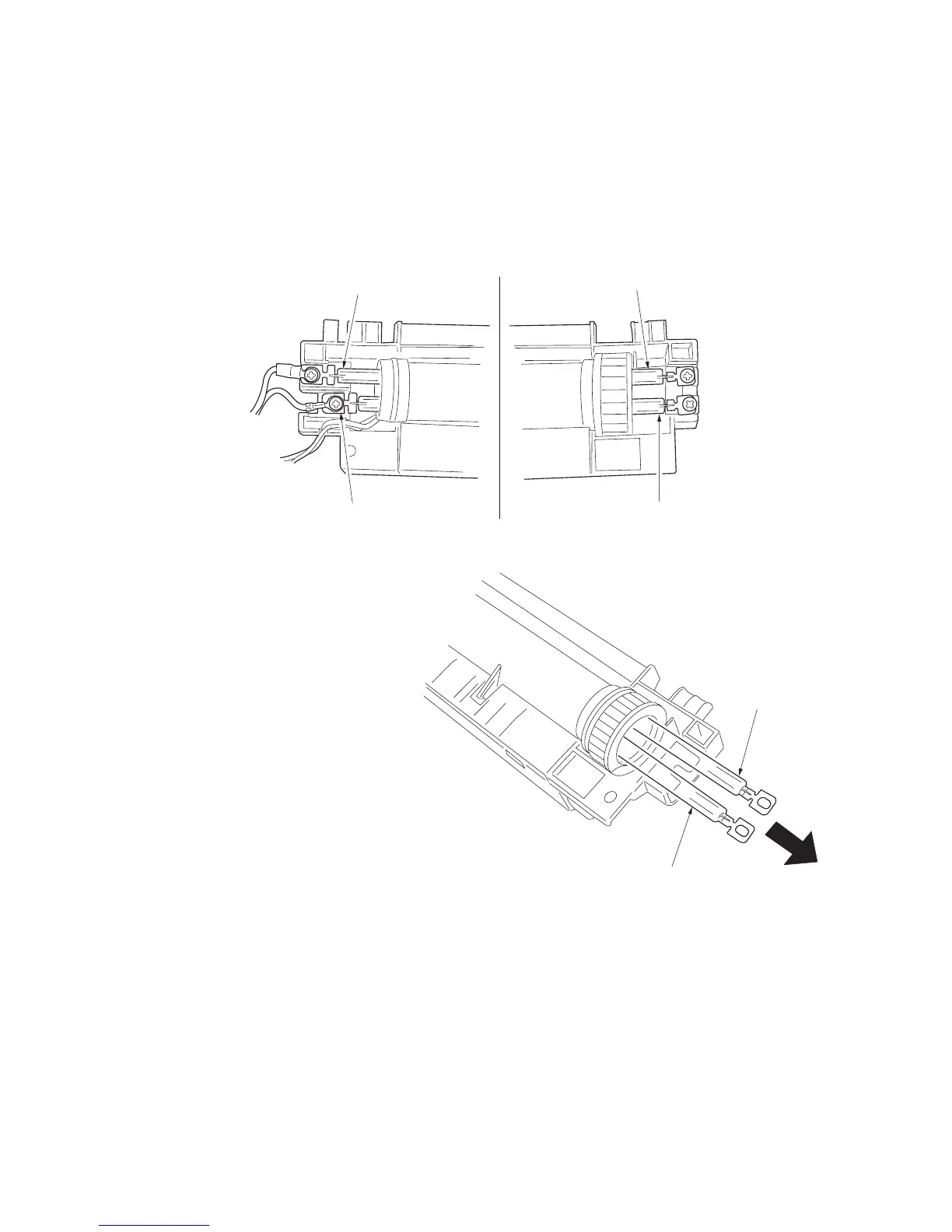

Figure 1-6-73
3. Pull out the fixing heater M and S from the
fixing left unit.
4. Replace the fixing heater M and S, and refit
all the removed parts.
Figure 1-6-74
Fixing heater M
Fixing heater M
Fixing heater S
Fixing heater S
Fixing heater S
Fixing heater M
To Next Page
