Cosman G4 - Back Panel Layout

Cosman G4 Radiofrequency Generator Service Manual (SPI 11291 Rev A)

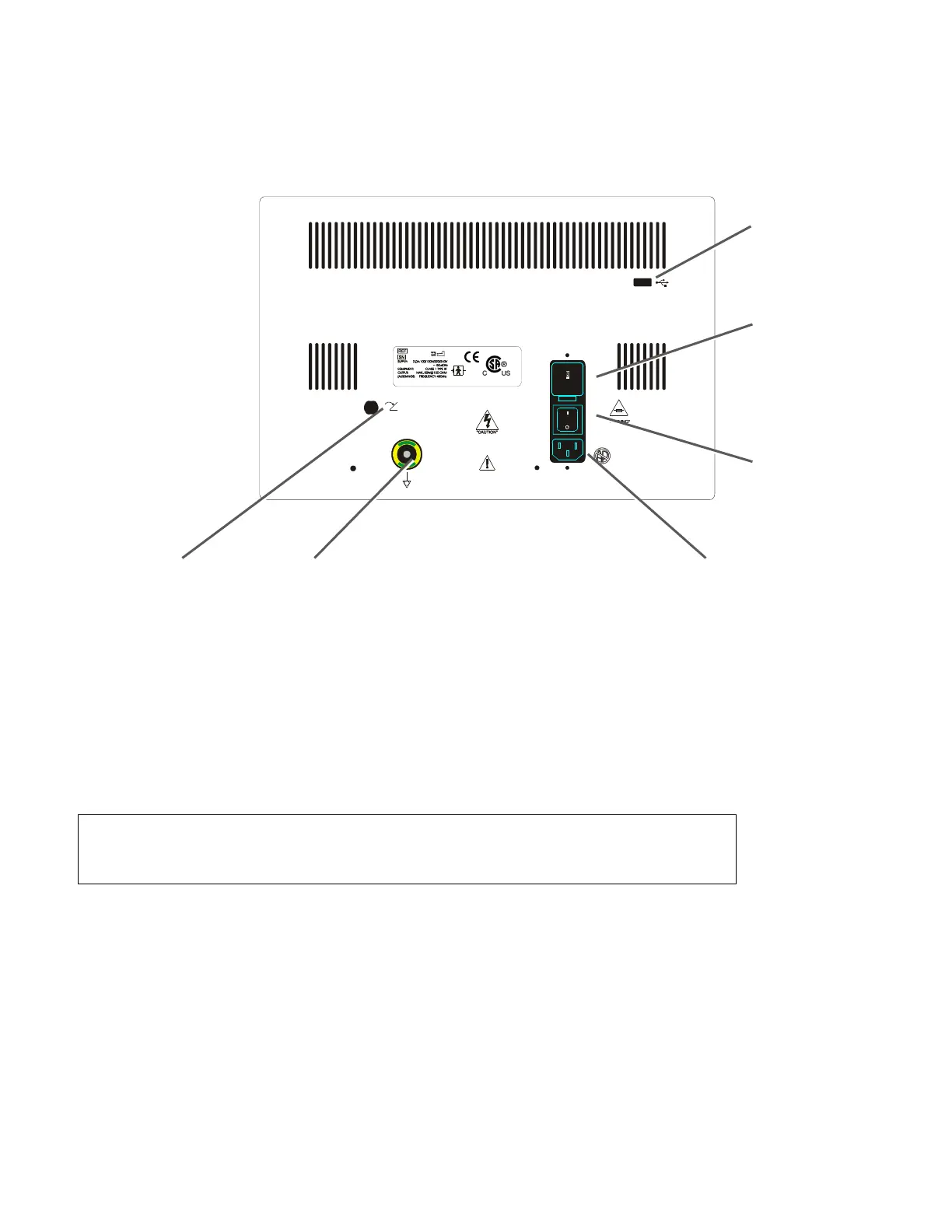

2.2 Back Panel Layout
USB Connection: A
printer or external USB
disk.
ttach
Electric Shock Hazard
DO NOT REMOVE COVERS
No User Service able Parts
RISK OF FIRE.
REPLACE FUSE AS MARKED.
T2AL250V
100/120/220/ 240VAC ~50/60 Hz
DANGER
Explosion risk if used with
flammable anesthetics.
Risque D’Explosion. Ne Pas
employer en presence
d’anesthesiques inflammables.
COSMAN MEDICAL , INC. Burlington, MA 01803 USA
RFG-4
Fuse box and Mains AC
Voltage Selection:
• 100 Vac
• 120 Vac
• 220 Vac
• 240 Vac
Mains Power Switch
Footswitch
Connection
Equipotential
Connection
Mains AC Power
Cord Connection
Notes:
• Footswitch Connection: If the optional Footswitch is connected it will function as the Start button
when pressed and the Stop button when released in Stimulation, Thermal RF, and Pulsed RF
modes. All other functions of the unit remain the same.
• Equipotential Connection: This connection may be used to tie the chassis ground of different pieces
of equipment together.
WARNING: When connecting any non-medical peripheral equipment to this device,
it must be ensured that the equipment combination meets the requirements of
IEC 60601-1-1.
Section 2
